Roland

Roland XS-1HD Multi-Format Matrix Switcher

R 41,995.00
R 41,995.00
Tax included. Shipping calculated at checkout.

XS-1HD

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Compact Table-Top Matrix Switcher
  • 4 x HDMI Inputs
  • 4 x HDMI Outputs
  • Frame Synchronizer and Scaler on Inputs
  • Resolutions up to WUXGA and 1080p
  • Operational Modes: Matrix, Split, Switch
  • Built-In 8-Channel Mixer
  • Stereo RCA Inputs & Outputs + Headphone
  • RS-232 Remote Control, USB Memory Input
  • Includes Power Adapter

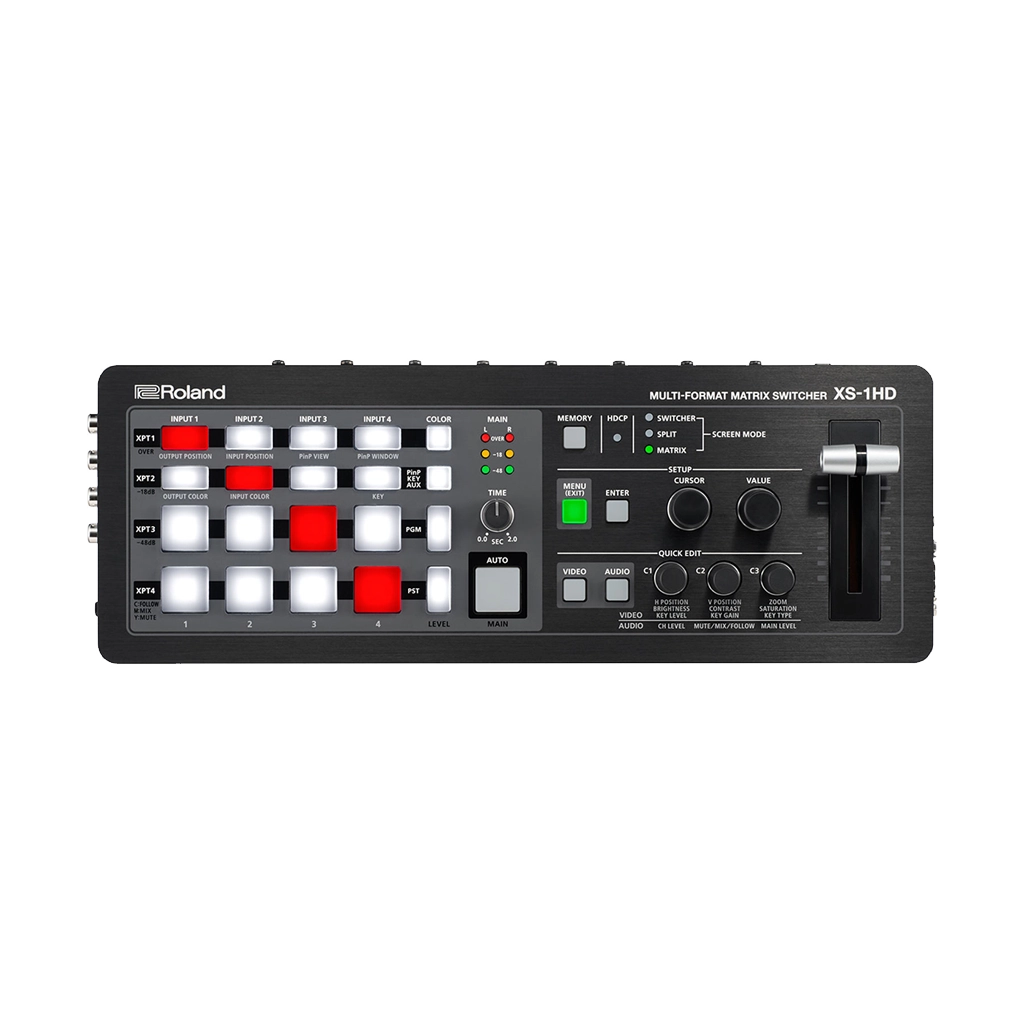

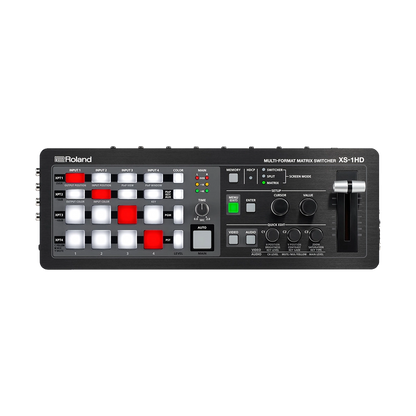

    The Roland XS-1HD is a versatile and compact table-top matrix switcher that's the size of a 13€ laptop, equipped with 4 HDMI Inputs/Outputs with capable resolution up to WUXGA/1080p with its high-quality 4:4:4/10-bit processing. The Roland XS-1HD system also offers a frame synchroniser and a scaler on all the inputs, and three operation modes that enables you to many effects such as the matrix mode, switcher mode and the split mode. The unit also integrates a built-in eight-channel digital audio mixer in order to handle audio from four individual HDMI signals and even stereo analog input to be mixed; a built-in EDID emulator and also being HDCP compliant is a bonus for video productions at live events.



    MAIN FEATURES

    • A table-top matrix switcher that's the width of a 13” laptop, equipped with four HDMI inputs and outputs
    • High-quality 4:4:4/10-bit processing at up to WUXGA/1080p
    • Frame synchronizer and scaler on all inputs
    • Three operation modes Matrix Mode allow switching of 4 sources to any of 4 outputs
    • Switcher Mode allows PinP, key-compositing, and dissolve transitions
    • Split Mode allows PinP of up to three inset windows
    • Built-in eight-channel digital audio mixer handles audio from four HDMI signals and stereo analog input
    • Built-in EDID emulator, and HDCP-compliant
    • Still images can be loaded from a USB flash drive

    • Roland XS-1HD Multi-Format Matrix Switcher
    • AC Power Adapter
    • Power Cord

    Video
    Processing4:4:4 (Y/Pb/Pr, RGB)/10 bits
    4:2:2 (Y/Pb/Pr)/10 bits

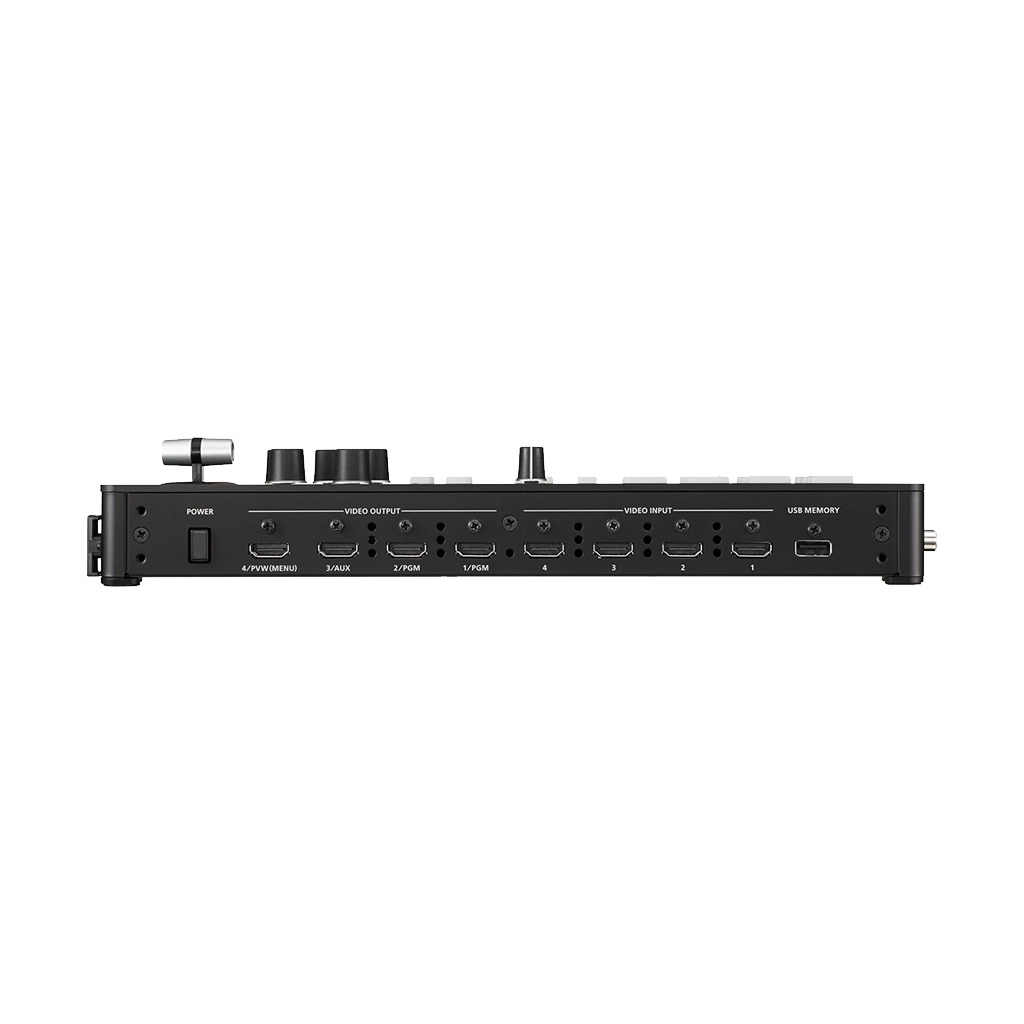

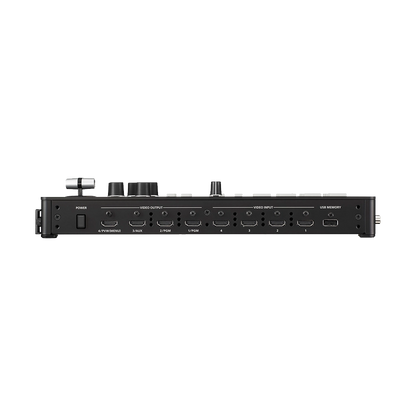

    Input Connectors4 x HDMI type-A (HDCP Supported)
    Output Connectors4 x HDMI type-A (HDCP Supported)
    Supported Formats480/59.94i
    576/50i
    480/59.94p
    576/50p
    720/59.94p
    720/50p
    1080/59.94i
    1080/50i
    1080/59.94p
    1080/50p
    800 x 600/60
    1024 x 768/60
    1280 x 720/60
    1280 x 800/60
    1366 x 768/60
    1280 x 1024/60
    1400 x 1050/60
    1600 x 1200/60
    1920 x 1080/60
    1920 x 1200/60 RB
    EffectsOutput Mode: Switcher, Split, Matrix
    Transition: Mix, Cut
    Composition (Keyer): 2
    Others: HDCP Supported, Test Pattern Generator
    Still ImageInternal Memory: 1
    Maximum Size: 1920 x 1200 pixels
    Format: Windows Bitmap File (.bmp) 24 bit per pixel, uncompressed
    Audio
    Sample Rate24-bit/48 kHz

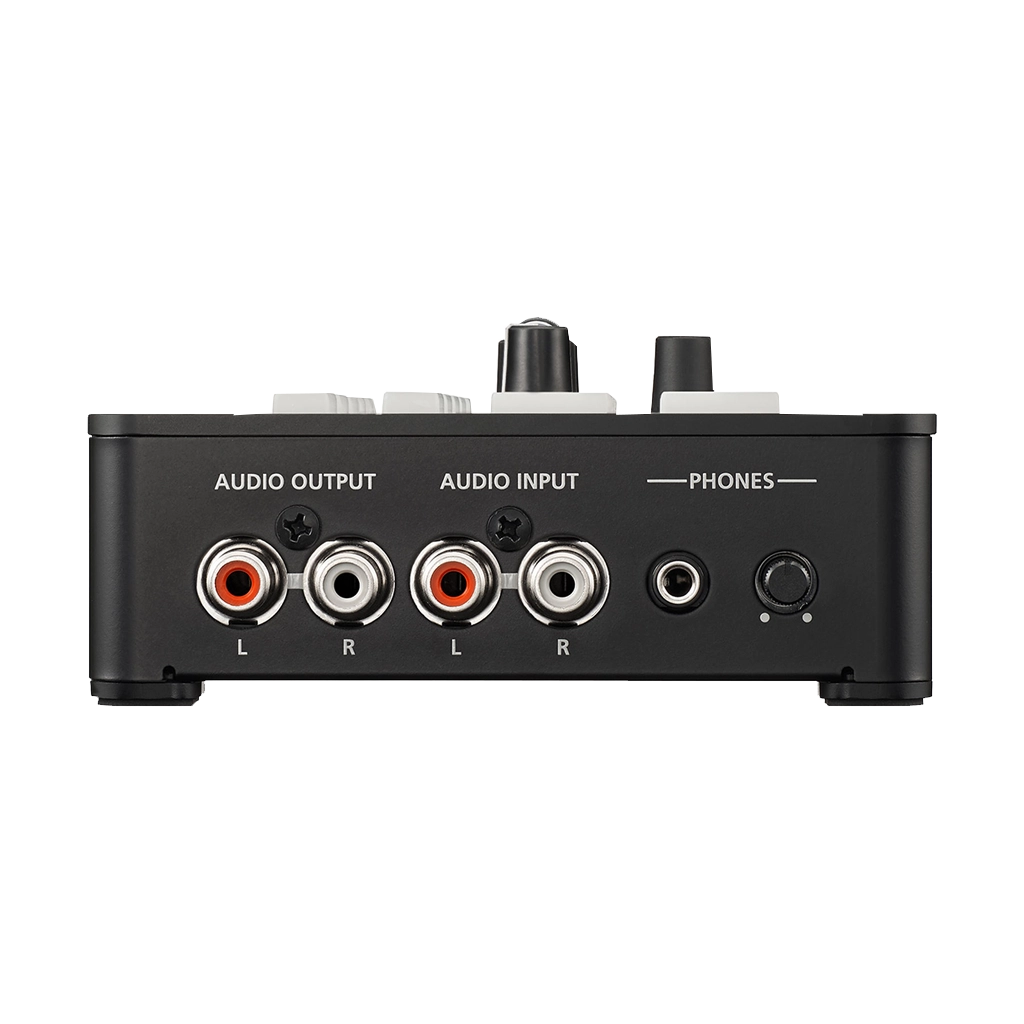

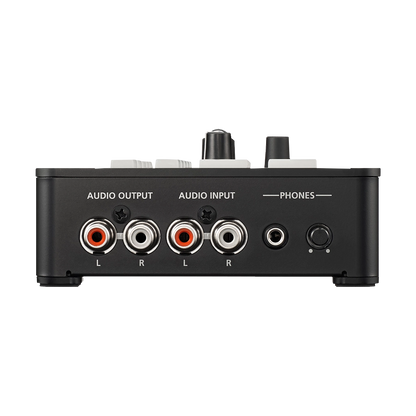

    Input Connectors4 x HDMI type-A
    1 x RCA (stereo pair)
    Output Connectors4 x HDMI type-A
    1 x RCA (stereo pair)
    1 x Stereo 1/8" / 3.5 mm (TRS)
    Input Level and ImpedanceInput Level: -10 dBu (Maximum: +8 dBu)
    Input Impedance: 15 kOhms
    Output Level and ImpedanceOutput Level: -10 dBu (Maximum: +8 dBu)
    Phones Level: 72 mW + 72 mW (32 Ohms)
    Output Impedance: 1 kOhm
    Phones Impedance: 10 Ohms
    Audio FormatsHDMI: Linear PCM, 24-bit, 48 kHz, 2-channel
    ProcessingMixer: 4-Channel (Delay: Maximum 500 ms, audio follow)
    Test Tone Generator
    Other

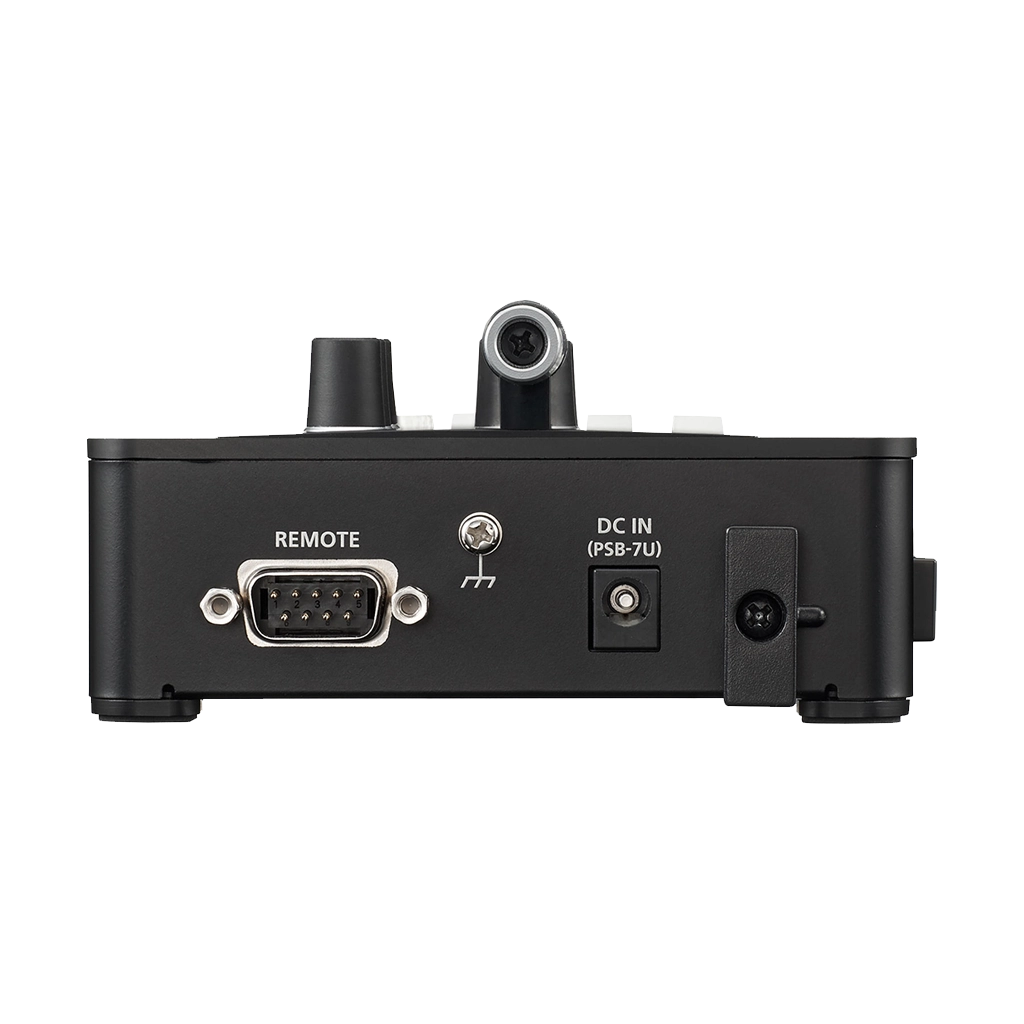

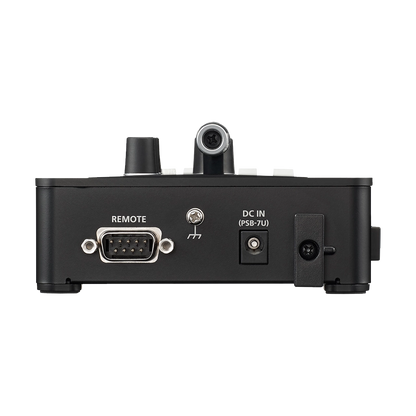

    ConnectorsRemote: 1 x RS-232 DB-9 type (Male) (for remote control)
    USB Memory: 1 x USB type-A
    Preset MemoryAuto Memory Function: 16
    PowerPower Supply: AC Adapter
    Current Draw: 2.1 A
    Power Consumption: 25 W
    Temperature (Operating)0 to 40°C
    Dimensions (W x D x H)12.9 x 4.6 x 2.2" / 328.0 x 117.0 x 57.0 mm
    Weight1.2 kg
