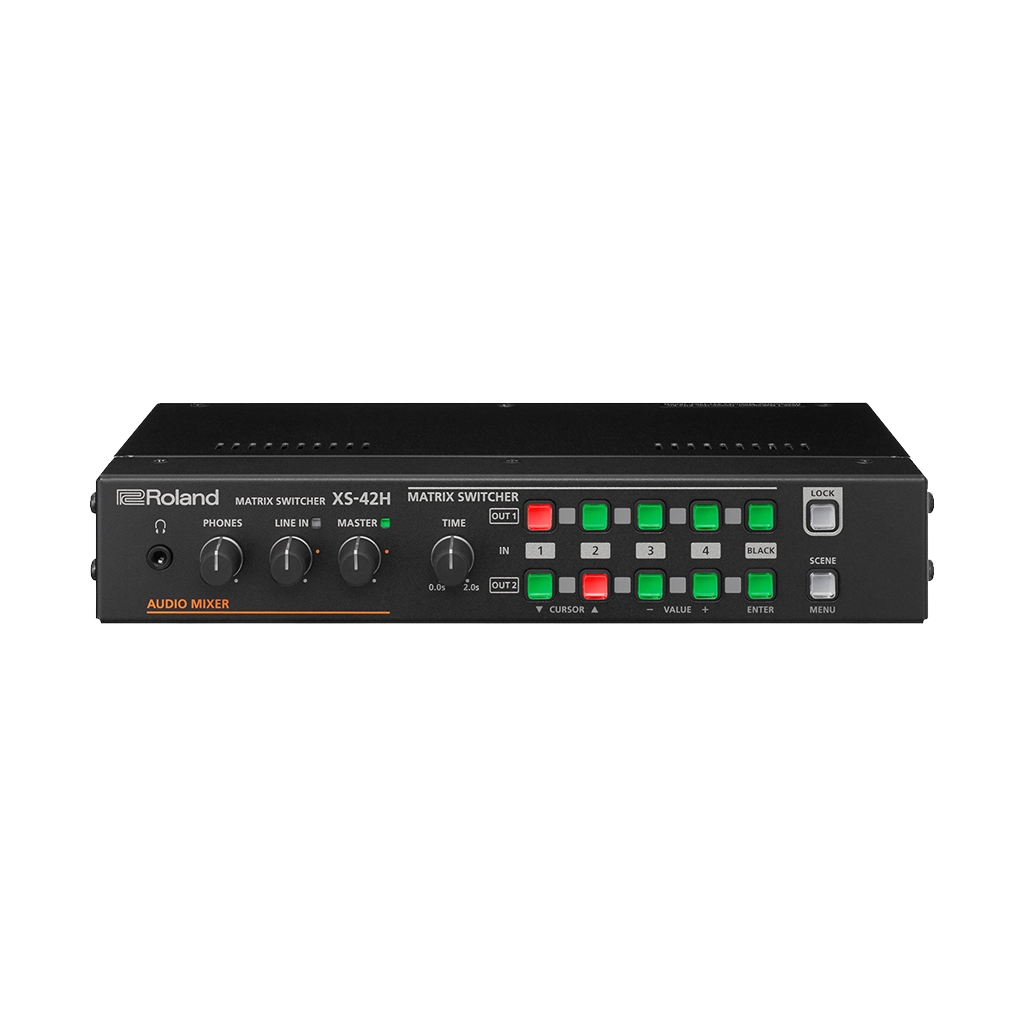

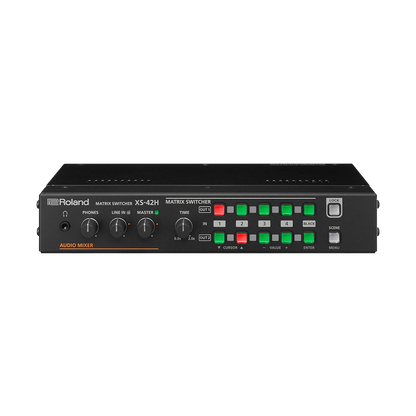

Roland XS-42H Matrix Switcher 4 x 2 HDMI

R 27,995.00
R 27,995.00
Tax included. Shipping calculated at checkout.

XS-42H

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Four HDMI Inputs / Two HDMI Outputs
  • Supports up to 1080p/60 and WUXGA/60
  • Auto Input Detection
  • Displays More Content Using Two Displays

    The Roland XS-42H Matrix Switcher 4 x 2 HDMI is ideal for anyone to connect to, and very effective in meetings and huddle spaces. The Matrix Switcher from Roland allows you to switch up to four HDMI sources to one or two output display monitors.

    Key features to this compact Roland XS-42H Matrix Switcher include auto input detection that automatically switches to a newly connected device, making the transition to a new presenter exceptionally smooth; it can connect and display a reassuring variety of sources, by doing it in two ways: EDID and scaling. EDID (Extended Display Identification Data) communicates to your PC or tablet the correct resolution to output; while scanning lets you connect, switch and display between a variety of different sources and resolutions according to your requirements.

    The design also incorporates stereo RCA outputs for connection to external speakers and soundbars, for exceptional and superior audio quality; and you can use two displays side by side to get more information and also to get more done. Utilise any tablet as a convenient touch controller, via the browser application, which will enable you to select presets, switch inputs and control the volume.



    • Roland XS-42H Matrix Switcher 4 x 2 HDMI
    • AC Adapter
    • Power Cord
    • 4 x Rubber Feet
    • Rackmount Angle Set

    Video
    Processing 4:4:4 (Y/Pb/Pr, RGB), 10-bit
    4:2:2 (Y/Pb/Pr), 10-bit

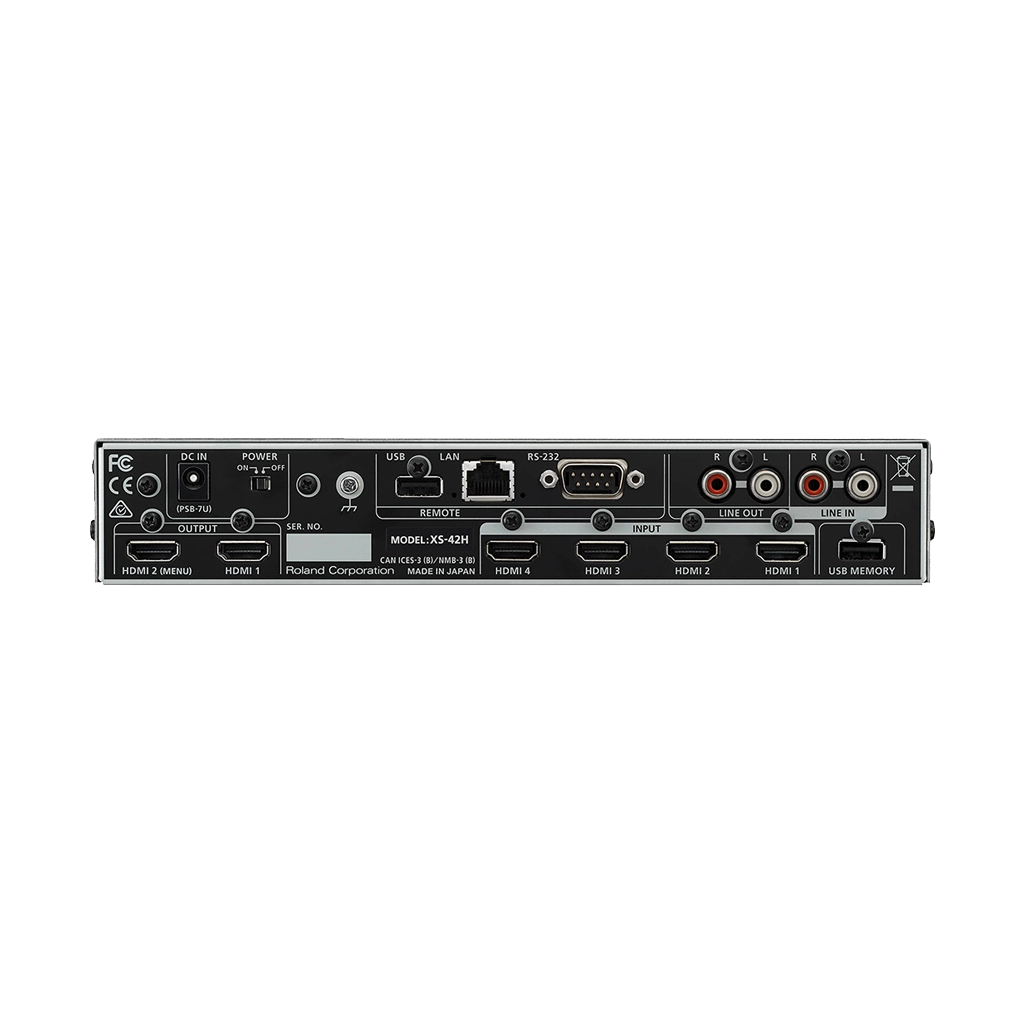

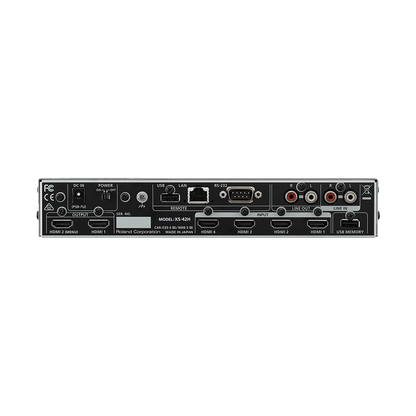

    Input Connectors HDMI: 4 x HDMI type A (HDMI input 1-4)
    Output Connectors 2 x HDMI type A (HDMI output 1-2)
    HDCP Compliant Yes
    Supported Formats & Resolutions 1080p: 59.94/50
    1080i: 59.94/50
    720p: 59.94/50
    576p: 50*
    576i: 50*
    480p: 59.94*
    480i: 59.94*

    1920 x 1200/60 RB, 1920 x 1080/60
    1600 x 1200/60
    1400 x 1050/60**
    1366 x 768/60**
    1280 x 1024/60**, 1280 x 800/60**, 1280 x 720/60**
    1024 x 768/60**
    800 x 600/60*
    Transition Effects Mix, cut
    Still Image Support Internal Memory: x 1
    Maximum Size: 1920 x 1200 pixels
    Format: Windows Bitmap File (.bmp), 24 bpp, uncompressed
    Audio
    Sample Rate 48 kHz, 24-bit
    Input Connectors HDMI: 4 x HDMI type A
    RCA: 1 x stereo
    Output Connectors HDMI: 2 x HDMI type A
    Audio Output: 1 x RCA stereo
    Headphones: 1 x stereo mini
    Input Level -10 dBu (maximum: +8 dBu)
    Input Impedance 15 kOhms
    Output Level Audio Output: -10 dBu (Maximum: +8 dBu)
    Headphone Output: 72 mW + 72 mW (32 Ohms)
    Output Impedance Audio Output: 1 kOhm
    Headphone Output: 10 Ohms
    Format HDMI: Linear PCM, 24-bit, 48 kHz, 2-ch
    Processing Mixer: 4-ch (maximum delay: 250 ms, audio follow)
    General
    External Connectors Remote:
    1 x RS-232, DB-9 (male)
    LAN: 1 x RJ45
    USB: 1 x USB Type-A (future expansion)

    USB Memory:
    1 x USB Type-A
    Functions Scene Memory: x 10
    Test pattern generator
    Test tone generator
    EDID emulator
    Power Supply AC adapter
    Current Draw 2.1 A
    Power Consumption 25 W
    Operating Temperature 0 to 40°C
    Dimensions (WxDxH) 242 x 125 x 44 mm
    Weight 1.2 kg
