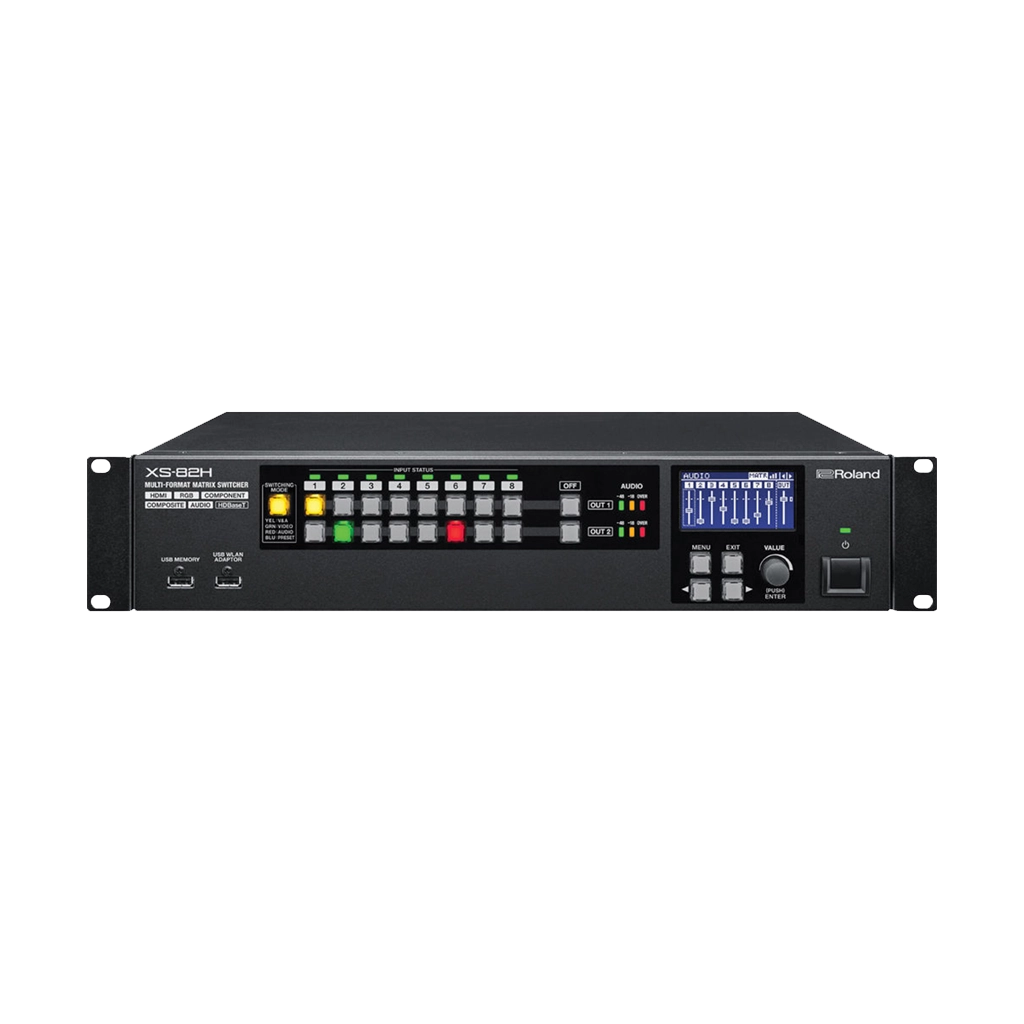

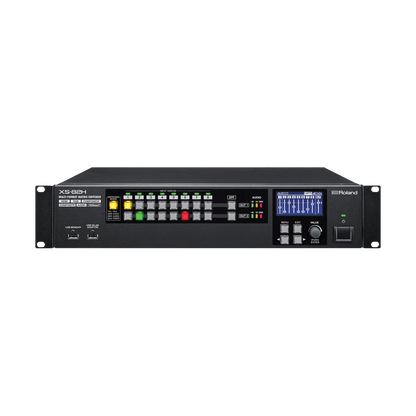

Roland XS-82H 8x2 Multi-Format AV Matrix Switcher

R 107,995.00
R 107,995.00
Tax included. Shipping calculated at checkout.

XS-82H

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Switch up to 8 HDMI / Analog Sources
  • 8x HDMI Inputs
  • 8x RGB/Component/S-Video/Composite DB15
  • 2 HDMI and 2 HDBaseT Outputs
  • Resolutions up to WUXGA and 1080p
  • Built-In Scalers
  • 8 Stereo Line Inputs (2 Mic Compatible)
  • Built-In AD/DA Conversion
  • 16 Channel Digital Audio Mixer
  • S-232C, Network, iPad Control Support

    The Roland XS-82H is a powerful Multi-Format AV Matrix Switcher that features 8 inputs and 2 outputs that's specifically designed for fixed installations requiring high-quality integrated video and audio conversion and switching. The version 3.0 interface introduces a variety of powerful features for live events and enhanced audio matrixing. This system allows you to have full control of video and audio that is flexible enough to meet the various needs of conference rooms, live presentations, classrooms and events.



    Main Features of the Roland XS-82H Multi-Format AV Matrix Switcher

    • Seamless switching
    • Built-in PGM/PST mode for confident switching
    • Scaling guide view feature
    • Enhanced control of settings of PinP windows in multi-mode
    • Stabilized video output when switching modes
    • Matrix configuration for the audio mixer
    • Expanded lock-out functions
    • Support for maximum resolution of WUXGA and 1080p 8 digital inputs and 8 analog inputs 2, 3 or 4 outputs according to the application
    • Accommodate HDMI/HD component/RGB/composite/S-video and audio inputs
    • Built–in scalers and video processor enable split-picture and compositing function
    • Dissolve transition and PGM/PST mode in Version 2.0 is ideal for live events
    • 16ch stereo digital audio mixer with 8 HDMI inputs and 8 analog inputs
    • Direct control via the iPad application XS-80 Remote

    • Roland XS-82H 8x2 Multi-Format AV Matrix Switcher
    • AC Power Cord
    • 5 x Rubber Feet
    • 12 x Euroblock Plug

    Video
    Processing4:4:4 (Y/Pb/Pr), 10-bit

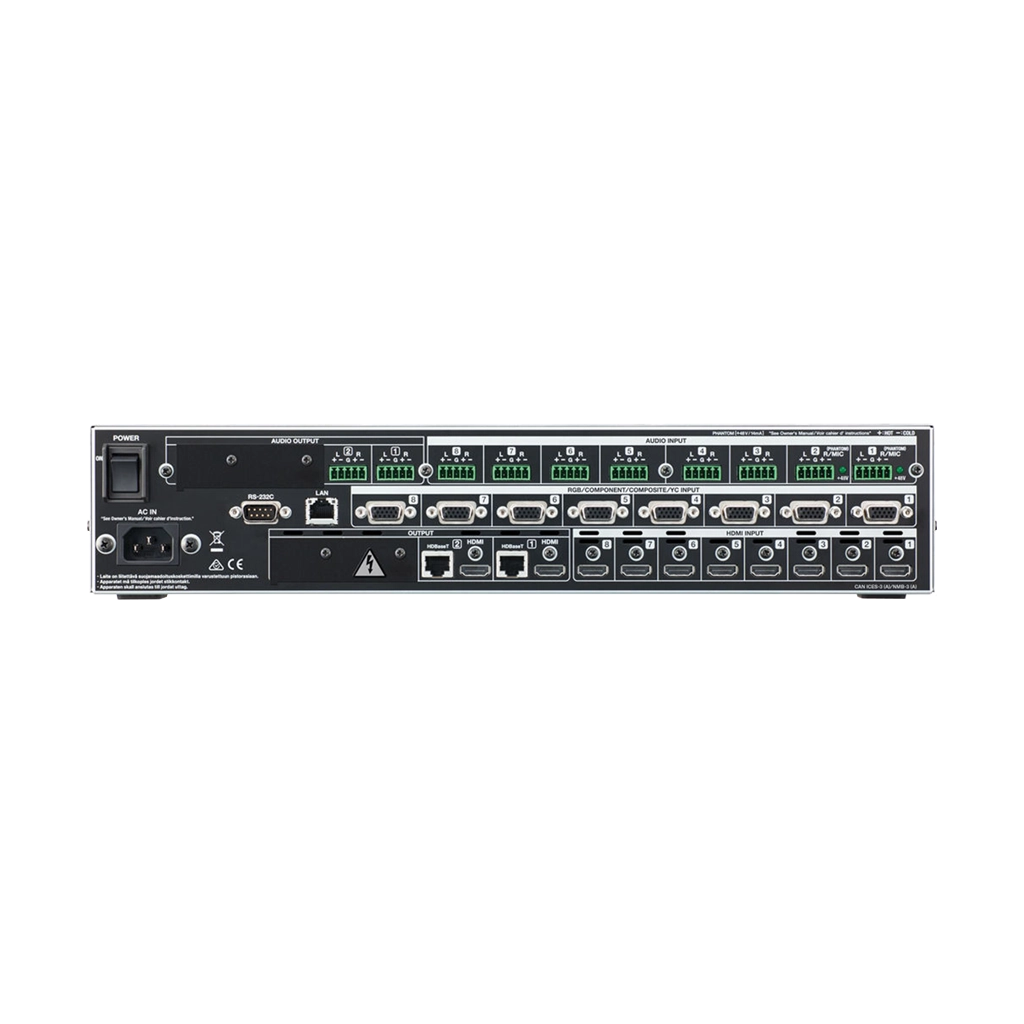

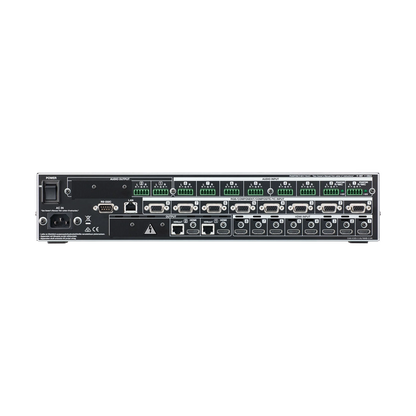

    Input Connectors8 x HDMI (Type A) HDCP Supported
    8 x RGB/Component/S-video/Composite (HD DB-15 type)
    Output Connectors2 x HDMI (Type A)
    2 x HDBase T (RJ-45)
    Input/Output Level and ImpedanceRGB/Component
    Level : 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
    Impedance : 75 ohms

    Composite/S-video
    Level : 1.0Vp-p (luminance), 0.286Vp-p (chroma, NTSC), 0.3Vp-p (chroma, PAL)
    Impedance : 75 ohms
    Supported Input FormatsHDMI : up to 1080p/59.94, up to 1920x1200/60
    Component : up to 1080p/59.94
    RGB : up to 1920x1200/60 Reduced Blanking (Maximum 1920 x 1200 pixels, 24 bit per pixel, uncompressed)
    Composite : 480i/59.94, 576i/50
    S-video 480i/59.94, 576i/50
    Still Image: Windows® Bitmap File (.bmp)
    Supported Output FormatsHDMI : up to 1080p/59.94, up to 1920x1200/60
    HDBaseT : up to 1080p/59.94, up to 1920x1200/60
    EffectsTransition : Cut
    Composition : PinP
    Others : Vertically flip, Horizontally flip, Rotated 90 degrees
    Audio
    Audio ProcessingSampling Rate : 24-bit/48 kHz
    Input ConnectorsDigital : 8 x HDMI (Type A)
    Analog : 8 x 5-pin terminal block connector
    Output ConnectorsDigital : 2 x HDMI Type A (19 pin)
    Analog : 2 x 5-pin terminal block connector
    Input Level and ImpedanceCh 1 to 2 : -60 to +4dBu (Maximum: +22 dBu), 10k ohms (Gain 0 to 23 dBu), 5k ohms (Gain 24 to 64 dBu)
    Ch 3 to 8 : +4dBu (Maximum: +22 dBu), 8.5k ohms
    Output Level and ImpedanceCh 1 to 4 : +4dBu (Maximum: +22 dBu), 600 ohms
    Audio FormatsHDMI : Linear PCM, 24bit, 48kHz, 8ch
    EffectsInput : High-pass filter, 4-band equalizer, Gate/Expander, Compressor
    Output : 4-band equalizer, Gate/Compressor, Delay
    Other
    Connectors1 x D-Sub 9 pin type for RS-232C
    1 x RJ-45 for Ethernet
    2 x USB A Type for USB memory, for WNA-1100RL
    Display2 x color LCD 128 x 64 dots
    PowerPower Supply : AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
    Power Consumption : 50w
    Dimensions18.9 x 13.1 x 3.5" / 481 x 334 x 88 mm
    Weight5.3 kg
