Sennheiser

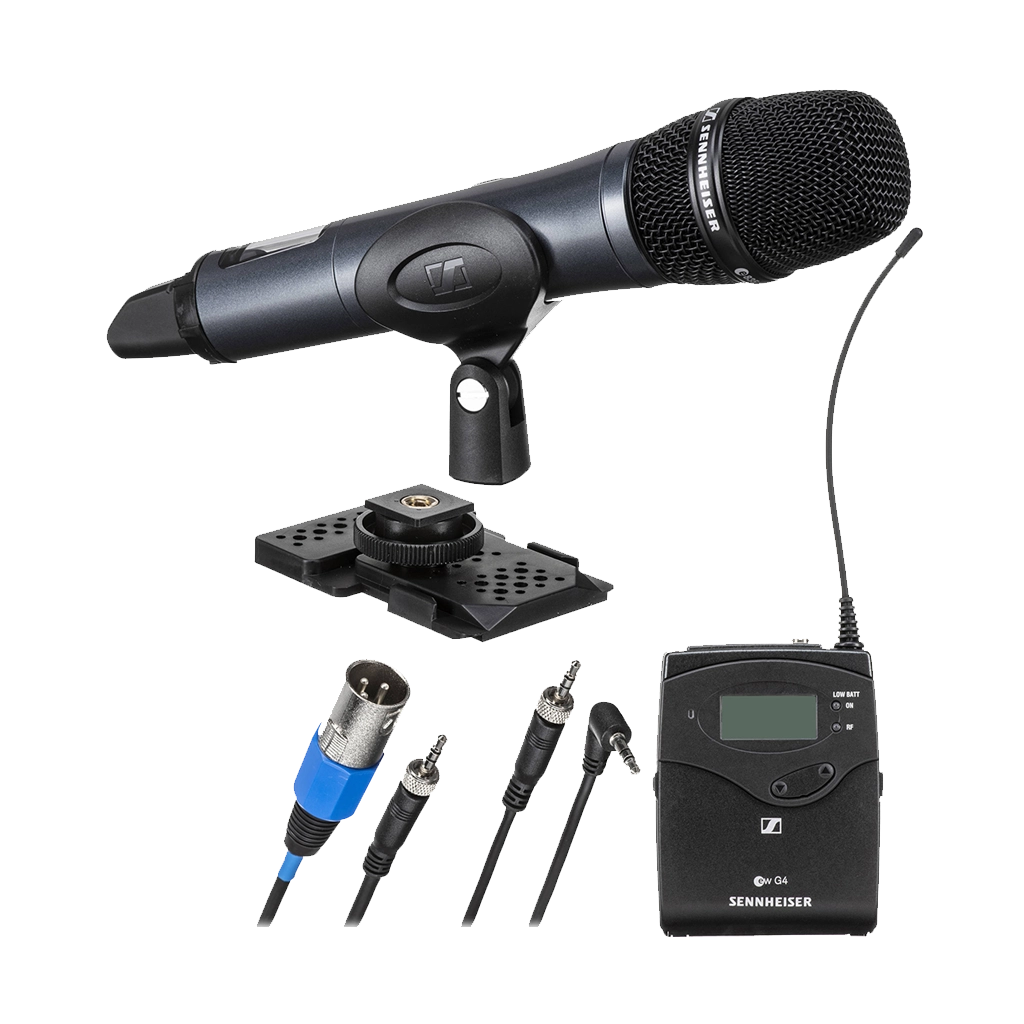

Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System

R 16,155.00
R 16,155.00
Tax included. Shipping calculated at checkout.

SEN-507975

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • For Mobile Journalist, Presenters
  • MMD 835 Dynamic Cardioid Mic Capsule
  • Lightweight Handheld Transmitter
  • Diversity Camera-Mount Receiver
  • 1680 Auto-Scan Frequencies
  • Advanced Controls for Flexible Use
  • Daylight-Readable Display
  • 8-Hour AA Batteries
  • Up to 12 Mics on Set / 1000 m Range

    The Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System features the proven combination of reliability and flexible control and broadcast quality sound Sennheiser has become the industry standard for. The perfect companion for videographers, journalists, and content creators.
    Providing all the tools needed to adapt to the challenges that arise from working on set. This unit automatically scans for the strongest frequency at the location as well as the sensitivity on the transmitter offers the ability to change mic capsules for different polar patterns to suit the applications.

    The Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System includes a camera-mount receiver and an updated, lightweight handheld transmitter equipped with an MMD 835 cardioid capsule, this is ideal if you do not have time for positioning a mic on a person, or the need arises where the mic needs to be passed from one person the next. The receiver connects to a camcorder or any DSLR/mirrorless camera to capture crisp sounding audio for any application for weddings to man-on-the-street interviews.

    • Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System provides reliable transmission for up to 1000 m.
    • Featuring 20 frequency banks with up to 12 factory preset channels to prevent inter-modulation.
    • Pilot tone squelch for eliminating RF noise when transmitter is turned off.
    • The units transmitter as well receiver features a 4 step battery life indicator, with a 8 hour battery life cycle.
    • The Sennheiser EW 135P G4 Camera-Mount Wireless Cardioid Handheld Microphone System features a RF mute system.
    • System is powered by AA batteries, or rechargeable BA 2015 Accupack batteries - Sold Separately.
    • One can operate up to 12 wireless mics from the system at any given time.
    • The EW 135P system can transmit to a unlimited number of EW series receivers.

    • Mount Wireless Cardioid Handheld Microphone System
    • Sennheiser EK 100 G4 Camera-Mount Wireless Receiver
    • Sennheiser SKM 100 G4 Handheld Wireless Microphone Transmitter with No Mic Capsule
    • Sennheiser MMD 835 Cardioid Dynamic Capsule for Handheld Transmitters (Black)
    • Sennheiser MZQ1 Clip for SKM Wireless Handheld Microphone
    • Sennheiser CL1 3.5mm to 3.5mm Output Cable for EW Series Camera-Mount Receiver
    • Sennheiser CL-100 1/8"-Male Mini Jack to XLR-Male Connector Cable for Sennheiser EK100 Receiver
    • Sennheiser CA2 Shoemount Adapter

    System

    Wireless Transmission Analog UHF
    Number of RF Channels 1680
    Included Transmitters 1 x Bodypack with Microphone
    Diversity Antenna Diversity
    Frequency Step Size 25 kHz
    Max Operating Range 100.6 m (Line of Sight)
    Max Systems per Setup 12
    Deviation 48 kHz (Peak)
    Modulation Wideband FM

    Receiver

    Form Factor Camera-Mount
    Mounting Options Shoe-Mount (with Included Hardware)
    Antenna 1 x Flexible Whip, Fixed
    Number of Audio Channels 1
    Audio I/O 1 x 3.5 mm TRS Female Unbalanced Output (Lockable)
    Gain Range 42 dB (6 dB Steps)
    Audio Output Level +12 dBu
    Squelch 5 to 25 dBμV
    Adjacent Channel Isolation >65 dB
    Power Requirements Battery
    Battery Type 2 x AA (Included)
    1 x Sennheiser Accupack (Not Included)
    Approx. Battery Life 8 Hours (Alkaline)
    Display & Indicators 1 x Backlit LCD (Battery Status, Output Level, RF Level)
    Housing Metal
    Operating Temperature -10 to 55°C
    Dimensions 64 x 82 x 24 mm
    Weight 160 g (with Batteries)

    Transmitter

    Form Factor Handheld
    Audio I/O None
    Muting None
    Audio Input Level 3 V RMS (Max)
    Gain Range 48 dB (6 dB Steps)
    Frequency Response 80 Hz to 18 kHz (Mic)
    80 Hz to 18 kHz (Line)
    Sync Method IR
    Antenna 1 x Internal
    Power Requirements Battery
    Battery Type 2 x AA (Included)
    1 x Sennheiser Accupack (Not Included)
    Approx. Battery Life 8 Hours (Alkaline)
    Display & Indicators 1 x Backlit LCD (Audio Level, Battery Status, Signal Strength)
    Housing Metal
    Dimensions 50 x 265 mm
    Weight 450 g (with Batteries)

    Microphone

    Form Factor Handheld Capsule
    Sound Field Mono
    Capsule Dynamic
    Polar Pattern Cardioid
    Maximum SPL 154 dB SPL Peak
    Sensitivity 2.1 mV/Pa
