Sennheiser EW-DP ME2 SET (S1-7: 606.2 - 662 MHz)
Choose PayGate at checkout for MobiCred Payments.
- Creators, Videographers, Newsgatherers
- ME 2 Omnidirectional Lavalier Mic
- Lightweight Bodypack Transmitter
- True-Diversity Camera-Mount Receiver
- Pro Features with Fast and Easy Setup
- 134 dB of Dynamic Range
- 56 MHz Bandwidth
- Setup/Operate from Phone via Bluetooth
- 12-Hr Bodypack/7-Hr Receiver + USB Power
Orms Bellville
Orms Cape Town
Sennheiser EW-DP ME2 SET (S1-7: 606.2 - 662 MHz)
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- Creators, Videographers, Newsgatherers
- ME 2 Omnidirectional Lavalier Mic
- Lightweight Bodypack Transmitter
- True-Diversity Camera-Mount Receiver
- Pro Features with Fast and Easy Setup
- 134 dB of Dynamic Range
- 56 MHz Bandwidth
- Setup/Operate from Phone via Bluetooth
- 12-Hr Bodypack/7-Hr Receiver + USB Power
Choose PayGate at checkout for MobiCred Payments.
- Creators, Videographers, Newsgatherers
- ME 2 Omnidirectional Lavalier Mic
- Lightweight Bodypack Transmitter
- True-Diversity Camera-Mount Receiver
- Pro Features with Fast and Easy Setup
- 134 dB of Dynamic Range
- 56 MHz Bandwidth
- Setup/Operate from Phone via Bluetooth
- 12-Hr Bodypack/7-Hr Receiver + USB Power
The Sennheiser EW-DP ME2 SET (S1-7: 606.2 - 662 MHz) is designed to offer industry-leading audio workflow that only advanced digital technology and UHF transmission can offer. This fully digital UHF wireless microphone system features an all-new portable design and unmatched audio quality, purpose-built for filmmakers, content creators, and broadcasters.
The compact digital receiver at the heart of the Sennheiser EW-DP ME2 SET provides an intuitive user experience for all. With Bluetooth synchronisation, the system can be controlled via the Sennheiser Smart Assist App which makes it easy to control your setup on set. A front-facing OLED display allows for easy menu navigation and Smart Notifications help to troubleshoot your system when you encounter a challenge. Magnetic and stackable mounting configurations seamlessly integrate the receiver into your camera build while multiple powering options are ready to tackle long days on location.
Capture Every Detail, Every Time
The Sennheiser EW-DP ME2 SET (S1-7: 606.2 - 662 MHz) employs UHF wireless transmission which is the international standard all wireless audio systems are measured by. Used by professionals the world over UHF is known for its reliability, flexibility and comprehensive feature set. combining that with the spectral efficiency and audio clarity of the EW-DP, you get the most advanced wireless audio system from Sennheiser for video applications.
It's The Little Things…
Creating the best user experience was a great consideration when developing the Sennheiser EW-DP ME2 SET (S1-7: 606.2 - 662 MHz) to create the best user experience possible.
The EW-DP is also the first system employing magnetically stackable receivers with a front-facing OLED display. A variety of powering options include primary cells, lithium-ion rechargeable battery packs and direct power via USB-C, ensuring peace of mind during long hours on set.
Guidance When You Need it Most
Smart Notifications provide suggestions for errors that occur when setting up or operating EW-DP. If your audio clips, the system will suggest lowering the gain. When your battery is running low, the system will alert you. If you try to operate on a blocked frequency, you will be promoted to select another. If your transmitter and receiver are not linked, you’ll be prompted to press sync. If the talent accidentally mutes their transmitter, you’ll be notified and will have the option to disable the mute remotely. These guides make all the difference when audio isn’t your only responsibility.
Control in the Palm of Your Hand
Using the Sennheiser Smart Assist App you are offered automated setup, operation, and monitoring of your Sennheiser EW-DP ME2 SET via Bluetooth on any iOS or Android device. With no wireless expertise needed, you are able to connect up to 16 systems.
Key Features at a Glance...
- Fully digital UHF wireless microphone system for video applications
- Integrated Bluetooth for synchronization and control
- Smart Notifications for troubleshooting and system guidance
- Intelligent battery management provides operating time (hours: minutes)
- Extended battery life: up to 12h on transmitter, 7h on receiver
- Magnetically stackable components for versatile mounting
- Industry-leading 134 dB input dynamic range for distortion-free transmission
- Up to 56 MHz bandwidth for flexibility in any RF environment
- Exceptionally low latency (1.9 ms)
- External charging and powering via USB-C (receiver only)
- Smart Assist app for monitor and control
- Optional plug-on transmitter features XLR and 3.5 mm inputs, +48V & recording via microSD (ENG Set or component only)

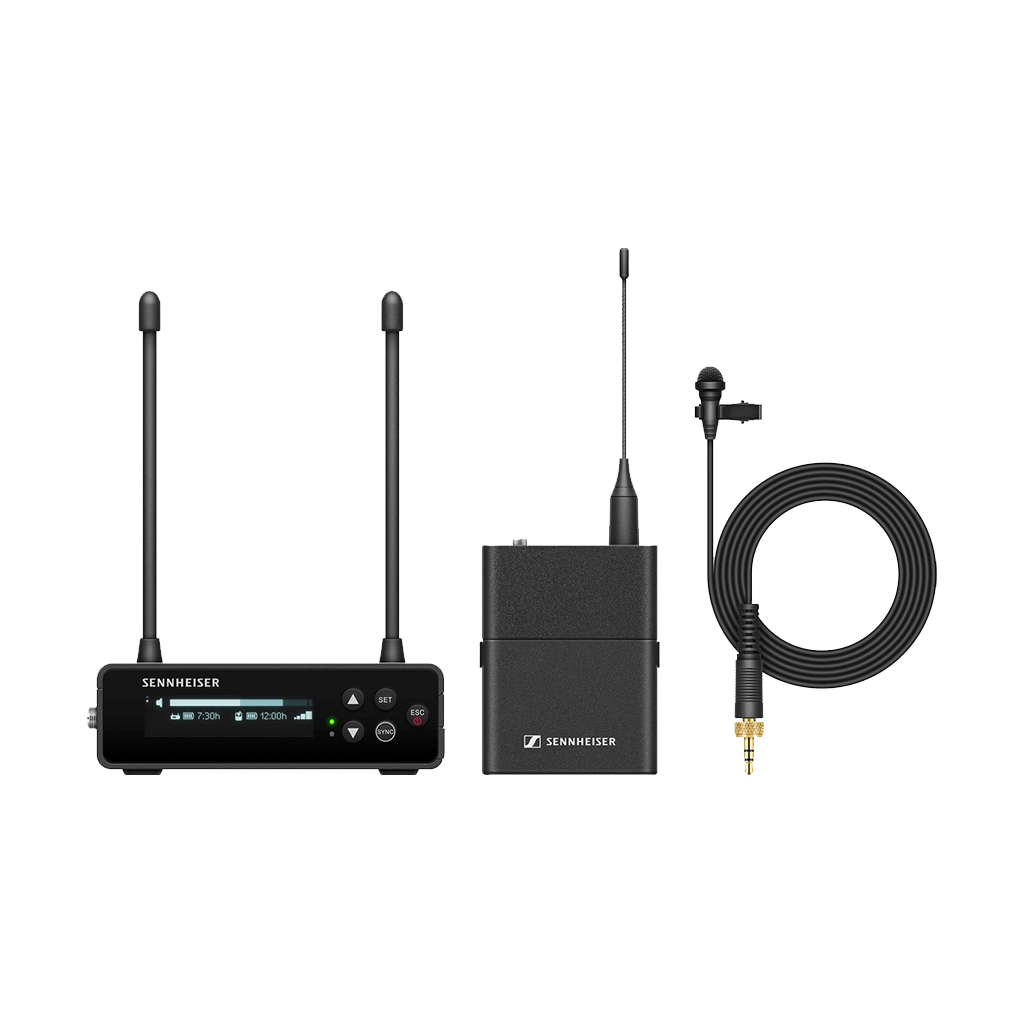

Sennheiser EW-DP ME2 SET (S1-7: 606.2 - 662 MHz)
- EW-DP EK digital portable single channel receiver
- EW-D SK digital bodypack transmitter
- ME 2 omnidirectional lavalier microphone
- Mounting kit (cheese plate, cold shoe, belt clip and screws)
- BA 70 li-ion battery and (2) AA battery
- Locking 3.5 mm TRS plug to 3.5 mm TRS plug cable
- Locking 3.5 mm TRS plug to XLR plug cable
- USB-C charging cable
System
Audio link frequency ranges | 606.2 - 662 MHz |
Bluetooth® Low Energy (BLE) frequency range | 2402 - 2480 MHz |
Audio frequency response | 20 Hz - 20 @ 3 dBfs |
Audio THD | ≤ -60 dB for 1 kHz @ -3 dBfs input level |
Dynamic range | 134 dB |
System Latency | 1.9 ms |
Operating temperature | -10 °C - +55 °C |
Relative air humidity | 5 - 95 % (non-condensing) |
EW-DP EK
Input voltage | ~ 1.8 - 4.35 V |
Input Current |
Typ. < 250 mA / Max. < 400 mA (BA 70)
Typ. < 400 mA / Max. < 750 mA (2x AA batteries)
< 300 mA@5 V (USB-C standalone)
|
Power supply |
2x AA batteries 1.5V or BA70 rechargeable upply battery pack or USB-C PD power s (max.):
5V / 1500mA
9V / 900mA
12V / 700mA
|
Transmit power (radiated) | BLE: max. 10 mW EIRP |
Audio output power | < 2 dBV max. (high level) / < 4dBU max (high level) |
Headphone Output | < 50 mW into 16 Ohms |
Dimensions | 86 x 67 x 28 mm |
Weight (without antennas and power supply) | approx. 140g |
EW-D SK (Bodypack Transmitter)
Input voltage | 2.0 - 4.35 V |
Input Current | < 300 mA |
Power supply | 2 AA batteries 1.5 V (alkali manganese) or BA 70 rechargeable battery pack |
Occupied bandwidth | 200 kHz |
Transmit power (radiated) |
Audio link: 10 mW ERP (Range Y1-3: 12 mW ERP)
BLE: max. 10 mW EIRP
|
Dimensions (without antenna) | 63 x 80 x 20 mm |
Weight w/o batteries | approx. 120 g |
ME 2 (Lavalier Microphone)
Transducer principle | pre-polarized condenser microphone |
Pick-up pattern | omnidirectional |
Sensitivity in free field, no load (1kHz) | 17 mV/Pa |
Max. SPL at 1 kHz | 130 dB |
Frequency response | 50 to 18,000 Hz |
Equivalent noise level A-weighted | 32 dB |
Connector | 3.5 mm jack |
Cable length | approx. 1.60 m |
Supply voltage | 7.5 V |
