SmallRig

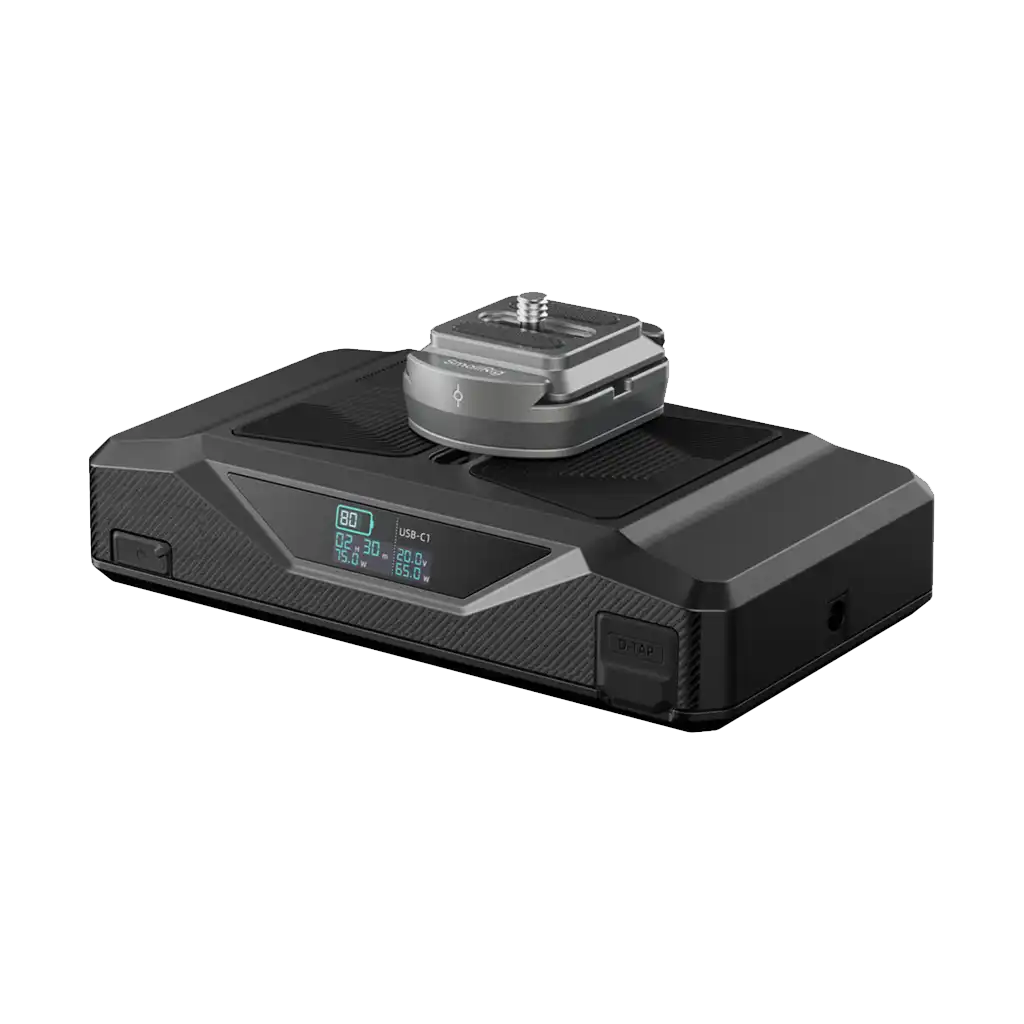

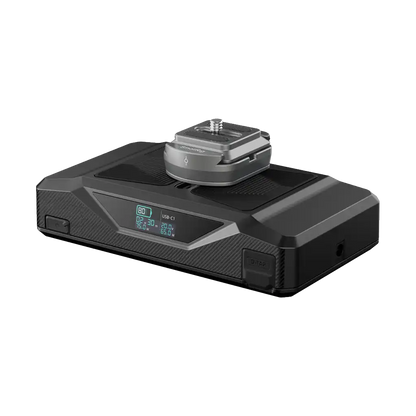

SmallRig CB75 Camera Base Battery Kit

Regular price R 4,370.00
Sale price R 4,370.00 Regular price R 4,370.00
Tax included. Shipping calculated at checkout.

5248

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Mounts Directly on Camera
  • Hawklock H38 Arca-Type Base, QR Plate
  • 20,000mAh Capacity
  • D-Tap, USB-C, and DC Barrel Ports
  • 1/4"-20 Camera Screws, OLED Screen
  • 65W Fast-Charging Interface
  • 2-Hour Full Recharge

Payment methods

    Use the SmallRig CB75 Camera Base Battery Kit to outfit your camera rig with a high-capacity battery base and an Arca-Type quick-release for efficient handheld and tripod-mounted shooting. The battery base features a 20,000mAh, 73.8Wh capacity with USB-C 65W fast charging. The included Hawklock H38 base with quick-release plate allows you to facilitate one-click transitions between mounting devices.

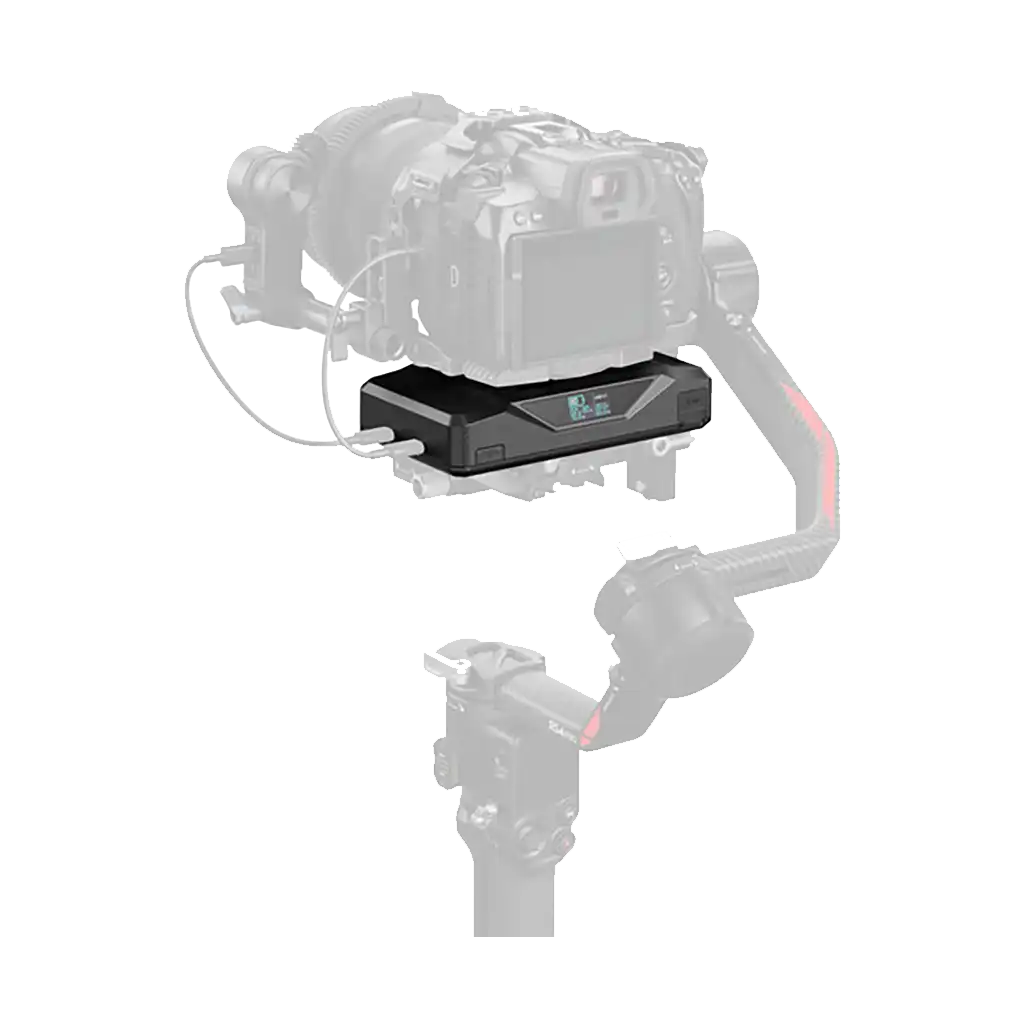

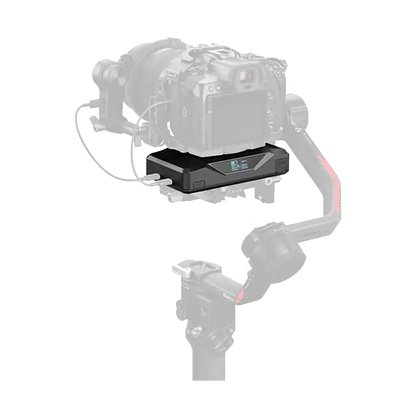

    The SmallRig CB75 Camera Base Battery Kit is ideal for delivering power to your handheld configurations and enabling fast transitions to tripod-mounted shooting. The base mounts directly to the bottom of your camera via the two 1/4"-20 screws. The high-capacity battery is able to power our Canon EOS R5 Mark II for up to 6 hours, or the Sony A7 IV for up to 7 hours when recording 4K video.

    On and around the battery base, you will find two D-tap I/O, a DC barrel output, and two USB-C I/O that support 65W fast charging for wide compatibility on set. The battery can be fully recharged in just two hours.

    The SmallRig Hawklock H38 Arca-Type Base with Quick-Release comes with the SmallRig CB75 Camera Base Battery Kit includes a HawkLock-style Arca-type baseplate and a quick-release camera mounting plate.

    On the plate, you will find two 1/4"-20 mounting screws with soft padding to prevent twisting. The receiver then features the HawkLock anti-slip. The notched design prevents unwanted sliding.

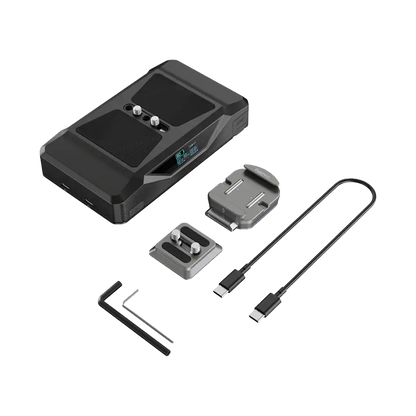

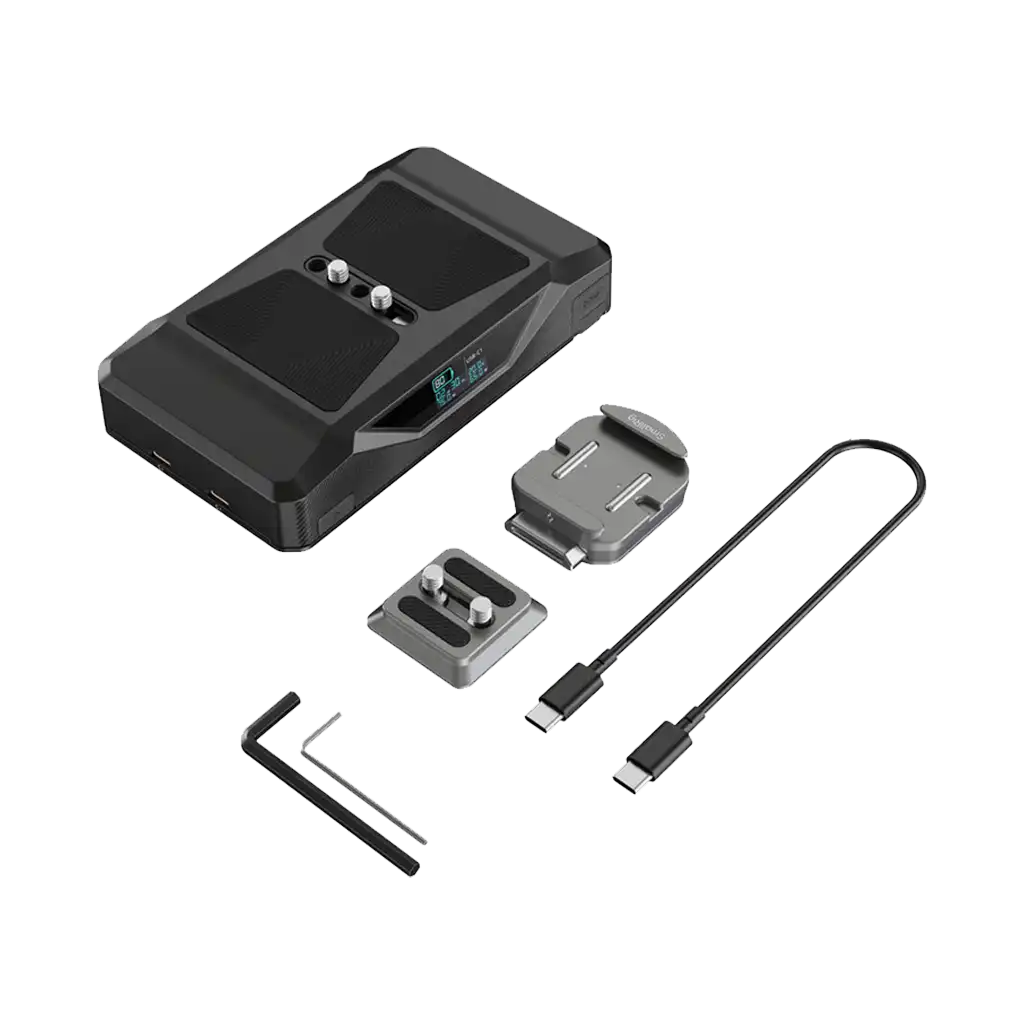

    SmallRig CB75 Camera Base Battery Kit

    SmallRig CB75 Camera Base Battery (73.8Wh)

  • SmallRig 100W USB-C to USB-C PD Cable (30cm)
  • SmallRig Allen Wrench
  • SmallRig Hawklock H38 Arca-Type Base with Quick Release Plate

    • SmallRig Arca-Type Base
    • SmallRig Arca-Type Quick Release Plate
    • 2 x SmallRig Allen Wrench

    SmallRig CB75 Camera Base Battery Kit

    SmallRig CB75 Camera Base Battery (73.8Wh)

    Battery
    Battery Type
    Screw Mount
    Battery Capacity
    20,000 mAh / 73.8 Wh
    Output Voltage
    14.76 VDC
    Battery Chemistry
    Lithium-Ion
    Accessory Mounting Thread
    2x 1/4"-20 Male Screw (Top)
    1x 1/4"-20 Female Thread (Bottom)
    Dimensions
    149 x 86 x 33 mm
    Weight
    528 g
    Battery Charger
    Power I/O
    2x D-Tap/P-Tap Input/Output
    2x USB-C Input/Output
     • 5 to 20 VDC at 3 to 3.25 A (65 W)
    1x Barrel/Coax Output
     • 7.8 to 8.4 VDC at 3 A

    SmallRig Hawklock H38 Arca-Type Base with Quick Release Plate

    Material of Construction
    Aluminium, Silicone, Stainless Steel
    Plate Type
    Arca-Type Quick Release
    Arca-Type Base with HawkLock
    Camera Mounting Screws
    2 x 1/4"-20
    Mounting Threads
    2 x 1/4"-20
    Dimensions
    54.6 x 41 x 23 mm
    Weight
    88 g
