SmallRig

SmallRig SR009 HawkLock VCT-14 Type Shoulder Rig

R 12,490.00
R 12,490.00 R 12,490.00
Tax included. Shipping calculated at checkout.

5199

Low stock

Choose PayGate at checkout for MobiCred Payments.

SHORT DESCRIPTION

  • Shoulder Rig for Cinema Cameras
  • Load Capacity: 20kg
  • One-Touch HawkLock Quick Release System
  • Dual Telescopic Extension Arms
  • Adjustable Shoulder and Back Pads
  • VCT-14 Type Module, Tool-Free Adjustment
  • QR Plate with 1/4"-20 and 3/8"-16 Screws
  • 1/4"-20 Female Threads | 15mm Rod Ports
  • Pair of 15mm Rods
  • Aluminium Alloy and Stainless Steel Build
    SmallRig SR009 HawkLock VCT-14 Type Shoulder Rig

    R 12,490.00

    The SmallRig SR009 HawkLock VCT-14 Type Shoulder Rig is specifically designed for cine camera rigs of up to 20 kg for a stable shoulder-mounted operation with optimised weight distribution.

    The integrated VCT-14 type module allows for instant transitions between tripod and shoulder modes. Then the one-touch HawkLock quick-release system makes repositioning and deployment on set easy. You will also find dual telescopic extension arms along with a double-layer quick-release plate providing up to 18.5cm of front-to-back adjustment for adjusting the rig's centre of gravity.

    The SmallRig SR009 HawkLock VCT-14 Type Shoulder Rig is constructed from aluminium alloy and stainless steel. Adjustable shoulder and back pads enhance comfort during extended operation, while integrated ARRI rosettes, 1/4"-20 threads, and 15mm rod ports support accessory integration. Tool-free assembly and adjustment maintain workflow efficiency across fast-paced production environments.

    Main Construction Features At a Glance

    Robust Support

    • 20kg load capacity for heavy-duty cinema rigs
    • Aluminium alloy and stainless steel build ensures durability
    • Wide, thickened shoulder pad and back pad for comfort during extended use

    Flexible Configuration

    • Dual telescopic extension arms with handgrips and ARRI rosettes
    • 18.5cm front-to-back balance adjustment
    • Tool-free assembly and configuration

    Expansive Mounting

    • One-touch HawkLock quick release plate system
    • Built-in VCT-14 type adapter for rapid tripod mounting
    • 1/4"-10 and 3/8"-16 camera mounting screws
    • Integrated 1/4"-20 threads and 15mm rod ports

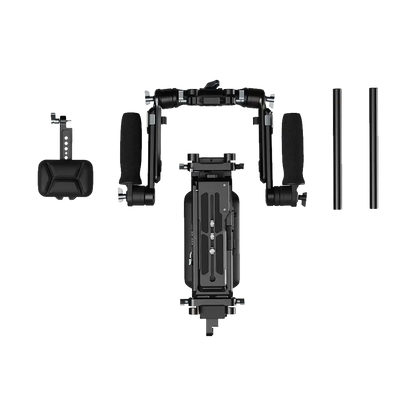

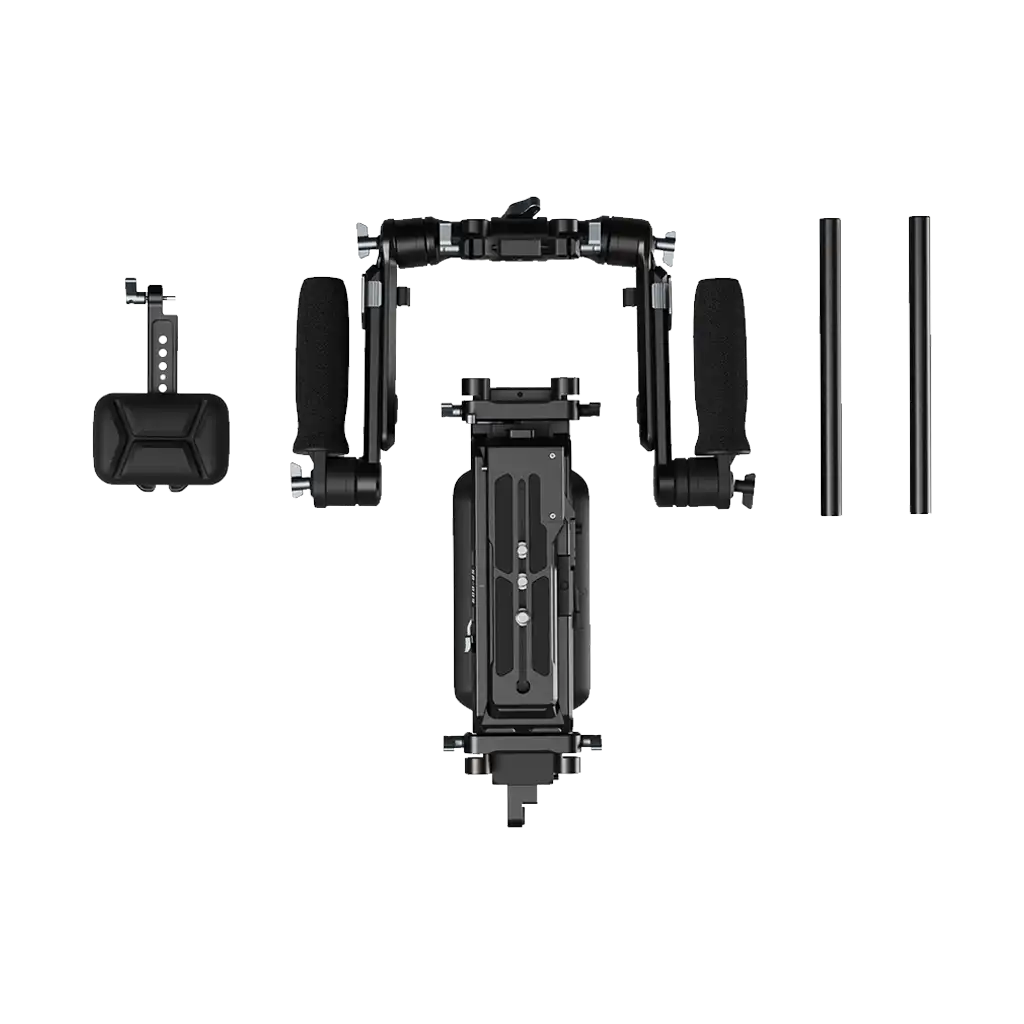

    • SmallRig SR009 HawkLock VCT-14 Type Shoulder Rig
    • SmallRig Shoulder Pad
    • SmallRig Back Pad
    • SmallRig Quick Release Plate
    • 2 x SmallRig Telescopic Extension Arm
    • 2 x SmallRig 15mm Rod
    • 2 x SmallRig 1/4"-20 Screw
    • SmallRig 3/8"-16 Screw

    Support Type
    Shoulder Support
    Grip Type
    Dual Handgrips
    Mounting
    Rod Standard
    15 mm LWS / 60 mm Spacing
    Included Rods
    Yes
    Battery Plate Type
    No
    Accessory Mounting
    Arms
    2x 1/4"-20 Female Thread
    Back Pad
    1x Anti-Twist 1/4"-20 Female Thread
    3x 1/4"-20 Female Thread
    Camera Mounting
    1/4"-20 Male Screw, 3/8"-16 Male Screw
    Tripod Mounting
    VCT-14
    Rod Ports
    Shoulder Mount, Front
    2x 15 mm Rod Port
    Shoulder Mount, Rear
    2x 15 mm Rod Port
    Handles
    2x 15 mm Rod Port
    Shoe Mounting
    No
    Rosettes
    No
    General
    Load Capacity
    20 kg
    Load Capacity
    20 kg
    Materials
    Aluminium Alloy, Fibreglass, Plastic, Silicone, Stainless Steel
    Dimensions
    469 x 312 x 190 mm
    Weight
    2.27 kg
