SmallRig

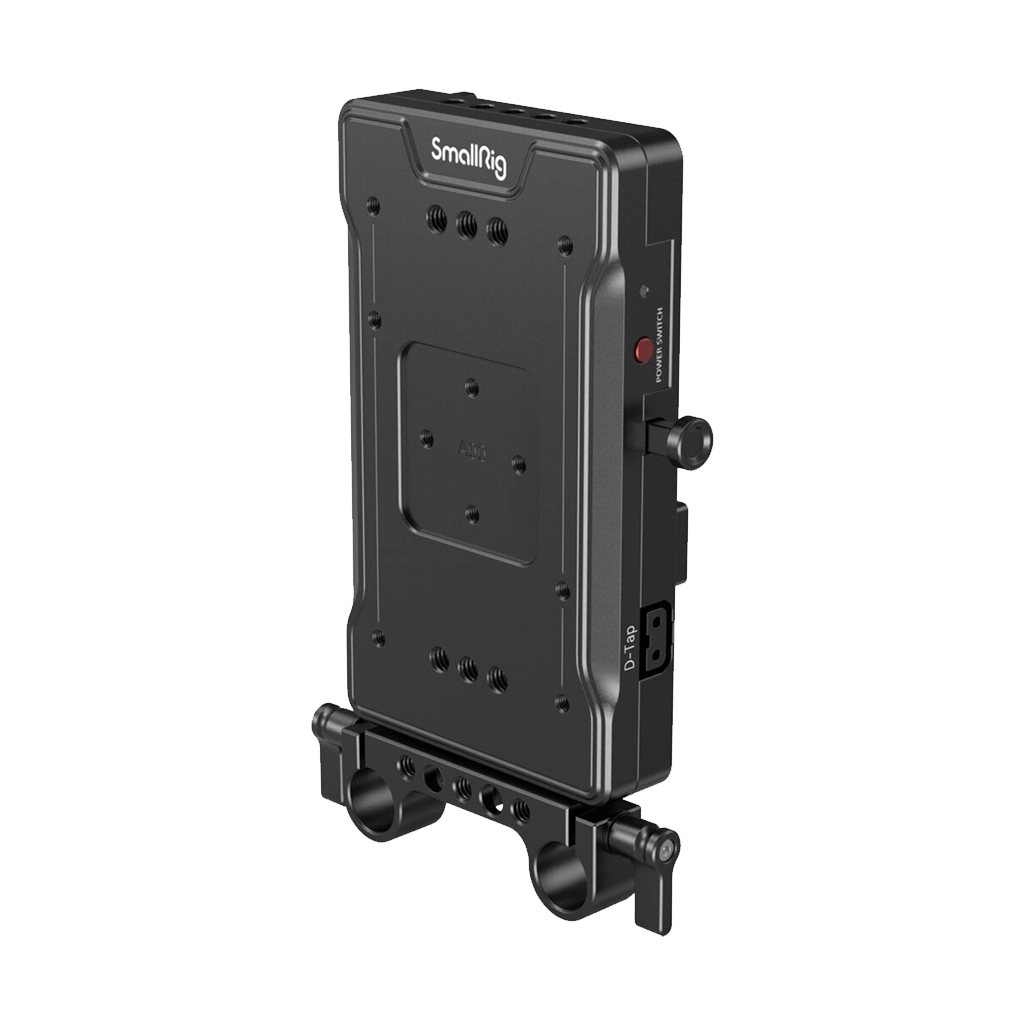

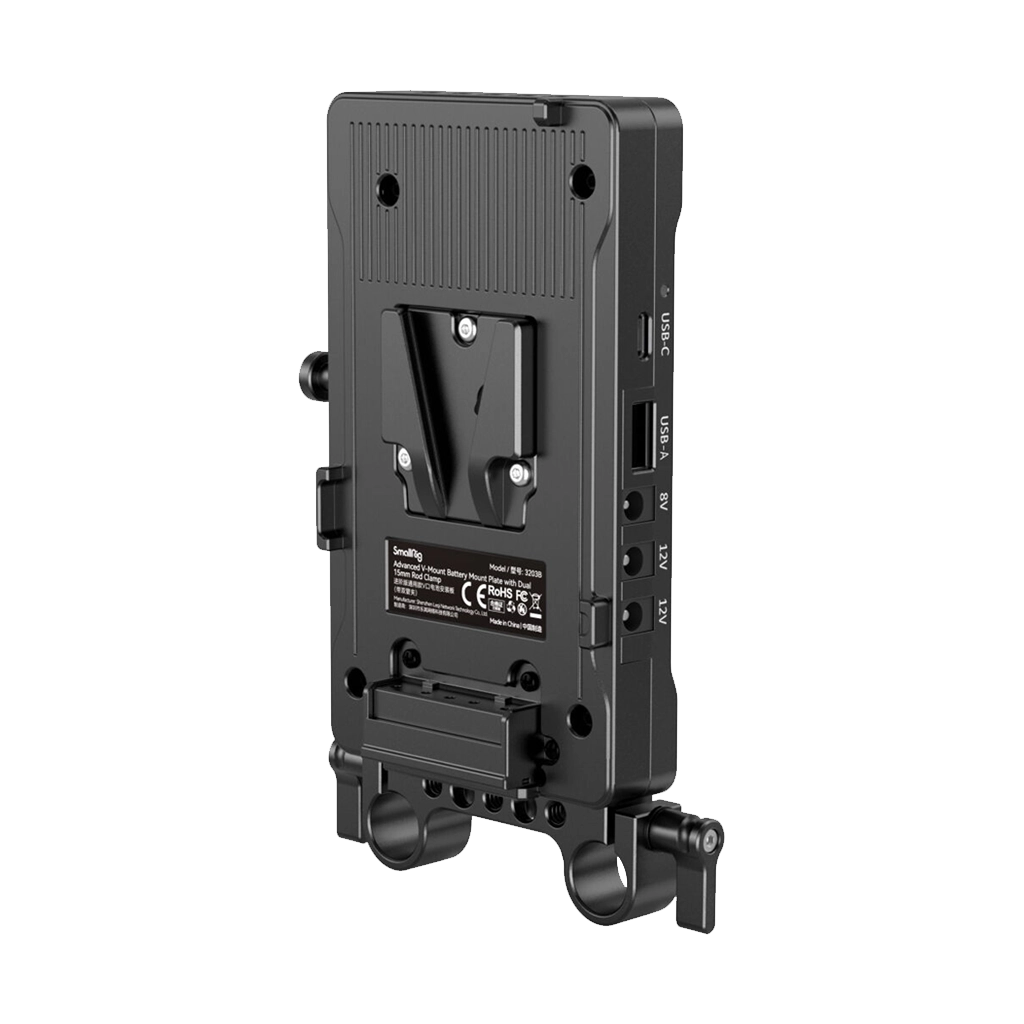

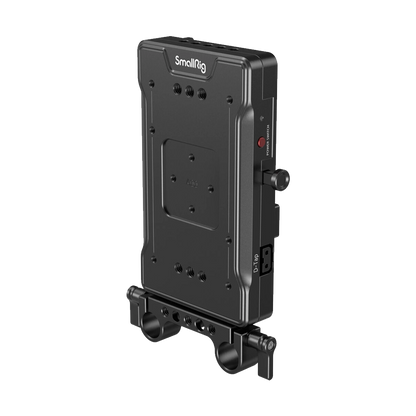

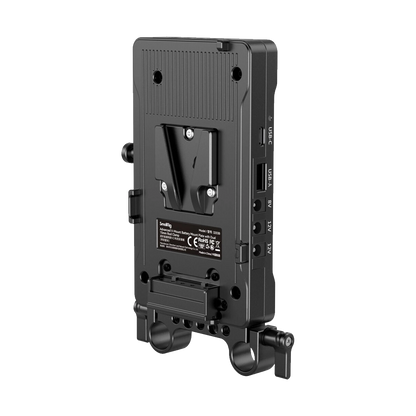

SmallRig V-Mount Battery Adapter Plate with Dual 15mm Rod Clamp

Regular price R 2,870.00
Sale price R 2,870.00 Regular price R 2,870.00
Tax included. Shipping calculated at checkout.

3203B

Low stock

Choose PayGate at checkout for MobiCred Payments.

SHORT DESCRIPTION

  • Power Your Rig with V-Mount Batteries
  • 14.8V D-Tap and 65W PD USB-C Input/Outputs
  • 1 x 8V, 3A and 2 x 12V, 3A Barrel Outputs
  • 36W Quick Charge USB-A Output
  • 15mm LWS Rod Clamp on Bottom
  • 1/4"-20 and M4 Threads on Plate/Clamp
  • Status Indicator Light
  • DC Overcurrent Protection
  • Durable Aluminum Construction

Payment methods
    SmallRig V-Mount Battery Adapter Plate with Dual 15mm Rod Clamp

    R 2,870.00

    The SmallRig V-Mount Battery Adapter Plate with Dual 15mm Rod Clamp enables you to power a variety of accessories along with your camera. This V-Mount Plate adds USB-C I/O with up to 65W of output and a QC protocol-compatible USB-A port that can supply up to 36W of power.

    The SmallRig V-Mount Battery Adapter Plate with Dual 15mm Rod Clamp features a single V-Mount battery slot along with one 14.8V D-Tap output rate at 5A of current or up to 10A maximum when connected to a power supply. Furthermore, there are three barrel outputs, of these you will find one 8V and two 12V outputs, these will be found on the side of the plate to all your accessories.

    This durable aluminium plate features six 1/4"-20 and ten M4 threaded holes on the back to mount to arms, cages or clamps. Further mounting options include five 1/4"-20 threads on top along with the bottom of the plate to extend mounting options.

    The included SmallRig V-Mount Battery Adapter Plate with Dual 15mm Rod Clamp 15mm LWS rod clamp allows for easy mounting and releasing of the clamp from a standard separately available 15mm LWS rods (not included) with easy locking leavers.

    • 3500-20000mAh 14.8V V-mount batteries (except for PAGlink series V-mount batteries and Patona Premium Battery for BP-190WS)
    • 16.8V max and 11V cutoff operating voltage
    • Standard 15mm LWS rods
    • D-Tap input and USB-C input/output available after powering off
    • D-Tap, USB-A, and DC output are unavailable after powering off

    • SmallRig V-Mount Battery Adapter Plate with Dual 15mm Rod Clamp
    • SmallRig 942 Super Lightweight 15mm LWS Rod Bracket v3
    • 4 x Mounting Screw
    • Allen Key

    Power
    Power Input
    D-Tap: 11 to 16.8 VDC at 5 A
    USB-C: VDC
    Maximum Load
    271 W
    Power Output
    D-Tap: 14.8 VDC at 5 A
    DC Jack: 8 VDC at 3 A
    DC Jack: 12 VDC at 3 A
    DC Jack: 12 VDC at 3 A
    USB-C: VDC
    USB-A: 12 VDC at 3 A
    General
    Camera Power Method
    Connector
    Inputs/Outputs
    1x D-Tap
    3x DC Jack
    1x USB-C
    1x USB-A
    Plate Front / Battery Mount
    V-Mount
    Plate Rear Mount
    1/4"-20 Female, 15 mm Rod Clamp
    Number of Battery Bays
    1
    Accessory Mounting
    1/4"-20 Female
    Material of Construction
    Aluminum Alloy
    Indicator
    LED
    Dimensions
    16.87 x 10.8 x 3.3 cm
    Weight
    337 g
    Environmental
    Operating Temperature
    65°C
