SmallRig Pro Adjustable Arca-Type Plate and V-Mount Battery Interface System

Regular price R 4,745.00
Sale price R 4,745.00 Regular price R 4,745.00
Tax included. Shipping calculated at checkout.

5227

Low stock

Choose PayGate at checkout for MobiCred Payments.

SHORT DESCRIPTION

  • V-Mount Battery Plate
  • Arca-Type Quick Release Receiver + Plate
  • Modular LCD Screen Protection Bracket
  • Bidirectional USB-C, D-Tap Output Ports
  • Plate Tilts 90° for Access to Camera
  • Overcurrent and Temperature Protection

Payment methods
    SmallRig Pro Adjustable Arca-Type Plate and V-Mount Battery Interface System

    R 4,745.00

    The SmallRig Pro Adjustable Arca-Type Plate and V-Mount Battery Interface System is a compact, all-in-one power solution that puts a V-mount battery on your mirrorless camera and distributes power to several devices at once. The kit combines a V-mount battery plate with D-Tap and USB-C outputs, an Arca-Swiss quick release plate and an LCD screen protector.

    The Arca-Swiss baseplate, with its adjustable locking lever, accepts most Arca-Swiss plates and lets cages and L-shaped handles slide straight in, while its retractable design suits cameras of different sizes. D-Tap and USB-C ports are placed to stay clear of the camera and top handle, and the USB-C port takes up to 65W PD input, turning the plate into a V-mount battery charger.

    The plate rotates through 180°: 0° for compact storage, 90° for low-profile mounting and 180° for screen access. A stainless steel gear lock keeps footage wobble-free, damping stops the battery from dropping as it turns, and a trigger safety lever prevents accidental release. Cable clips and an elastic hook-and-loop strap keep cables under control.

    The SmallRig Pro Adjustable Arca-Type Plate and V-Mount Battery Interface System suits most flip-screen mirrorless cameras.

    Additional Details

    • Bidirectional USB-C ports power accessories and recharge the battery.
    • D-Tap output ports power other cine accessories.
    • Battery plate features overcurrent and temperature protection.
    • Rotate the battery plate 90° to create more room for your camera's back articulating display.
    • The LCD protector bracket holds the back display in place when open, protecting it from damage, and can be removed when not in use.
    • Cable clips and an elastic hook-and-loop strap are included for organised cable management.

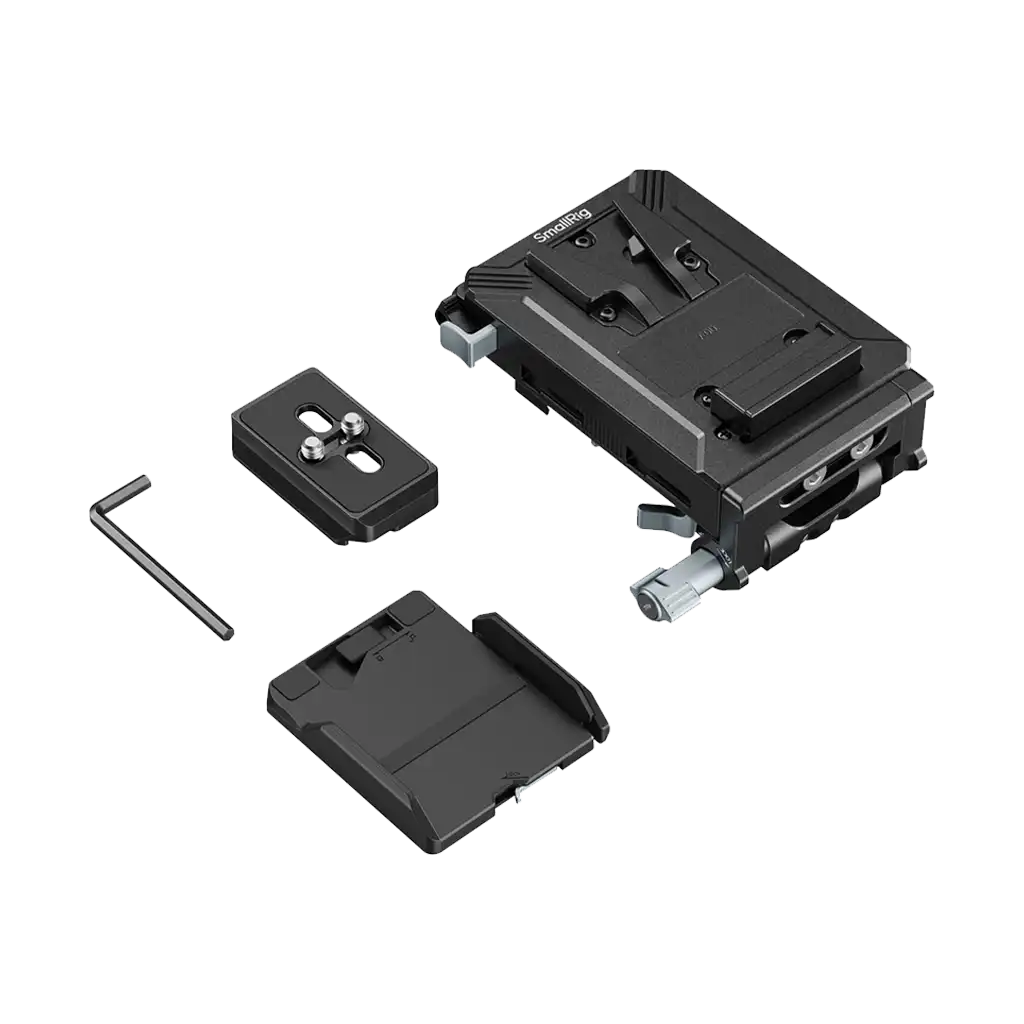

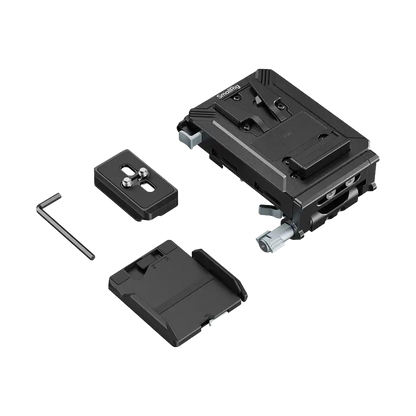

    SmallRig Pro Adjustable Arca-Type Plate and V-Mount Battery Interface System

    • SmallRig V-Mount Battery Plate
    • SmallRig Arca-Type Quick Release Plate
    • SmallRig LCD Screen Protection Bracket
    • SmallRig Cable Clip Set
    • SmallRig Hook-and-Loop Strap
    • SmallRig Allen Key

    Inputs/Outputs
    USB I/O
    2 x USB-C Female Input/Output
    Power I/O
    3 x D-Tap Output
    Power
    Power Source
    Battery
    Battery Type
    1x V-Mount
    Physical
    Mounting
    1x Arca-Type Receiver
    1x Arca-Type Quick Release Plate
    1x Hook-and-Loop Safety Strap
    Colour
    Black
    Material of Construction
    Aluminium Alloy, Stainless Steel, Silicone, PC, Fibreglass
    Dimensions
    121.5 x 103.5 x 98 mm
    Weight
    452.8 g
