SmallRig x Caleb Pike VB212 Mini V-Mount Battery

R 11,440.00
R 11,440.00 R 11,440.00
Tax included. Shipping calculated at checkout.

4293

Sold out
Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • 212Wh Lithium-Ion V-Mount Battery
  • Supports up to 10A Draw
  • 2 x 14.8V D-Tap Outputs
  • USB-C Outputs, 2 x DC Barrel Outputs
  • USB-C Input/Output
  • USB-C Fast PD Charging up to 140W
  • Ultracompact, Travel-Friendly Size

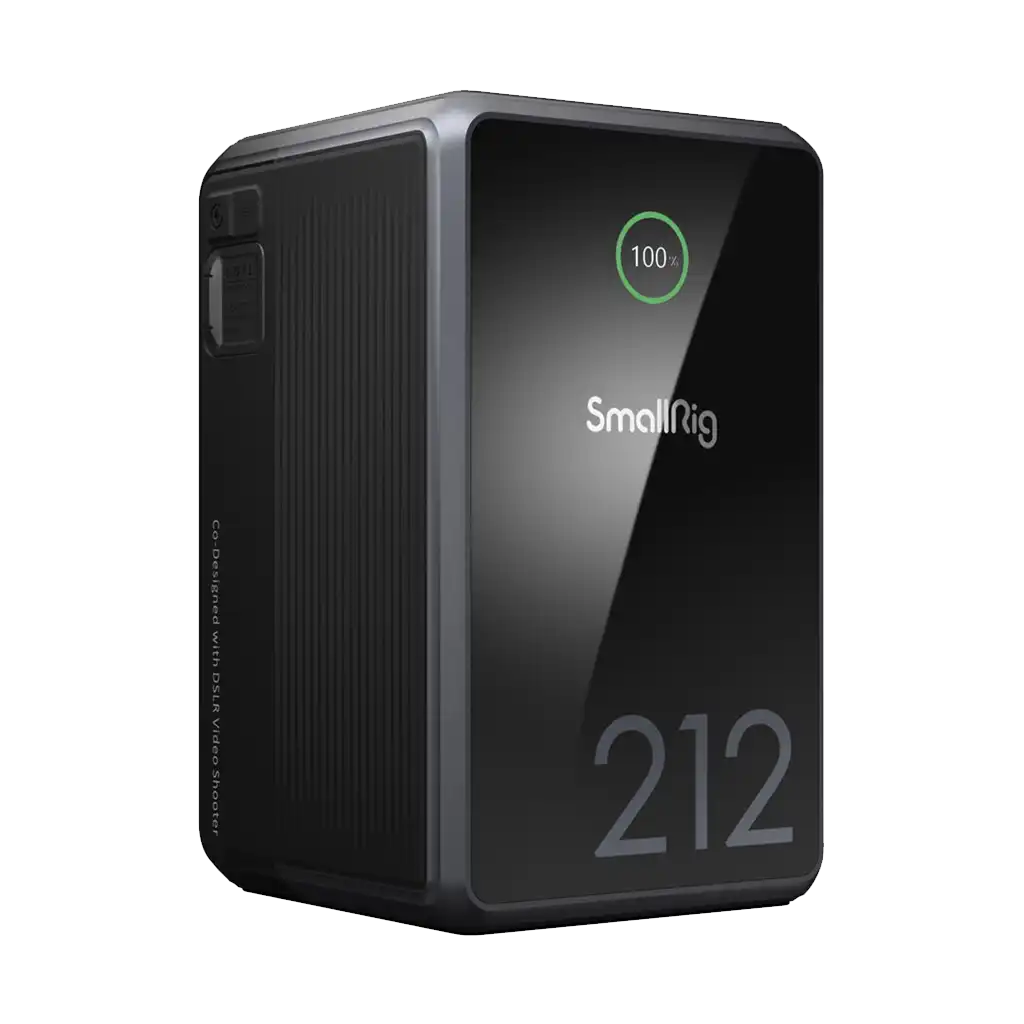

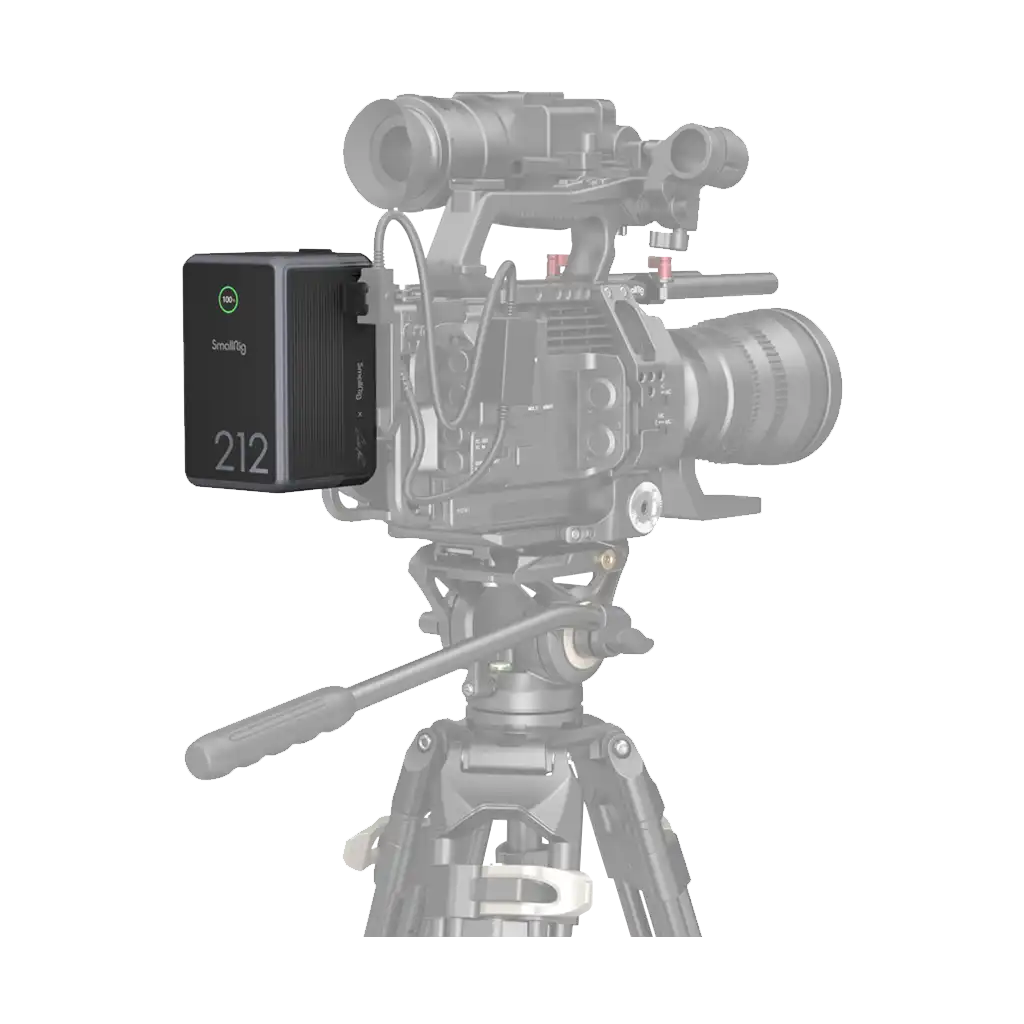

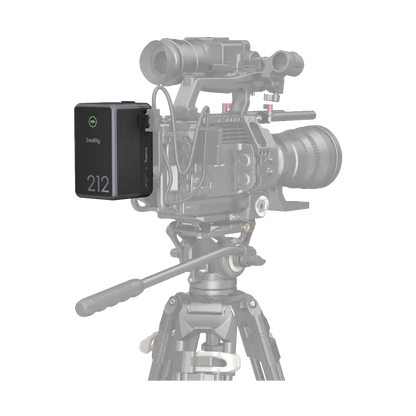

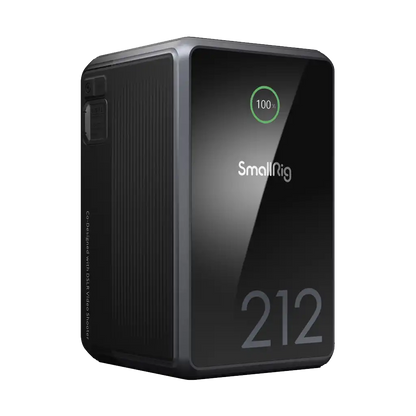

    The SmallRig x Caleb Pike VB212 Mini V-Mount Battery is a lightweight and compact battery with a maximum capacity of 212Wh and supports up to a 10A draw with a nominal 14.76V output. This makes it well-suited for powering handheld cameras, drones, and gimbals.

    The SmallRig x Caleb Pike VB212 Mini V-Mount Battery provides multiple accessory ports, including one 14.8V D-tap output, one 8 VDC barrel output, one 12 VDC barrel output, one USB-C output, and one USB-A output for powering various accessories, cameras, or mobile devices. This battery can be charged with a standard V-mount charger, an optional D-Tap charger or the USB-C input/output with a PD fast charger. On the front, you will also find a bright OLED display showing remaining battery capacity and status.

    Main Features at a Features

    • Intelligent BMS chip supports 140W (max) fast charging; fully charged in 2.5 hours
    • High-capacity LG battery cell endures repeated charging and discharging; safe and stable
    • Highly integrated design, ultracompact, and travel friendly

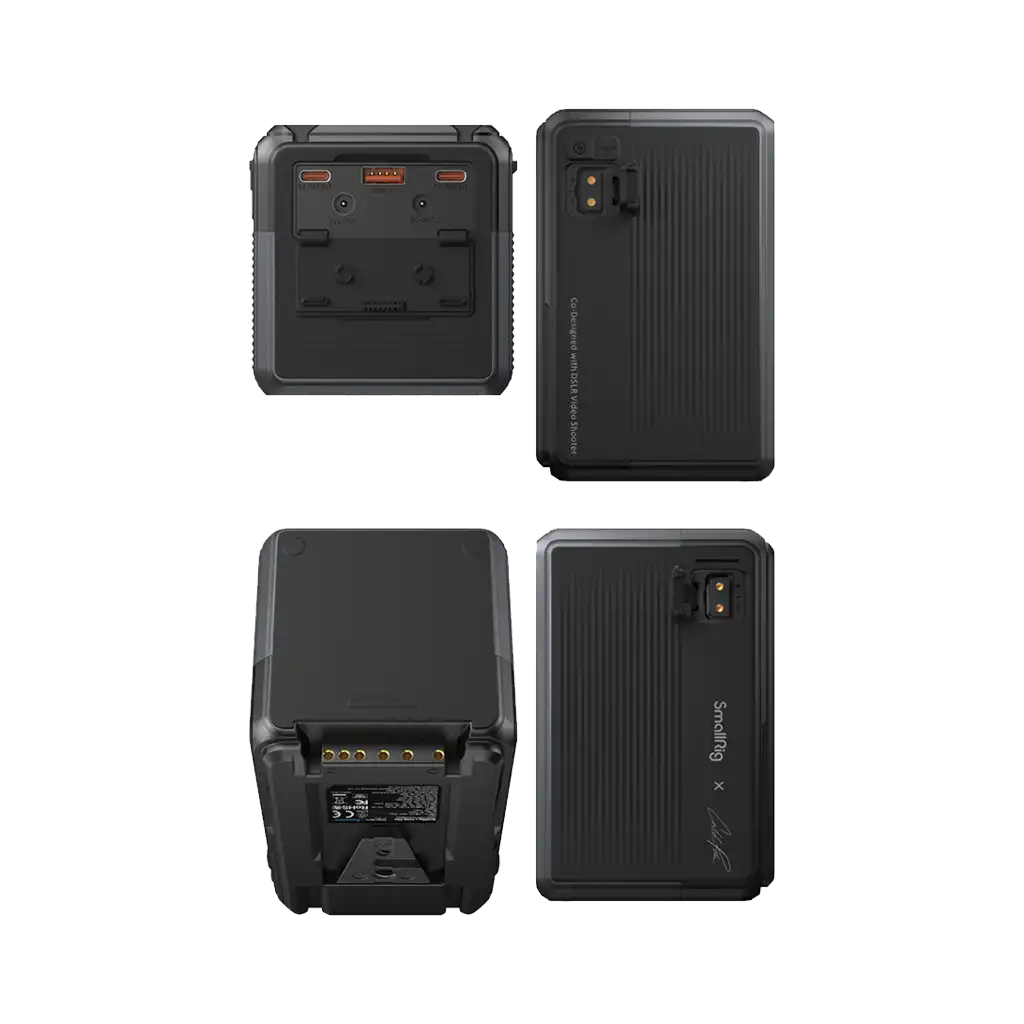

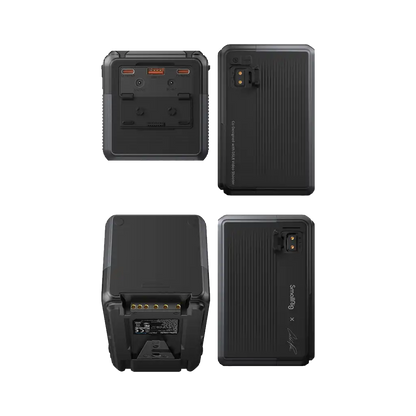

    • Multiple interfaces: Two USB-C ports, two D-tap ports, a USB-A port, an 8 VDC barrel output, and a 12 VDC barrel output
    • Each interface adopts a parallel circuit to allow simultaneous USB-C and USB-A fast charging
    • Aluminium, silicone, TPU, and PC V0 materials; four layers of aluminium frames on the inside with silicone coating on the outside make the battery robust, drop-proof, heat-resistant, and flame-retardant
    • Durable, scratch-resistant plastic and acrylic front cover
    • TFT display shows battery status clearly and accurately

    Charging Protocols

    • V-mount: 14.76V, 19A (max.)
    • D-tap 1 : 14.76V, 10A (max.)
    • D-tap 2: 14.76V, 6A (max.)
    • 8V output: 8V, 3A (max.)
    • 12V output: 12V, 3A (max.)
    • USB-C1 / USB-C2 PD3.1 / QC2.0 / QC3.0 / PPS / AFC / DCP-1.5A / APPLE-2.4A
    • USB-A QC2.0 / QC3.0 / AFC/ DCP-1.5A / APPLE-2.4A

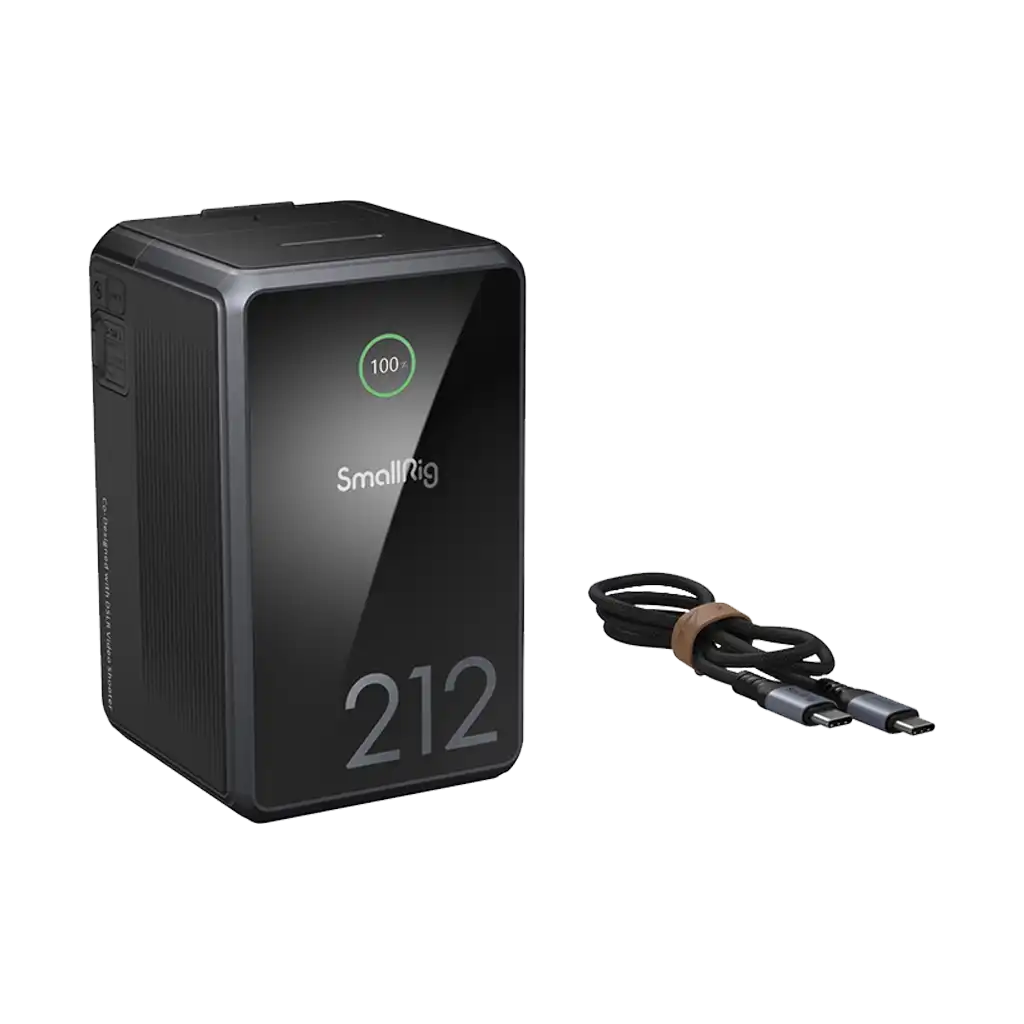

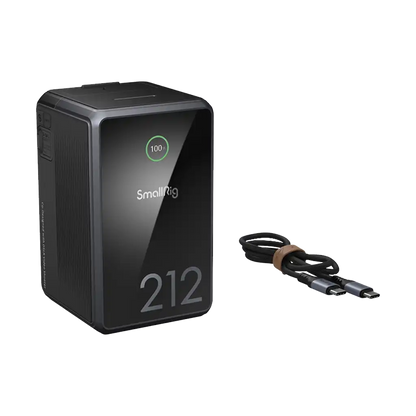

    • SmallRig x Caleb Pike VB212 Mini V-Mount Battery
    • SmallRig USB-C Charging Cable (240W)

    Mount / Series Type
    V-Mount
    Chemistry
    Lithium-Ion
    Battery Capacity
    212.54 Wh
    Output Voltage
    14.76 VDC
    Maximum Load
    212 W, 10 A
    Accessory I/O
    2x USB-C Input/Output 140 W Regulated
    1x USB-A Input/Output 5 V / 3 A, 9 V / 3 A, 12V / 3A, 15V / 3A, 20 V / 5 A, 28 V / 5 A Regulated
    2x D-Tap / P-Tap Output 14.76 V, 6 A Regulated
    1x Barrel 2.1 mm Output 8 V, 3 A Regulated
    1x Barrel 2.5 mm Output 12 V, 3 A Regulated
    USB Output
    5 V, 3 A
    9 V, 3 A
    12 V, 3 A
    15 V, 3 A
    20 V, 5 A
    28 V, 5 A
    Charging Voltage
    11.2 VDC
    Operating Temperature
    -15 to 60°C
    Charging Temperature
    0 to 50°C
    Certifications
    CE, FCC, PSE, RCM, RoHS
    Environmental Resistance
    No
    Dimensions (W x H x D)
    130 x 83 x 80 mm
    Weight
    1.31 kg
