Sony DVF-EL1 Electronic Viewfinder

R 0.00
R 0.00
Tax included. Shipping calculated at checkout.

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • For FX5 Cinema Camera
  • 0.58" 7.08m-dot OLED Display
  • 0.90x Magnification
  • Mounts Securely to Top of Camera
  • Tilts Upwards 90°

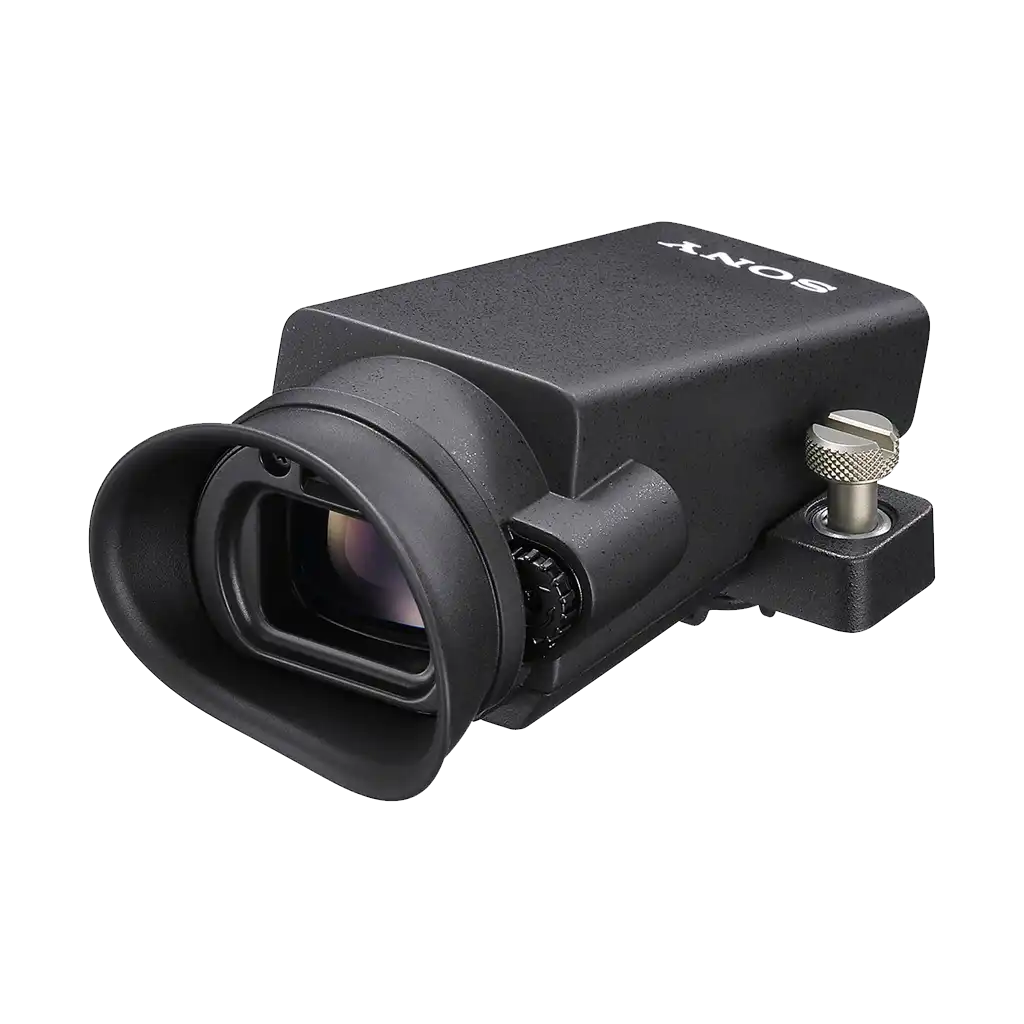

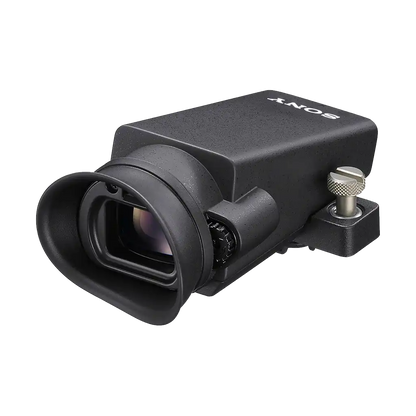

    The Sony DVF-EL1 Electronic Viewfinder is a separately available accessory for your Sony FX5 to maximise your monitoring options. This high-quality 0.58" 7.08m-dot OLED display further features a 0.90x magnification.

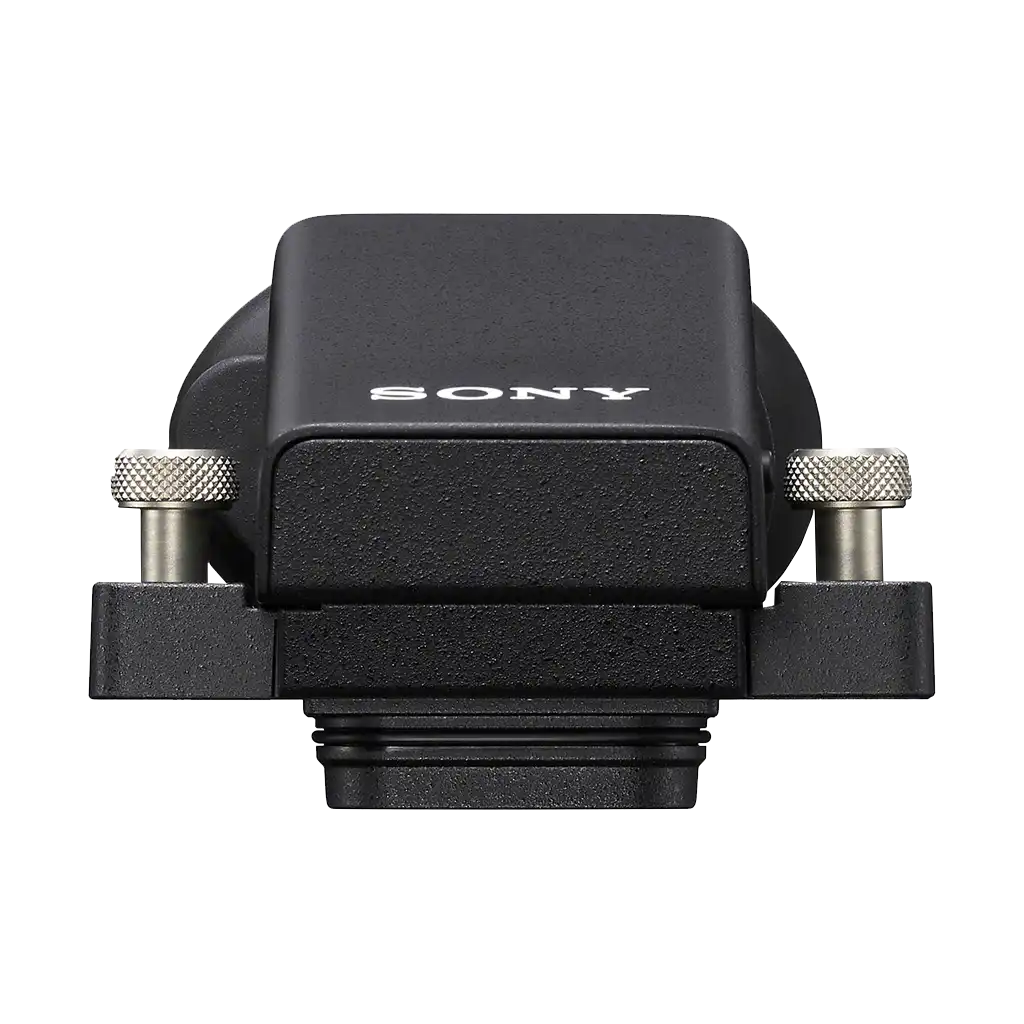

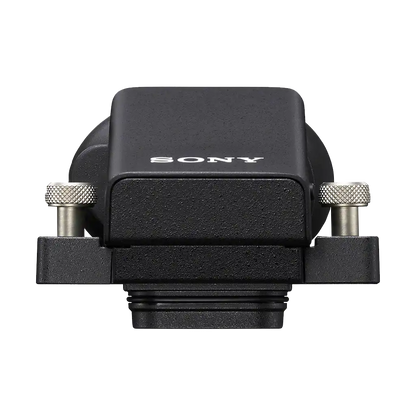

    The Sony DVF-EL1 Electronic Viewfinder mounts directly to the top of the camera via the proprietary port, and to secure it, you will find two 1/4"-20 screws to secure it. It can also tilt upwards 90° for more flexible monitoring positions.

    Compatibility

    • Sony Cinema Line FX5 Camera

    Main Features at a Glance

    • The detachable OLED viewfinder features a wide colour gamut equivalent to DCI-P3 with 10-bit colour support. IT also enables HDR monitoring.
    • The display has a 0.90x magnification, and there are two shooting options: Standard and Zoom Out. The Zoom Out option provides enhanced visibility.

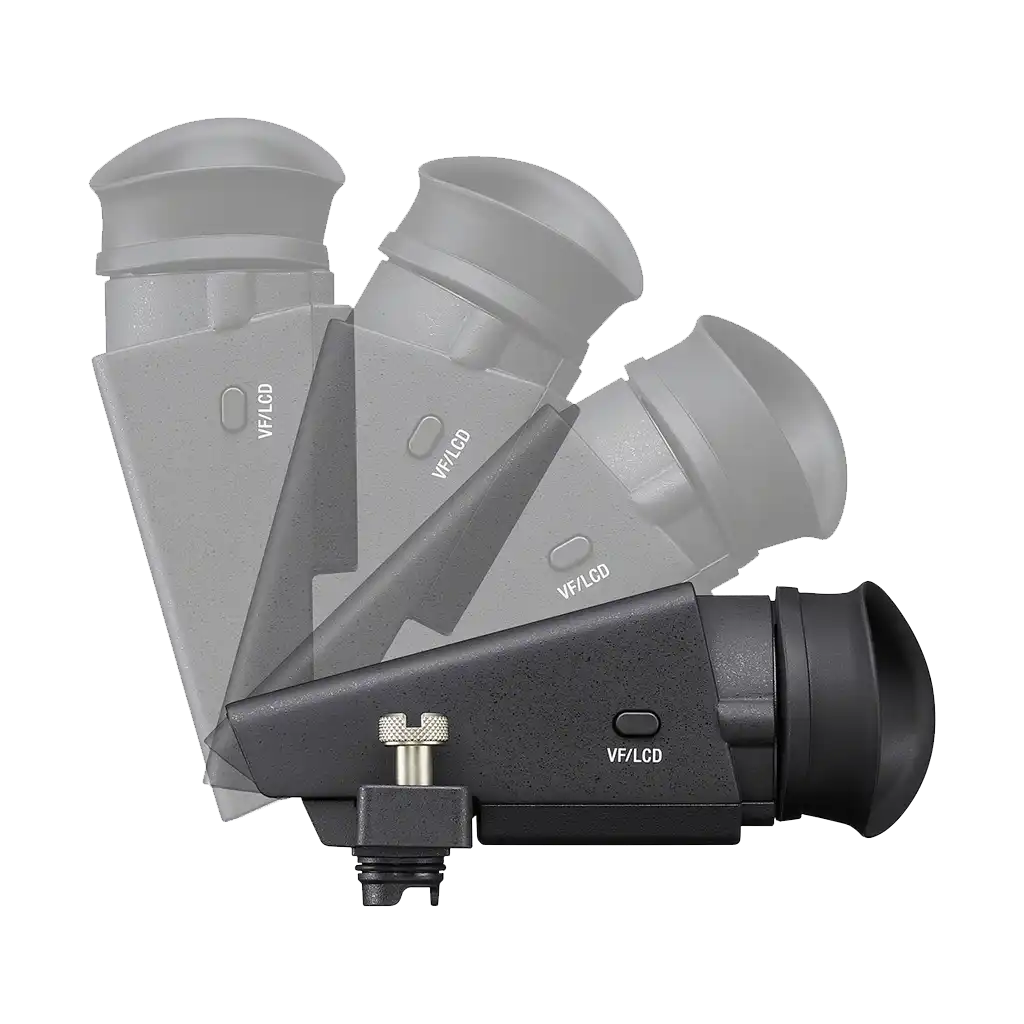

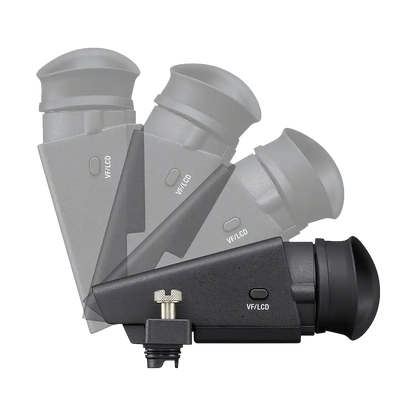

    • Vertical tilt is possible from 0-90°. The eyepiece cup is detachable and can be reversed for left- or right-eyed shooting. Additionally, removing the cup allows for closer viewing, which may be a benefit for users wearing glasses.
    • The viewfinder comes with a protective cap for the terminals, and this cap can be stored in the viewfinder body when not in use.

    • Sony DVF-EL1 Electronic Viewfinder
    • Sony Eyepiece Cup
    • Sony Terminal Protect Cap

    Display
    Panel Type
    OLED
    Display Size
    0.58" / 1.5 cm
    Aspect Ratio
    16:9
    Contrast Ratio
    Near Infinite (Black Pixels Emit No Light)
    Optics
    Diopter Correction
    -4.0 to +3.0
    Inputs / Outputs
    Inputs/Outputs
    1x Proprietary Camera Input
    Power Consumption
    1.6 W
    General
    Operating Conditions
    0 to 40°C
    Storage Conditions
    -20 to 55°C
    Dimensions
    94.9 x 59.9 x 46.1 mm
    Weight
    95.7 g
