The Sony PMW-1000 XDCAM (HD422) SxS Memory Recording Deck can record a wide range of XAVC and XDCAM codecs from any HD-SDI source onto SxS Cards.
The Sony PMW-1000 XDCAM (HD422) SxS Memory Recording Deck can record a wide range of XAVC and XDCAM codecs from any HD-SDI source onto SxS Cards.
Features:
- Can record a wide range of XAVC and XDCAM codecs
- Provides outstanding MPEG HD422 picture quality
- 24-bit audio recording capability
- RS-422 interface and Gigabit Ethernet enabled
Overview:
The Sony PMW-1000 XDCAM SxS Memory Recording Deck can record a wide range of XAVC and XDCAM codecs from any HD-SDI source onto SxS Cards. The PMW-1000 provides outstanding MPEG HD422 picture quality as well as an uncompromising eight-channel (HD-SDI), 24-bit audio recording capability, all packed in a compact half-rack-size deck. In addition to MPEG HD422, XAVC Intra HD Record/Playback is supported, as well as MPEG IMX and DVCAM formats in the SD domain. The RS-422 interface and Gigabit Ethernet enables the PMW-1000 to be used as a player deck for linear editing and a feeder deck for non-linear editing.
Details:
- Two ExpressCard SxS Memory Card Slots
- 50 Mbps MPEG HD422 recording as MXF files (UDF mode only)
- SD Recording and Playback (DVCAM) standard
- Record up to 4 hours 50 Mbps MPEG HD422 in camcorder using two 64 GB SxS-1A memory cards (must be purchased separately)
- UDF (Professional Disc compatible) file format mode recording and playback on SxS memory cards to have similar high res files and workflows with existing Professional Disc and XDCAM HD422 memory products (i.e. PMW-100/160/200/500 and PMW-50)
- 16:9, 3.5 inch color LCD
- SDI input for recording baseband signals to SxS cards
- SDI output, HDMI output, and Composite output
- SuperSpeed USB 3.0 interface for connecting hard drive to PMW-1000 to copy files from cards to the hard drive
- FAT (XDCAM EX compatible) file format mode playback from SxS memory cards to have similar high res files and workflows with existing XDCAM EX camcorders which record MPEG-2 in the .MP4 file wrapper

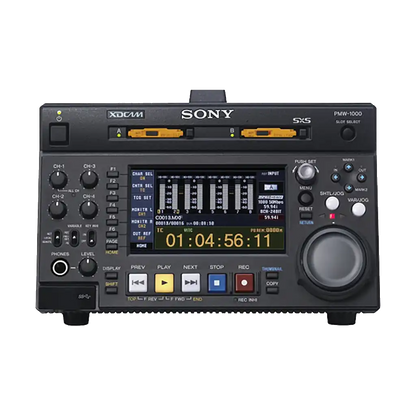

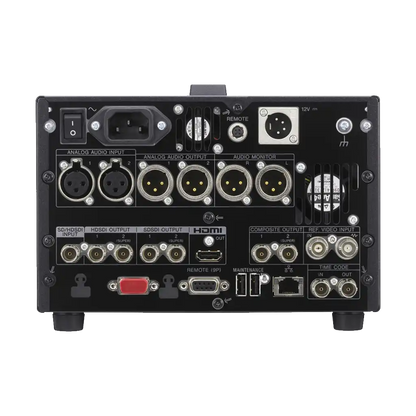

Sony PMW-1000 HD422 SxS Memory Recorder Deck
| Recording/Playback | Video MPEG HD422 (CBR, 50 Mb/s) MPEG HD: HQ mode (VBR, maximum bit rate: 35 Mb/s), SP mode (CBR, 25 Mb/s), LP mode (VBR, maximum bit rate: 18 Mb/s), MPEG IMX (CBR, 50/40/30 Mb/s) DVCAM: CBR, 25 Mb/s, XAVC: CBR, 100 Mb/s 1 |
| Recording/Playback | Audio MPEG HD422: 8-channel/24-bit/48 kHz MPEG HD: 4-channel /16-bit /48 kHzM MPEG IMX: 8-channel/16-bit/48 kHz or 4-channel/24-bit/48 kHz DVCAM: 4-channel/16-bit/48 kHz, XAVC: 8-channel/24-bit/48 kHz 2 |
| Recording/Playback | Proxy Video: MPEG-4 |
| Recording/Playback | Proxy Audio: A-law (8-channel/8-bit/8 kHz) |
| Recording/Playback Time | XAVC exFAT/MXF (100 Mb/s CBR) Approximately 120 min (128 GB), Approximately 60 min (64 GB), Approximately 30 min (32 GB), Approximately 15 min (16 GB) |
| Recording/Playback Time | MPEG HD422 UDF/MXF (50 Mb/s CBR) Approximately 240 min (128 GB), Approximately 120 min (64 GB), Approximately 60 min (32 GB), Approximately 30 min (16 GB) |
| Recording/Playback Time | MPEG HD UDF/MXF (35 Mb/s VBR) Approximately 360 min (128 GB), Approximately 180 min (64 GB), Approximately 90 min (32 GB), Approximately 45 min (16 GB) FAT/MP4 (35 Mb/s VBR) Approximately 400 min (128 GB), Approximately 200 min (64 GB), Approximately 100 min (32 GB), Approximately 50 min (16 GB), FAT/MP4 (25 Mb/s CBR) Approximately 560 min (128 GB), Approximately 280 min (64 GB), Approximately 140 min (32 GB), Approximately 70 min (16 GB) |
| Playback Time | MPEG IMX UDF/MXF (50 Mb/s Intra) Approximately 240 min (128 GB), Approximately 120 min (64 GB), Approximately 60 min (32 GB), Approximately 30 min (16 GB) |
| Recording/Playback Time | DVCAM UDF/MXF (25 Mb/s CBR) Approximately 440 min (128 GB), Approximately 220 min (64 GB), Approximately 110 min (32 GB), Approximately 55 min (16 GB) FAT/AVI (25 Mb/s CBR) Approximately 520 min (128 GB), Approximately 260 min (64 GB), Approximately 130 min (32GB), Approximately 65 min (16 GB) |
| Search Speed Range | Shuttle Mode: -20 times to +20 times normal speed (max +/-50 by Remote) Variable Mode: -2 times to +2 times normal speed Jog Mode: -1 time to +1 time normal speed (-2 to +2 by Remote) Fast Forward/Reverse: -35/+35 times normal speed (max +/-50 by Remote) |
| Media Type | SxS Memory Card Drive, ExpressCard/34 (x2) |
| Reference Input | BNC (x2) (including loop-through), HD Tri-level sync (0.6 Vp-p/75 Ω/negative) or SD blackburst/composite sync (0.286 Vp-p/75 Ω/negative) |
| HD-SDI Input | BNC (x1) (HD/SD switchable) HD-SDI: SMPTE 292M (w/embedded audio) SD-SDI: SMPTE 259M (w/embedded audio) |
| Analog Audio Input | XLR-type 3-pin (female) (x2) (channel selectable), +4/0/-3/-6 dBu (selectable), 10 kΩ, balanced |
| Digital Audio Input (AES/EBU) | Timecode Input: BNC (x1), SMPTE timecode, 0.5 to 18 Vp-p / 3.3 kΩ / unbalanced
Analog Composite Output: BNC (x2), 1: 1.0 Vp-p/75 Ω/negative, SMPTE 170M 2: 1.0 Vp-p/75 Ω/negative, SMPTE 170M, character On/Off HD-SDI Output BNC (x2), 1: SMPTE 292M (w/embedded audio) 2: SMPTE 292M (w/embedded audio), character on/off SD-SDI Output BNC (x2), 1: SMPTE 259M (w/embedded audio) 2: SMPTE 259M (w/embedded audio), character on/off HDMI Monitor: TYPE A 19-pin (x1) Video : 1080i, 720P, 480i, 480P, 576i, 576P Audio : 2-ch/16-bit/48 kHz Analog Audio Output XLR-type 3-pin (male) (x2) (channel selectable), +4/0/-3/-6 dBu (selectable), 600 Ω, Lo-z, balanced Analog Audio Monitor: XLR-type 3-pin (male) (x2), +4 dBu, 600 Ω, Lo-Z, balanced
|
| Digital Audio Output | Headphone Output: JM-60 Stereo phone jack (x1), -13 dBu, 8 Ω, unbalanced Timecode Output: BNC (x1), SMPTE timecode, 1.0 Vp-p/75 Ω/unbalanced |
| Ethernet | 1 x RJ-45 1000BASE-T: IEEE 802.3ab 100BASE-TX: IEEE 802.3u 10BASE-T: IEEE 802.3 |
| Remote Input | D-sub 9-pin (female) (x1), RS-422A |
| USB | 1 x USB 3.0 |
| Maintenance | Rear: (x2) for Maintenance, USB Keyboard, USB Mouse |
| DC Input | XLR-type 4-pin (male) (x1) |
| DC Output | 4-pin (female) (x1), 12 VDC, 7.5 W |
| Battery Compatibility | V-Mount |
| AC Input | AC Input (x1), 100 to 240 V, 50/60 Hz |
| Sampling Frequency | Y: 74.25 MHz, Pb/Pr: 37.125MHz |
| Video Level | -∞ to +3 dB |
| Chroma Levels | -∞ to +3 dB |
| Set Up/Black Level | -30 IRE to +30 IRE/-210 mV to +210 mV |
| Chroma Phase | -30 to +30° |
| Phase | System Sync Phase: -15 to +15 μs System SC Phase: 0 to 400 ns |
| Sampling Frequency | 48 kHz |
| Quantization | 24-bit |
| Frequency Response | 20 Hz to 20 kHz +0.5/-1.0 dB (0 dB at 1 kHz) |
| Dynamic Range | > 90 dB |
| Distortion | < 0.05% (at 1 kHz) |
| Headroom | 20/18/16/12/9 dB (selectable) |
| Built-In Display | 4.3" (109.2 mm) 3-type color LCD monitor |
| Built-in Speaker | 1 x Monaural |
| Power Requirements | 100 to 240 VAC, 50/60 Hz, 12 VDC |
| Power Consumption | AC: 80 W, 12 VDC, 5.7 A |
| Operating Temperature | 42 to 104°F (5 to 40°C) |
| Storage Temperature | -4 to +140°F (-20 to +60°C) |
| Humidity | 20 to 90% (relative humidity) |
| Dimensions (W x H x D) | 210.0 x 132.0 x 418.0 mm (excluding protrusions) |
| Weight | 5.0 kg |
