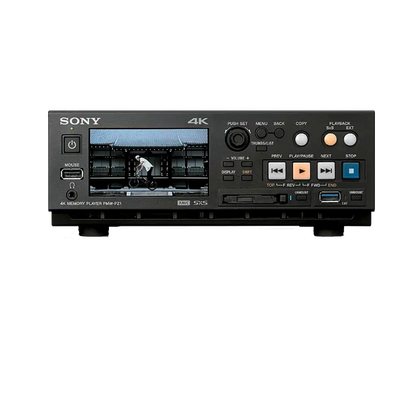

Sony PMW-PZ1 4K SxS Memory Player (Special Order)

PMW-PZ1//C

SHORT DESCRIPTION

  • Multi-Format Capability in 4K and HD
  • XAVC Intra, XAVC Long
  • 59.94/50/29.97/25/23.98 Progressive FPS
  • Single SxS Media Card Slot
  • HDMI & 3G-SDI Outputs
  • Direct Playback and Viewing Function
  • Simple Copy and Back-Up Process
  • Built-In 3.5" LCD Monitor
  • VTR-Style Front Panel Buttons

    The PMW-PZ1 4K SxS memory player is a high-quality and cost-effective playback solution for 4K shooting and post production applications. The PMW-PZ1 is equipped with an IC (hardware codec), originally created by Sony, which features multi-format playback capability for 4K (including 59.94p, 50p, 29.97p, 25p, 23.98p and 24p), QFHD, and HD - supporting a wide variety of formats. These include XAVC Intra and XAVC Long, XAVC S-Long, MPEG HD422 and MPEG HD. This wide variety of formats can be played safely and smoothly by the integrated hardware codec originally created by Sony. The PMW-PZ1 is equipped with an SxS card slot, a HDMI output, 3G/HD-SDI outputs (x4), an audio output, LCD color monitor and more. This combination of versatile interfaces enables seamless playback, copying and monitoring of 4K and HD video across a diverse range of applications, from location shoots to post production to video walls.

    Multi-format capability in 4K and HD

    The PMW-PZ1 has a highly flexible multi-format playback capability for 4K and HD It can playback a variety of formats including XAVC Intra, XAVC Long, XAVC S-Long, MPEG HD422 and MPEG HD. This includes 4K XAVC Intra playback at 59.94p, 50p, 29.97p, 25p, 23.98p and 24p.


    Direct playback and viewing function

    The PMW-PZ1 allows direct playback from SxS memory cards or from an external USB storage device. (It does not mean that PMW-PZ1 give a performance guarantee for real-time video/audio playback, etc in all external storages. Please use appropriate media depending on bit rate of the data. (We recommend SSD or Raid type HDD).)


    Simple copy and back-up process

    The PMW-PZ1 is equipped with a USB interface designed for connection to an external USB storage device. This enables users to copy data in SxS media directly to external storage without the need for other devices. The PMW-PZ1 creates a copy log (csv format) in the external USB storage device, which helps users to easily check the file names of copied files. For greater accuracy in the copy process, users can activate a verify function before copying to avoid any copy errors.


    Versatile control and LCD front screen

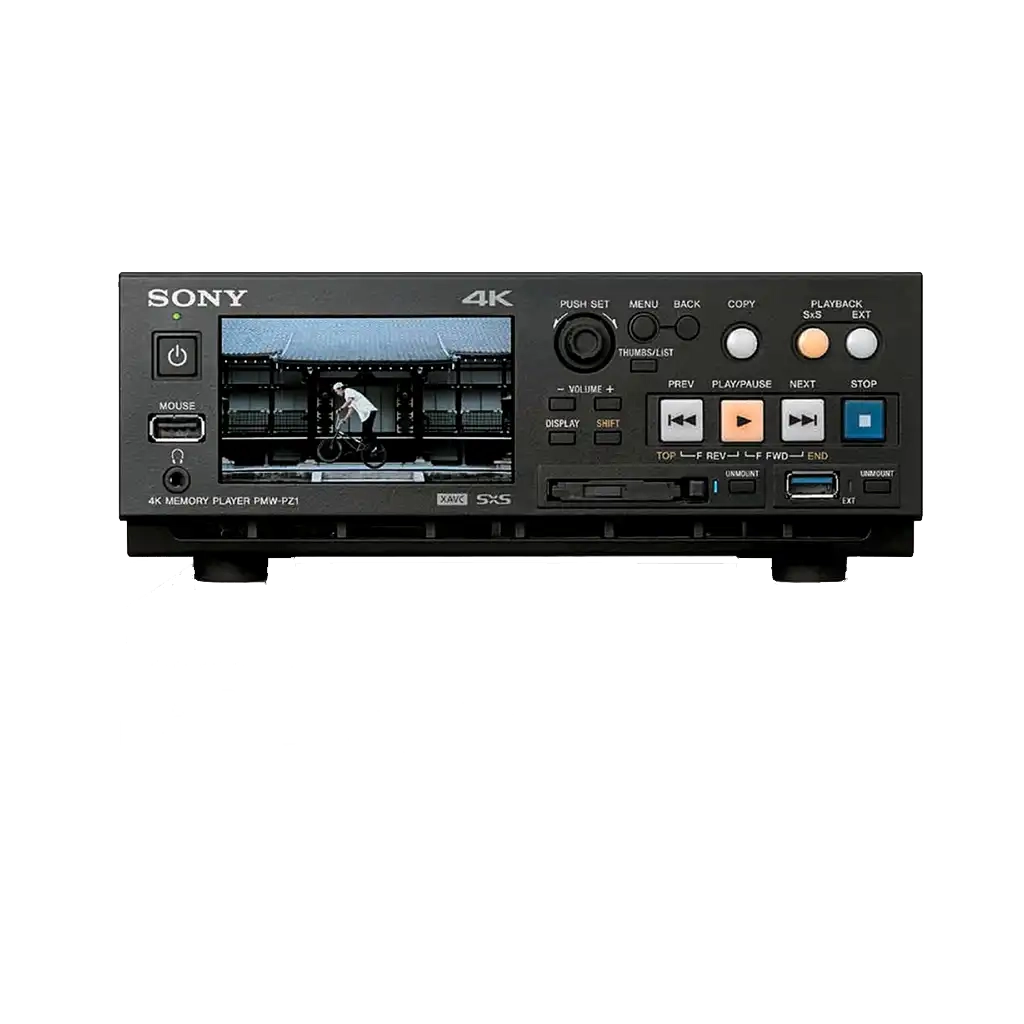

    The PMW-PZ1 allows for easy control direct from the front panel, which features a high quality 3.5 inch colour LCD front screen. Control is also possible with USB mouse through the USB interface.


    Choice of interfaces

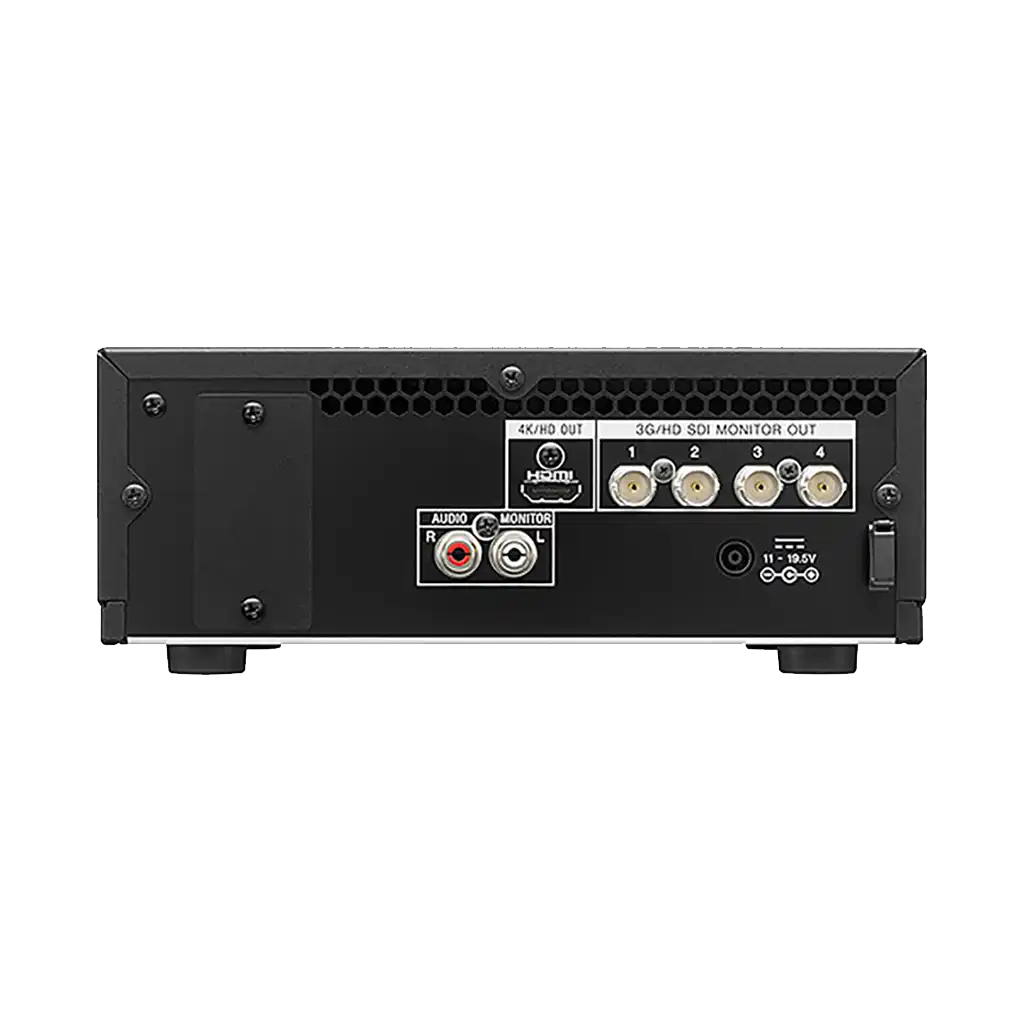

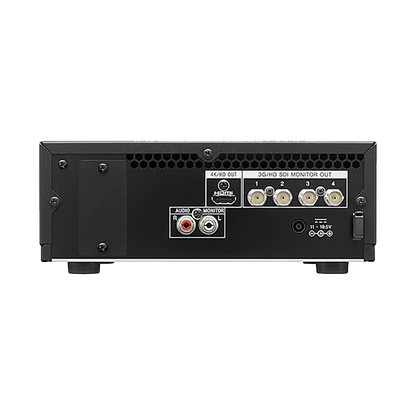

    Connectivity and inter-operability with other devices are vital for any memory player to enable quick and easy operation. The PMW-PZ1 meets this need with a host of versatile input and output interfaces, including a HDMI port and four 3G/HD-SDI outputs*1. Through the HDMI port, the PMW-PZ1 can be connected to professional monitors and projectors, or even consumer TVs, for the most flexible operation under various production circumstances. An independent audio output is also available on the player. The PMW-PZ1 is equipped with two USB interfaces – one for connection to external USB storage, and the other to a mouse device for the user to control the PMW-PZ1. Not only does this enable data to be copied, but also allows the user to play stored clip data from the external USB storage device*2.
    *1 3G/HD-SDI output : 2 sample interleave, Square division
    *2 Please use appropriate media depending on bit rate of the data.


    Updated Features (Latest Version)

    Additional format: XAVC Intra 4K (4096x2160) Class 480 29.97P/25P/24P/23.98P and more
    Remote controllable via a web browser on the operator’s PC or mobile device
    Supports the ODS-D77U/55U (copy only) and the PDW-U2 (review only) for greater operational flexibility
    Supports a Play List feature that enables the operator to select and play clips in the desired order
    Assignable In-Out points allow just the required part of a clip to be played
    Down-converted HD images can be output separately from 4K output for monitoring
    Operators can now select specific clips to copy to an external device
    Audio track 7/8ch select mode
    Audio out on/off on searching


    Sony PMW-PZ1 4K SxS Memory Player
    AC Adaptor 19.5V (1) without AC cable
    XLR(4pin) to DC conversion cable (1)
    Leaflet: Before Using this Unit (1), Catalyst browse information (1)
    CD-ROM : Operating instructions in PDF (1)

    General

    Power RequirementsDC 11 - 19.5V
    Power ConsumptionApprox. 30 W (4K XAVC Intra 60p Playback)
    Approx. 35 W (Copy from SxS card to external USB Storage)
    Operating Temperature5°C to 40°C (41°F to 104°F)
    Storage Temperature-20°C to +55°C (-4°F to + 131°F)
    MassApprox. 2.3kg
    Dimensions (W x H x D) *1212 x 84 x 200 mm

    Playback Format

    Pixel - 4K (4096x2160)Frame rate:
    - XAVC Intra (.MXF): Class480 : 29.97P/25P/24P/23.98P, Class300 : 59.94P/50P/29.97P/25P/24P/23.98P

    File system:
    - SxS, XQD : exFAT, UDF, FAT32
    - External Storage : exFAT, NTFS

    VBR/CBR: VBR/CBR

    Audio:
    - Linear PCM
    - 24bit 48kHz
    - Output Max 6ch
    Pixel - QFHD (3840x2160)Frame rate:
    - XAVC Intra (.MXF): Class480 : 29.97P/25P/23.98P, Class300 : 59.94P/50P/29.97P/25P/23.98P

    File system:
    - SxS, XQD: exFAT, UDF, FAT32
    - External Storage: exFAT, NTFS

    VBR/CBR: VBR/CBR

    Audio:
    - Linear PCM
    - 24bit 48kHz
    - Output Max 6ch
    Pixel - HD (1920x1080)Frame rate:
    - XAVC Intra (.MXF): Class100 : 59.94P/50P/29.97P/25P/23.98P, 59.94i/50i
    - XAVC Long (.MXF): 59.94P/50P/29.97P/25P/23.98P, 59.94i/50i
    - XAVC S (.MP4): 59.94P/50P/29.97P/25P/23.98P
    - XDCAM MPEG HD422 (.MXF): 29.97P/25P/23.98P, 59.94i/50i
    - XDCAM MPEG HD420 (.MXF): 29.97P/25P/23.98P, 59.94i/50i
    - XDCAM EX MPEG HD420 (.MP4): 29.97P/25P/23.98P, 59.94i/50i

    File system:
    - SxS, XQD: exFAT, UDF, FAT32
    - External Storage: exFAT, NTFS

    VBR/CBR: VBR/CBR

    Audio:
    - Linear PCM
    - 24bit 48kHz
    - Output Max 6ch
    Pixel - HD (1280x720)Frame rate:
    - XAVC Intra (.MXF): 59.94P/50P
    - XAVC Long (.MXF): 59.94P/50P
    - XDCAM MPEG HD422 (.MXF): 59.94P/50P
    - XDCAM MPEG HD420 (.MXF): 59.94P/50P
    - XDCAM EX MPEG HD420 (.MP4): 59.94P/50P

    File system:
    - SxS, XQD : exFAT, UDF, FAT32
    - External Storage : exFAT, NTFS

    VBR/CBR: VBR/CBR

    Audio:
    - Linear PCM
    - 24bit 48kHz
    - Output Max 6ch

    Media Drive

    Media TypeSxS Memory Card(ExpressCard/34) slot (1)

    Input/Output

    3G/HD-SDI Monitor OutputBNC (4), 3G-SDI/HD-SDI, 4K/QFHD:2-Sample Interleave output/Square Division output
    SMPTE ST 424, 425(Level A/B) / SMPTE ST 292(1080 Interlace/P/PsF, 720P) standards
    HDMI 4K/HD OutputType A 19-pin (1), output,up to 4K 60P 4:2:0 8bit
    Analog Audio OutputRCA jack (L,R) -11dBu (Reference Level)
    Headphone OutputStereo mini jack (1)
    Mousefor USB Mouse: Basic Optical Mouse(Microsoft) (1)
    External Storagefor USB3.0 Memory: PSZ-SA25, USM128GQX(Sony) (1) (Front x1 or Rear x1)
    Network1000base-T ether x1
    DC InputDC jack (11V-19.5 V)

    Other Equipment

    Display3.5-inch type color LCD monitor: 960 (H) x 3 (RGB) x 540 (V), 16:9

    Supplied Accessories

    Supplied AccessoriesAC Adaptor 19.5V (1) without AC cable
    XLR(4pin) to DC conversion cable (1)
    Leaflet: Before Using this Unit (1), Catalyst browse information (1)
    CD-ROM : Operating instructions in PDF (1)

    Notes

    *1The values for dimensions are approximate.
