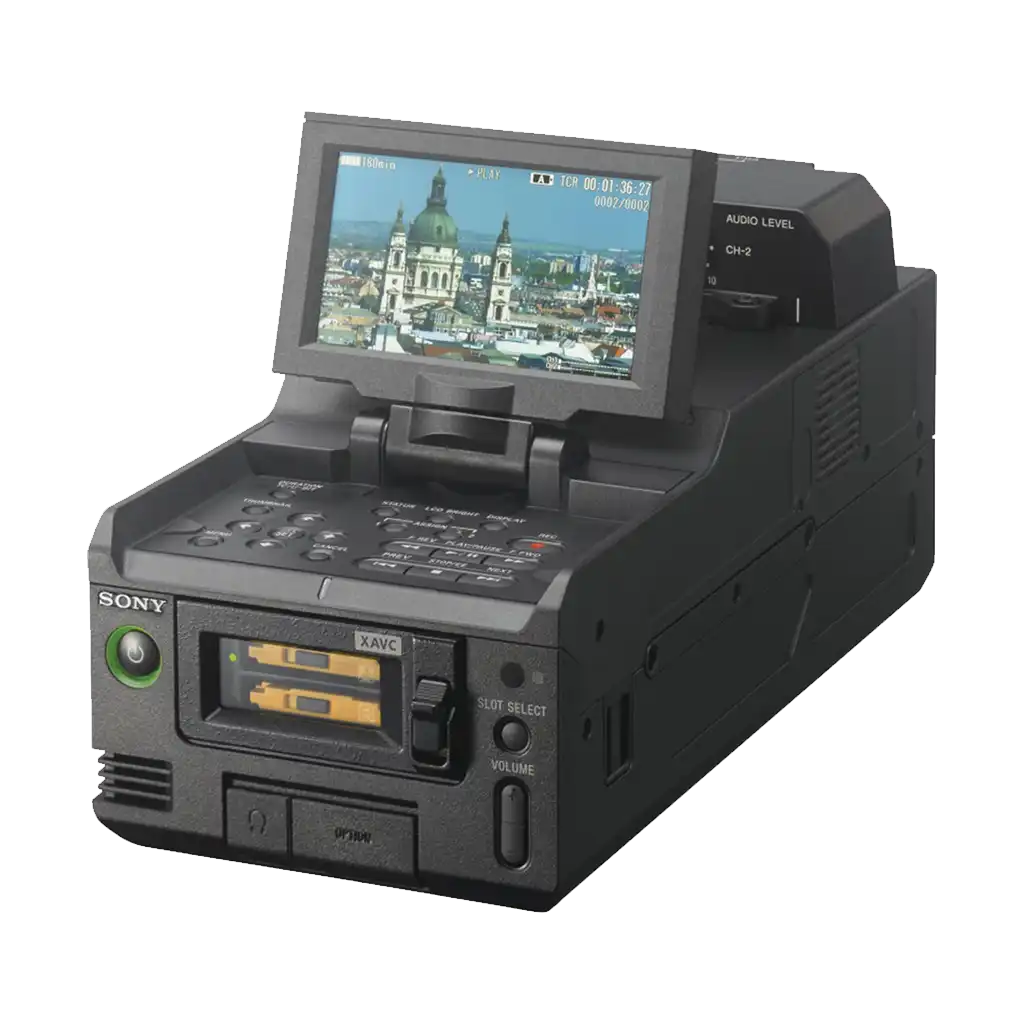

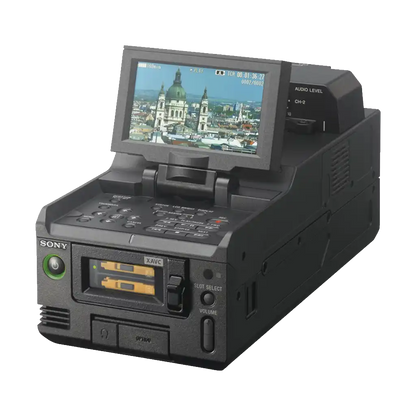

Sony PMW-RX50 SxS Card Recorder/Player (Special Order)

PMW-RX50

SHORT DESCRIPTION

  • XAVC Intra & Long GOP Codec Support
  • Resolutions up to 1920x1080 59.94p/50p
  • MPEG HD422, HD420, IMX, & DVCAM Support
  • Two SxS Card Slots
  • 3.5" LCD Screen
  • 3G-SDI I/O, HDMI Out, i.LINK Interface
  • Detachable XLR Input Audio Box
  • Copy Files to External HDD via USB 3.0
  • Sony BP-U Battery or DC Operation
  • DC Output for Optional Wireless Adapter

    The PMW-RX50 mobile recorder plays and records Full HD XAVC Intra and XAVC Long GOP, as well as MPEG HD 422 50 Mbps, MPEG HD 420 35Mbps, MPEG IMX and DVCAM, making it the ideal companion deck for XAVC camcorders. As the successor to the PMW-50, the PMW-RX50 has a lot of attractive features, including dual SxS memory card slots offering dual simultaneous recordings, 3G HD/SD-SDI interface and 1080 59.94/50P workflow support and conversion output from 1080/59.94P (50P) to 1080/59.94i (50i). The recorder also has XLR audio input via a removable Audio Box. DC output is also provided for the CBK-WA100 mobile network 3G / 4G / LTE / wireless LAN adaptor.

    Compact SxS portable playback/recording unit

    The PMW-RX50 is a lightweight, rugged handheld recorder/player offering full portability for news and field operations. The unit is designed to be tough and insensitive to vibrations and can be operated on BP-U battery.


    3.5-inch LCD panel display

    The PMW-RX50 acts as a stand-alone multi format SxS viewer or desktop SNG Card feeder.


    Supports Full HD XAVC recordings, plus popular HD/SD formats

    The PMW-RX50 plays and records Full HD XAVC Intra and XAVC Long GOP in exFAT mode. It records 1920 x 1080 59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P and 25P, as well as 1280 x720 59.94P and 50P. The PMW-RX50 also supports MPEG HD 422 50 Mbps, MPEG HD 420 35Mbps, MPEG IMX and DVCAM.


    Dual simultaneous recordings direct to SxS cards via HD/SD-SDI inputs

    The PMW-RX50 can record to two SxS memory cards simultaneously and enables second/parallel recording with embedded audio via HD/SD-SDI inputs.


    SD, MS , XQD cards and SxS Media support

    There is a flexibility of media availability, which allows user to choose the most appropriate media for their application.


    Multiple inputs and outputs including XLR audio via Audio Box

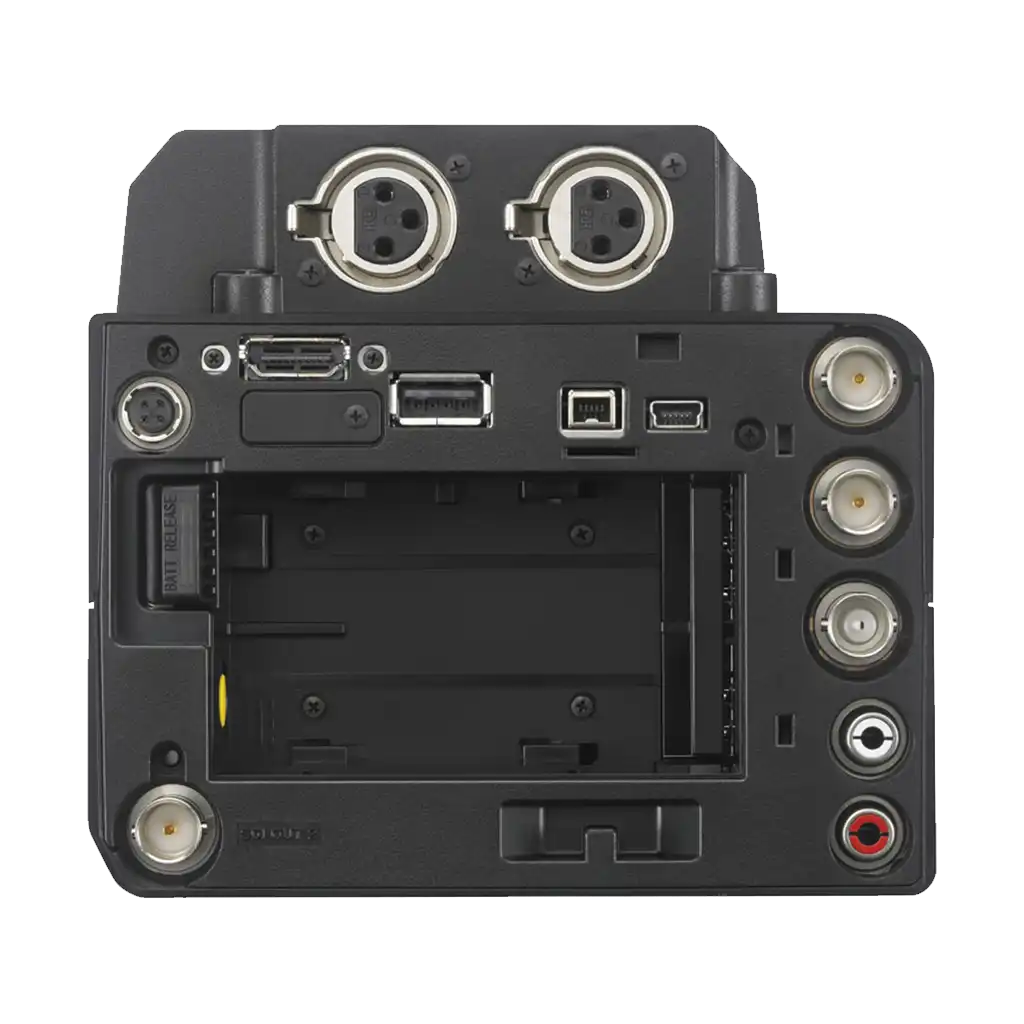

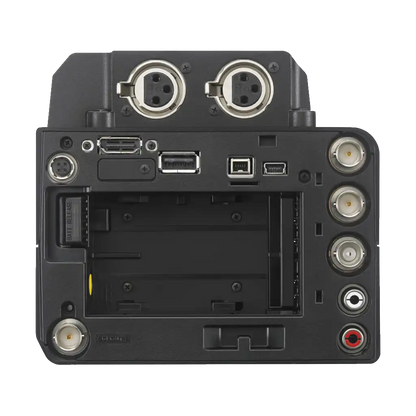

    The PMW-RX50 features an HD/SD-SDI interface along HDMI out, iLink interface, USB, stereo earphone and XLR audio input via a removable Audio Box.


    5 assignable buttons

    The PMW-RX50 has 5 assignable buttons for users to set any functions they want to use, including LCD, BRI and Display.


    Monitoring on tablet and file transfer via Wi-Fi

    DC output is provided for the CBK-WA100 mobile network 3G / 4G / LTE / wireless LAN adaptor.


    Catalyst Browse software from Sony

    Free clip management tool for both PC & Mac that supports all Sony professional formats.
    Review footage on location, add metadata and review colour corrections.
    Seamless upgrade to advanced Catalyst Prepare media preparation tool.


    Sony PMW-RX50 SxS Card Recorder/Player
    USB cable (1)
    Infrared Remote Commander (1)
    BC-U1 battery charger (1)
    Lithium battery (CR2025 for the IR Remote Commander) (1), Pre-installed to the IR Remote Commander
    Leaflet: Before Using this Unit (1)
    Shoulder strap (1)
    Side spacer (1)
    CD-ROM:
    - Operating instructions in PDF (1)

    Specifications

    General Power RequirementsDC 12 V
    Power ConsumptionApprox. 13 W
    (while recording, LCD monitor On)

    Approx. 22.5 W
    (while recording, LCD monitor On, with CBK-WA100)
    Operating Temperature0°C to 40°C
    32°F to 104°F
    Storage Temperature-20°C to +60°C
    -4°F to +140°F
    MassApprox. 1 kg (without Audio Input Adapter)
    Approx. 1.2 kg (with Audio Input Adapter)
    Dimensions (W x H x D) *1124 x 86 x 237 mm
    (without protrusions & Audio Input Adapter )

    124 x 115 x 237 mm
    (with Audio Input Adapter & without protrusions )
    Recording/Playback Format (Video)[exFAT]
    - XAVC-I mode: CBG, 223 Mbps max, MPEG-4 AVC/H.264
    - XAVC-L50 mode: VBR, 50 Mbps max, MPEG-4 AVC/H.264
    - XAVC-L35 mode: VBR, 35 Mbps max, MPEG-4 AVC/H.264
    - XAVC-L25 mode: VBR, 25 Mbps max, MPEG-4 AVC/H.264
    - HD422 mode: CBR, 50 Mbps, MPEG-2 422P@HL
    - HD420 mode: VBR, 35 Mbps, MPEG-2 MP@HL
    - DVCAM mode: DVCAM
    - IMX 50 mode: CBR, 50 Mbps, MPEG-2 422P@ML Intra
    Recording/Playback Format (Video)[UDF]
    - HD422 mode: CBR, 50 Mbps, MPEG-2 422P@HL
    - HD420 mode: VBR, 35 Mbps, MPEG-2 MP@HL
    - DVCAM mode: DVCAM
    - IMX 50 mode: CBR, 50 Mbps, MPEG-2 422P@ML Intra

    [FAT]
    - HQ mode: VBR, 35 Mbps, MPEG-2 MP@HL
    - SP mode: CBR, 25 Mbps, MPEG-2 MP@H14
    - DVCAM mode: DVCAM
    Recording/Playback Format (Audio)[exFAT]
    - XAVC-I mode: LPCM 24 bits, 48 kHz, 4 channel
    - XAVC-L50 mode: LPCM 24 bits, 48 kHz, 4 channel
    - XAVC-L35 mode: LPCM 24 bits, 48 kHz, 4 channel
    - XAVC-L25 mode: LPCM 24 bits, 48 kHz, 4 channel
    - HD422 mode: LPCM 24 bits, 48 kHz, 4 channels
    - IMX 50 mode: LPCM 24/16 bits, 48 kHz, 4 channels
    - Other mode: LPCM 16 bits, 48 kHz, 4 channels

    [UDF]
    - HD422 mode: LPCM 24 bits, 48 kHz, 4 channels
    - IMX 50 mode: LPCM 24/16 bits, 48 kHz, 4 channels
    - Other mode: LPCM 16 bits, 48 kHz, 4 channels

    [FAT]
    - HD mode: LPCM 16 bits, 48 kHz, 4 channels
    - SD mode: LPCM 16 bits, 48 kHz, 2 channels
    Recording/Playback Time (XAVC)[XAVC-I]
    Approx. 60 min with SBP-128B (128 GB) memory card
    Approx. 30 min with SBP-64AB (64 GB)/ SBS-64G1A (64GB) memory card

    [XAVC-L50]
    Approx. 240 min with SBP-128B (128 GB) memory card
    Approx. 120 min with SBP-64AB (64 GB)/ SBS-64G1A (64GB) memory card

    [XAVC-L35]
    Approx. 340 min with SBP-128B (128 GB) memory card
    Approx. 170 min with SBP-64AB (64 GB)/ SBS-64G1A (64GB) memory card

    [XAVC-L25]
    Approx. 440 min with SBP-128B (128 GB) memory card
    Approx. 220 min with SBP-64AB (64 GB)/ SBS-64G1A (64GB) memory card
    Recording/Playback Time (MPEG HD422)[UDF]
    HD 422 mode:
    Approx. 120 min with SBP-64A/ SBS-64G1A (64 GB) memory card
    Approx. 60 min with SBP-32/ SBS-32G1A (32 GB) memory card
    Recording/Playback Time (MPEG HD)[UDF]
    HD 420 mode:
    Approx. 180 min with SBP-64A/ SBS-64G1A (64 GB) memory card
    Approx. 90 min with SBP-32/ SBS-32G1A (32 GB) memory card

    [FAT]
    HQ mode:
    Approx. 200 min with SBP-64A/ SBS-64G1A (64 GB) memory card
    Approx. 100 min with SBP-32/ SBS-32G1A (32 GB) memory card
    SP Mode:
    Approx. 280 min with SBP-64A/ SBS-64G1A (64 GB) memory card
    Approx. 140 min with SBP-32/ SBS-32G1A (32 GB) memory card
    Recording/Playback Time (MPEG IMX)[UDF]
    IMX 50 mode:
    Approx. 120 min with SBP-64A/ SBS-64G1A (64 GB) memory card
    Approx. 60 min with SBP-32/ SBS-32G1A (32 GB) memory card
    Recording/Playback Time (DVCAM)[UDF]
    DVCAM mode:
    Approx. 220 min with SBP-64A/ SBS-64G1A (64 GB) memory card
    Approx. 110 min with SBP-32/ SBS-32G1A (32 GB) memory card

    [FAT]
    DVCAM mode:
    Approx. 260 min with SBP-64A/ SBS-64G1A (64 GB) memory card
    Approx. 130 min with SBP-32/ SBS-32G1A (32 GB) memory card
    Battery Operating TimeApprox. 110 min with BP-U30 battery
    (while recording, LCD monitor On)

    Approx. 220 min with BP-U60 battery
    (while recording, LCD monitor On)

    Approx. 330 min with BP-U90 battery
    (while recording, LCD monitor On)
    Media Drive Media TypeExpressCard/34 slot (x2)

    Input/Output

    Input/Output 3G-SDI InputBNC (x1), 3G/HD/SD selectable
    SMPTE 424M/292M/259M standards
    HD-SDI InputBNC (x1), 3G/HD/SD selectable
    SMPTE 424M/292M/259M standards
    SD-SDI InputBNC (x1), 3G/HD/SD selectable
    SMPTE 424M/292M/259M standards
    Analog Audio InputXLR-3pin (CH-1, CH-2)
    LINE: +4 dBu (Reference Level)
    Analog Composite OutputBNC (x1)
    NTSC, PAL or HD-Y
    3G-SDI OutputBNC (x2), 3G/HD/SD selectable
    SMPTE 424M/292M/259M standards
    HD-SDI OutputBNC (x2), 3G/HD/SD selectable
    SMPTE 424M/292M/259M standards
    SD-SDI OutputBNC (x2), 3G/HD/SD selectable
    SMPTE 424M/292M/259M standards
    HDMI OutputType A 19-pin (x1), output
    Analog Audio OutputPhono jack (CH-1, CH-2) -10dBu (Reference Level), 47kΩ
    Headphone OutputStereo mini jack (x1)
    i.LINK
    IEEE 1394, 4-pin (x1)
    HDV stream input/output, DVCAM stream output, S400USB
    USB Type-A (x1)
    USB Type-miniB (x1)
    DC Input (12 V)
    DC jack (12 V)
    DC Output (12 V)
    UnReg(4-pin) for CBK-WA100
    Other Equipment Built-in Display3.5-inch type color LCD monitor: 960 (H) x 3 (RGB) x 540 (V), 16:9

    Supplied Accessories

    Supplied AccessoriesUSB cable (1)
    Infrared Remote Commander (1)
    BC-U1 battery charger (1)
    Lithium battery (CR2025 for the IR Remote Commander) (1), Pre-installed to the IR Remote Commander
    Leaflet: Before Using this Unit (1)
    Shoulder strap (1)
    Side spacer (1)
    CD-ROM:
    - Operating instructions in PDF (1)
