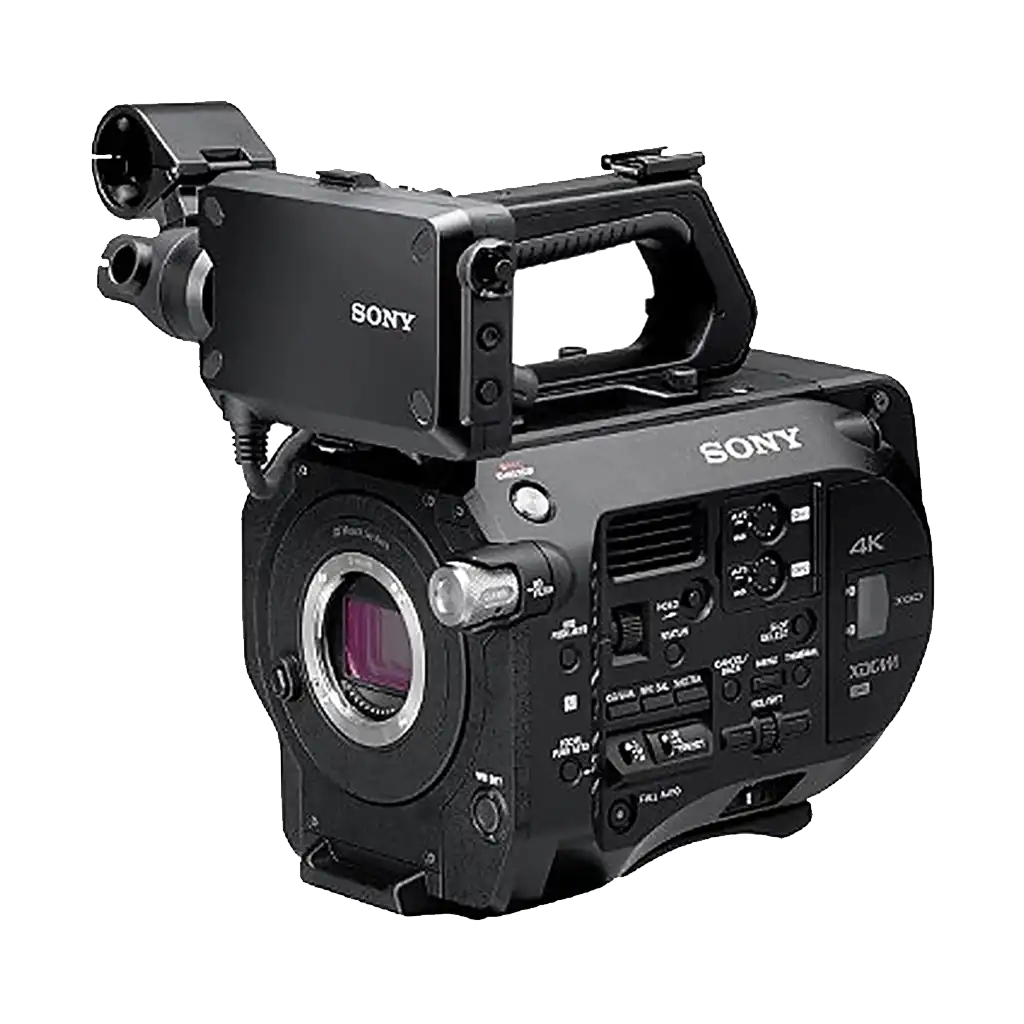

SONY PXW-FS7 S35 XDCAM
- Super 35 Exmor® CMOS Sensor
- Sony α-mount system with 18 mm flange back distance
- On-board 4K (3840 x 2160) and Full HD (1920 x 1080) recording
- XAVC (Intra/Long GOP)
- MPEG HD, 4:2:2, 50 Mbps (HD only)
- Apple Pro Res codec (with future upgrade and extension unit, sold separately)
- RAW recording (with extension unit and outboard recorder, sold separately)
- Slow & Quick Motion for over-and undercranking
- Dual XQD card slots
- 16-bit analog-to-digital converter
- ISO 2000
Choose options
- Super 35 Exmor® CMOS Sensor
- Sony α-mount system with 18 mm flange back distance
- On-board 4K (3840 x 2160) and Full HD (1920 x 1080) recording
- XAVC (Intra/Long GOP)
- MPEG HD, 4:2:2, 50 Mbps (HD only)
- Apple Pro Res codec (with future upgrade and extension unit, sold separately)
- RAW recording (with extension unit and outboard recorder, sold separately)
- Slow & Quick Motion for over-and undercranking
- Dual XQD card slots
- 16-bit analog-to-digital converter
- ISO 2000
- Super 35 Exmor® CMOS Sensor
- Sony α-mount system with 18 mm flange back distance
- On-board 4K (3840 x 2160) and Full HD (1920 x 1080) recording
- XAVC (Intra/Long GOP)
- MPEG HD, 4:2:2, 50 Mbps (HD only)
- Apple Pro Res codec (with future upgrade and extension unit, sold separately)
- RAW recording (with extension unit and outboard recorder, sold separately)
- Slow & Quick Motion for over-and undercranking
- Dual XQD card slots
- 16-bit analog-to-digital converter
- ISO 2000
The Sony PXW-FS7 is a powerful and versatile professional camcorder that is capable of recording 4K internally up to 60fps, or Full HD up to 180fps.The camcorder utilises a Super 35 CMOS sensor with 8.8 million effective pixels, and features a Sony E-mount for a wide range of lens options.
4K Super 35 Exmor sensor
When it comes to image sensors, size definitely matters. Sonys Super 35 sensor delivers "bokeh
Sony PXW-FS7 (1)
Boyd Cap (1)
Viewfinder (1)
Eyepiece (1)
Grip Remote Control (1)
USB wireless LAN module IFU-WLM3 (1)
Wireless remote commander (1) (RMT-845)
WA Adaptor Bracket (1)
MPA-AC1 AC Adapter (1)
BC-U1 battery charger (1)
BP-U30 battery pack (1)
Power cord (2)
USB cable (1)
Operating Guide (2)
CD-ROM "Manuales for Solid-State Memory Camcorder" (1)
Mass | Approx 2.0 kg (body only) Approx. 4.5 kg (with Viewfinder, Eyepiece, Grip Remote Control, BP-U30 battery, SELP28135G LENS, an XQD memory card) |
---|---|
Dimensions (W x H x D) *1 | 156 x 239 x 247 mm (body without protrusions) |
Power Requirements | DC 12 V |
Power Consumption | Approx. 19W (while recording XAVC-I QFHD 59.94P, SELP28135G Lens, Viewfinder ON, not using external device) |
Operating Temperature | 0°C to 40°C 32°F to 104°F |
Storage Temperature | -20°C to +60°C -4°F to +140°F |
Battery Operating Time | Approx. 1 hrs with BP-U30 battery (while recording XAVC-I QFHD 59.94P, SELP28135G Lens, Viewfinder ON, not using external device) Approx. 2 hrs with BP-U60 battery while recording XAVC-I QFHD 59.94P, SELP28135G Lens, Viewfinder ON, not using external device) Approx. 3 hrs with BP-U90 battery (while recording XAVC-I QFHD 59.94P, SELP28135G Lens, Viewfinder ON, not using external device) |
Recording Format (Video) | XAVC-I mode: 4K 59.94P VBR, bit rate 600Mbps, MPEG-4 H.264/AVC XAVC-I mode: 4K 50P VBR, bit rate 500Mbps, MPEG-4 H.264/AVC XAVC-I mode: 4K 29.97P VBR, bit rate 300Mbps, MPEG-4 H.264/AVC XAVC-I mode: 4K 23.98P VBR, bit rate 240Mbps, MPEG-4 H.264/AVC XAVC-I mode: 4K 25P VBR, bit rate 250Mbps, MPEG-4 H.264/AVC |
Recording Format (Video) | XAVC-I mode:QFHD 59.94P CBG, bit rate 600Mbps, MPEG-4 H.264/AVC XAVC-I mode:QFHD 50P CBG, bit rate 500Mbps, MPEG-4 H.264/AVC XAVC-I mode:QFHD 29.97P CBG, bit rate 300Mbps, MPEG-4 H.264/AVC XAVC-I mode:QFHD 23.98P CBG, bit rate 240Mbps, MPEG-4 H.264/AVC XAVC-I mode:QFHD 25P CBG, bit rate 250Mbps, MPEG-4 H.264/AVC XAVC-I mode:HD 59.94P VBR, maximum bit rate 222Mbps, MPEG-4 H.264/AVC XAVC-I mode:HD 50P VBR, maximum bit rate 185Mbps, MPEG-4 H.264/AVC XAVC-I mode:HD 59.94i VBR, maximum bit rate 111Mbps, MPEG-4 H.264/AVC XAVC-I mode:HD 50i VBR, maximum bit rate 112Mbps, MPEG-4 H.264/AVC XAVC-I mode:HD 29.97P VBR, maximum bit rate 111Mbps, MPEG-4 |
Recording Format (Video) | XAVC-L QFHD 59.94P/50P mode: VBR, maximum bit rate 150Mbps, MPEG-4 H.264/AVC XAVC-L QFHD 29.97P/23.98P/25P mode: VBR, maximum bit rate 100Mbps, MPEG-4 H.264/AVC XAVC-L HD 50 mode: VBR, maximum bit rate 50Mbps, MPEG-4 H.264/AVC XAVC-L HD 35 mode: VBR, maximum bit rate 35Mbps, MPEG-4 H.264/AVC XAVC-L HD 25 mode: VBR, maximum bit rate 25Mbps, MPEG-4 H.264/AVC MPEG HD422 mode: CBR, maximum bit rate 50Mbps, MPEG-2 422P@HL Apple ProRes 422 HQ: VBR, maximum bit rate 220Mbps, 4:2:2 10 bit ProRes 422*2 Apple ProRes 422: VBR, maximum bit rate 147Mbps, 4:2:2 10 bit |
Recording Format (Audio) | LPCM 24 bits, 48 kHz, 4 channels (Recording/Playback ONLY 2channels) |
Recording Frame Rate | XAVC-I QFHD mode: 3840x2160/ 59.94P, 50P, 29.97P, 23.98P, 25P XAVC-I HD mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P XAVC-L QFHD mode: 3840x2160/59.94P, 50P, 29.97P, 23.98P, 25P XAVC-L HD 50 mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P XAVC-L 35 mode: 1920x1080/59.94P, 50P, 59.94i, 50i, 29.97P, 23.98P, 25P XAVC-L 25 mode: 1920x1080/59.94i, 50i MPEG HD422 mode: 1920x1080/59.94i, 50i, 29.97P, 23.98P, 25P 1280x720/59.94P, 50P, 29.97P, 23.98P, 25P |
Recording/Playback Time | XAVC-I mode 4K/QFHD 59.94P When using QD-G128A (128GB): Approx. 22 minutes, When using QD-G64A (64GB): Approx. 11 minutes XAVC-I mode 4K/QFHD 50P When using QD-G128A (128GB): Approx. 26 minutes, When using QD-G64A (64GB): Approx. 13 minutes XAVC-I mode 4K/QFHD 29.97P When using QD-G128A (128GB): Approx. 44 minutes, When using QD-G64A (64GB): Approx. 22 minutes PXW-FS7 Recording/Playback Time XAVC-I mode 4K/QFHD 23.98P When using QD-G128A (128GB): Approx. 55 minutes, When using QD-G64A (64GB): Approx. 27 minutes XAVC-I mode 4K/QFHD 25P When using QD-G128A (128GB): Approx. 52 minutes, When using QD-G64A (64GB): Approx. 26 minutes |
Recording/Playback Time | ProRes 422 HQ*2 “ProRes 422 HQ 59.94i/29.97P mode When using QD-G128A (128GB): Approx. 60 minutes, When using QD-G64A (64GB): Approx. 30 minutes” “ProRes 422 HQ 50i/25P mode When using QD-G128A (128GB): Approx. 72 minutes, When using QD-G64A (64GB): Approx. 36 minutes ProRes 422 HQ 23.98P mode When using QD-G128A (128GB): Approx. 74 minutes When using QD-G64A (64GB): Approx. 37 minutes |
Recording/Playback Time | ProRes 422 HQ*2 ProRes 422 59.94i/29.97P mode When using QD-G128A (128GB): Approx. 90 minutes When using QD-G64A (64GB): Approx. 45 minutes ProRes 422 50i/25P mode When using QD-G128A (128GB): Approx. 108 minutes When using QD-G64A (64GB): Approx. 54 minutes ProRes 422 23.98P mode When using QD-G128A (128GB): Approx. 112 minutes When using QD-G64A (64GB): Approx. 56 minutes |
