Sony UWP-X7 Wireless Lavalier System (Radio Channel 33) (Special Order)
- PLL Synthesized System
- Space Diversity Reception System
- Tone Squelch Circuitry
Choose options
- PLL Synthesized System
- Space Diversity Reception System
- Tone Squelch Circuitry
- PLL Synthesized System
- Space Diversity Reception System
- Tone Squelch Circuitry

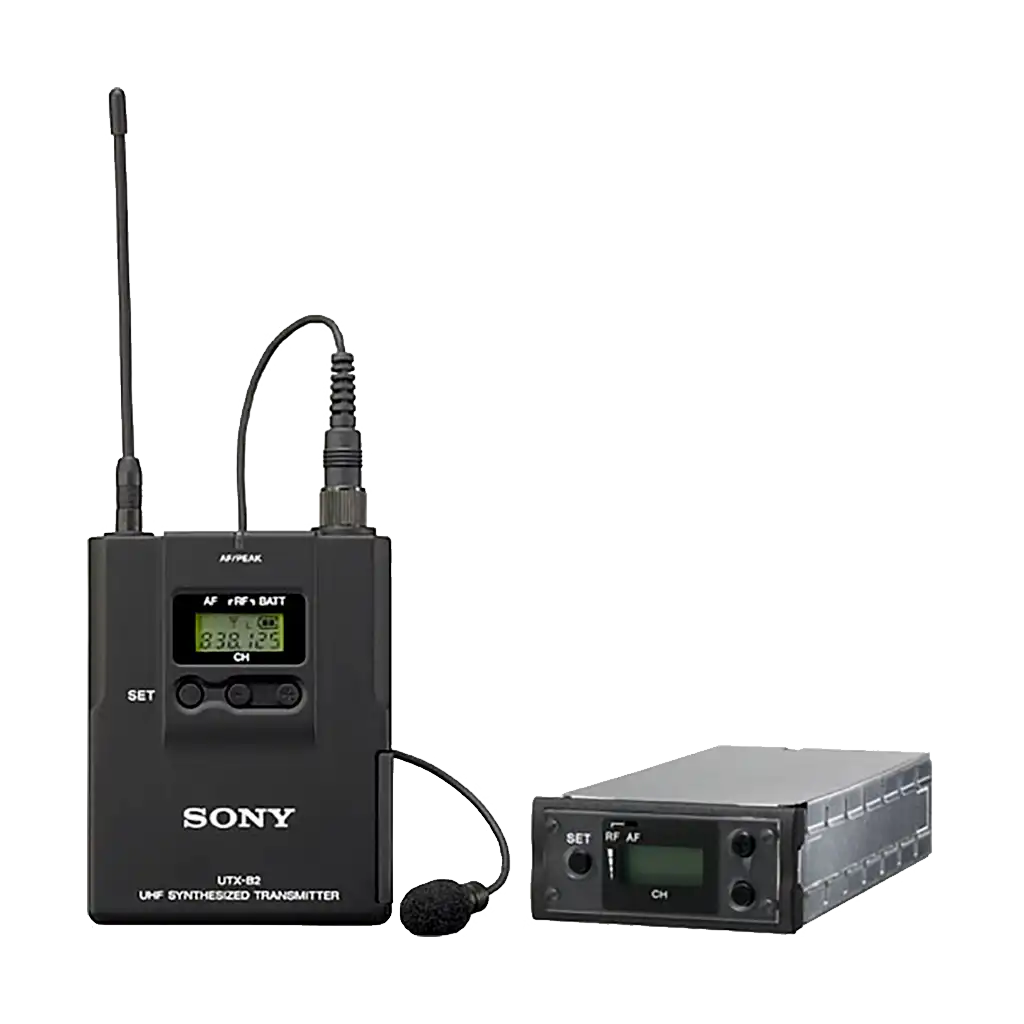

The Sony UWP-X7 is a UHF synthesized wireless microphone system that is ideal for hands-free operation in broadcast, presentation, and theater applications.The kit includes a lavalier microphone, bodypack transmitter and tuner module.
PLL Synthesized System
The Sony UWP-X7 achieves stable transmission and reception by using a UHF PLL (Phase Locked Loop) frequency synthesized system, which provides accurate carrier signal frequencies. This system is used in both the transmitters and tuners, so that a stable carrier is generated at the transmitter, and accurately tuned in at the tuner. This PLL-controlled system provides highly stable, user-selectable frequencies in increments of 125 kHz.
Space Diversity Reception System
Typically, wireless microphone transmission systems can be subject to reception interruptions (signal dropout), but UWP series tuners reduce this to a minimum. By utilizing a space-diversity reception system, it achieves stable reception by using dual-antenna inputs/reception circuits. These receive signals over two different paths and automatically select the stronger RF signal for output.
Tone Squelch Circuitry
To avoid picking up carrier signals transmitted from other systems, the transmitter transmits a 32 kHz pilot-tone signal along with the audio signal. The tuner's squelch circuit recognizes this tone signal, and outputs the audio signal only when this tone signal is received. This function prevents the output of unwanted signals and noise from other signal transmissions in the air, as well as the RF noise and popping noise that occur when the transmitter is powered on or off.
Simultaneous Multi-Channel Operation
The Sony UWP-X7 can simultaneously operate up to 16 wireless microphones. Optimum combinations of practically tested, interference-free frequencies are stored in the tuner. By using the pre-programmed frequency groups, users can easily choose interference-free frequencies for the transmitters and tuners, simplifying the task of system setup.
- UT-B2X Bodypack Transmitter
- Unidirectional Lavalier Microphone
- URX-M2 Tuner Module
