Swarovski

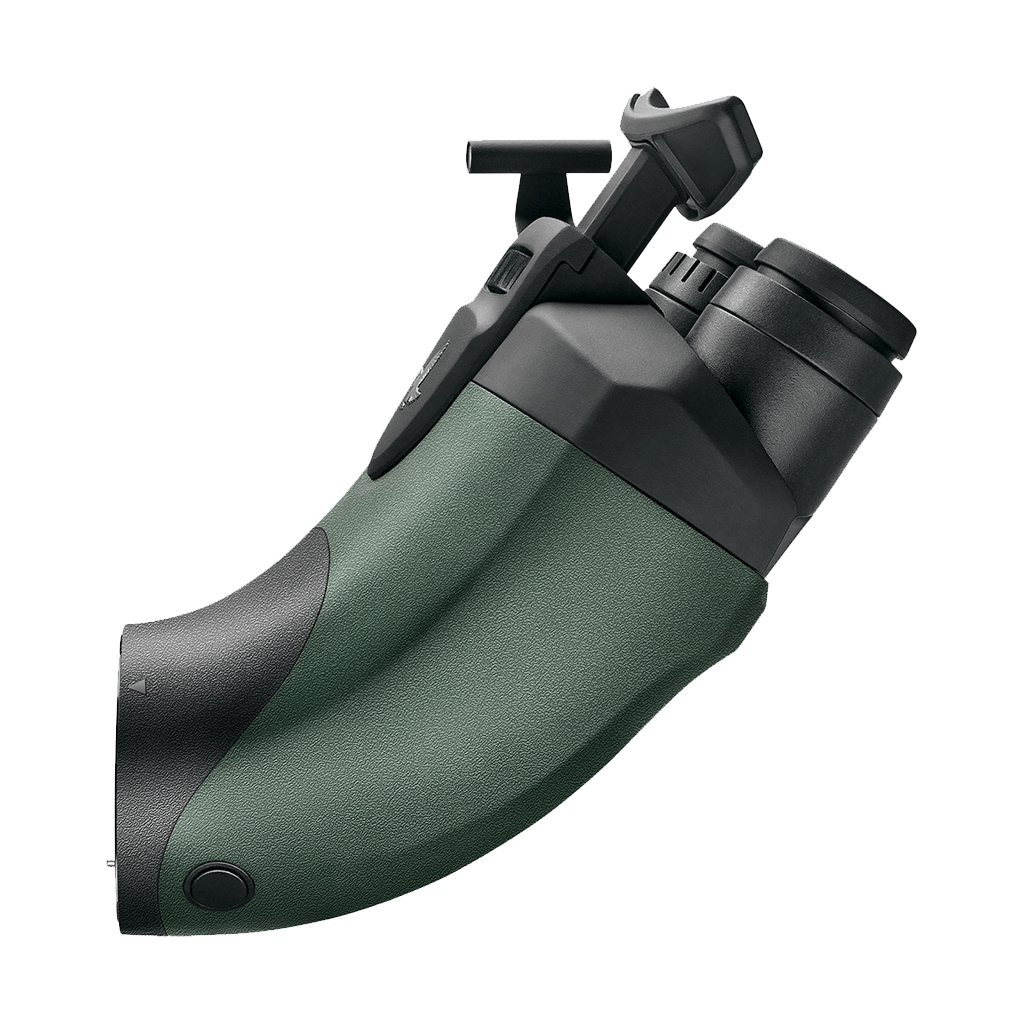

Swarovski BTX 30x/35x Eyepiece Module for ATX/STX Spotting Scopes

R 65,595.00
R 65,595.00 R 65,595.00
Tax included. Shipping calculated at checkout.

SWBTX

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • View with Both Eyes Open
  • 45° Angled Viewing
  • 35x with 95mm Models
  • 30x with 65mm/85mm Models
  • 63° Wide Apparent Angle of View
  • SWAROVISION and SWAROCLEAN Systems
  • Nitrogen-Filled, Water and Fogproof
  • Removable and Adjustable Forehead Rest
  • Twist-Up Rubber Eyecups
  • Integrated Aiming Aid with Reticle

    The Swarovski BTX 30x/35x Eyepiece Module for ATX/STX Spotting Scopes is compatible with the full series of Swarovski ATX and STX spotting scopes and provides the absolute maximum level of comfort for longer observation sessions.

    The innovative design replaces the conventional single eyepiece configuration with a dual-eyepiece design. This design enables the user to have both eyes open during use, and the eyepieces are set at a 45° angle to the optical tube.

    Mounted on the 65mm and 85mm models, you will have a 30x magnification with the Swarovski BTX 30x/35x Eyepiece Module for ATX/STX Spotting Scopes and on the 95mm an 35x magnification. To match the performance of the objective modules, this eyepiece features the same SWAROVISION system for a clear, contrast and improved colour fidelity and SWAROCLEAN coatings make the lenses easy to clean and maintain.

    The Swarovski BTX 30x/35x Eyepiece Module for ATX/STX Spotting Scopes includes an adjustable forehead rest for improved stability and maintaining the optimal viewing position. It can also be removed if the user prefers not to use the forehead rest.

    Like all models in the ATX / STX family, this eyepiece is nitrogen-filled, making it resistant to internal fogging when moving through extreme temperature changes, and it is O-ring sealed to be waterproof and submersible.

    Optical Performance

    The Swarovski BTX 30x/35x Eyepiece Module for ATX/STX Spotting Scopes features dual identical eyepieces.
    When mounted on the 65mm and 85mm models, you will have a 30x magnification and on the 95mm an 35x magnification is achieved. With the proprietary SWAROVISION system on this eyepiece, you will receive improved image contrast, colour and clarity. On all ATX/STX spotting scopes, you will have an apparent angle of view of 63°.

    SWAROVISION System

    For improved and accurate colour fidelity, and improved resolution and contrast, you will find High-Definition (HD) flourinde glass eliminates chromatic aberrations.
    As with all scopes and eyepiece modules in the ATX/STX family, the Swarovski BTX 30x/35x Eyepiece Module for ATX/STX Spotting Scopes features the SWAROTOP anti-reflective multi-coating that enhances light transmission, the SWARODUR coating to improve scratch resistance and finally the non-stick SWAROCLEAN coating on all exposed lens surfaces to ensure water, dirt, sap and oil can easily be cleaned without scratching or leaving residue.

    Use and Handling

    The easy-to-use binocular design of this unit makes it easy to use during long-duration observation sessions. The eyepiece is set at a 45° angle to the optical tube, ensuring a comfortable viewing experience while standing, sitting or lying down.
    Another innovative design feature on the Swarovski BTX 30x/35x Eyepiece Module for ATX/STX Spotting Scopes is the inclusion of a forehead rest and aiming aid that are both adjustable and removable. The forehead rest provides you with improved viewing stability and added comfort. The viewing aid utilises an unmagnified view with a sunburst-type reticle to find objects faster and easier than using the angled eyepiece.
    Multi-position twist-up rubber eyecups offer comfortable use with or without eyewear and a simple bayonet mount for fast installation and removal.

    Construction Details

    The Swarovski BTX 30x/35x Eyepiece Module for ATX/STX Spotting Scopes is both nitrogen-filled and O-ring sealed for moving through extreme temperature changes and to make it submersible down up to 4 meters. This eyepiece module features and lightweight design, only weighing in at 1.5KG for an easy and ergonomic experience.

    • Swarovski BTX 30x/35x Eyepiece Module for ATX/STX Spotting Scopes
    • Swarovski Mount Cap
    • Swarovski One-Piece Eyepiece Cap

    Magnification
    With 65 mm Scopes: 30x
    With 85 mm Scopes: 30x
    With 95 mm Scopes: 35x
    Angle of View
    With 65 mm Scopes: 2.1° (Actual)
    With 85 mm Scopes: 2.1° (Actual)
    With 96 mm Scopes: 1.8° (Actual)
    Field of View
    With 65 mm Scopes: 38 m @ 1000 m
    With 85 mm Scopes: 37 m @ 1000 m
    With 95 mm Scopes: 32 m @ 1000 m
    Exit Pupil Diameter
    With 65 mm Scopes: 2.2 mm
    With 85 mm Scopes: 2.9 mm
    With 95 mm Scopes: 2.7 mm
    Eye Relief
    21.0 mm
    Diopter Correction
    -4.0 to +4.0
    Fogproof
    Yes, Nitrogen Filled
    Environmental Resistance
    Water-Resistant (Unrated)
    Dimensions
    L: 17.4 cm
    Weight
    1.4 kg
