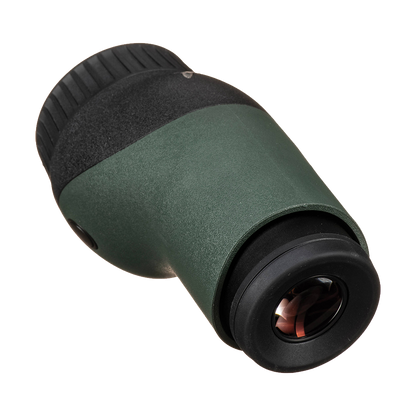

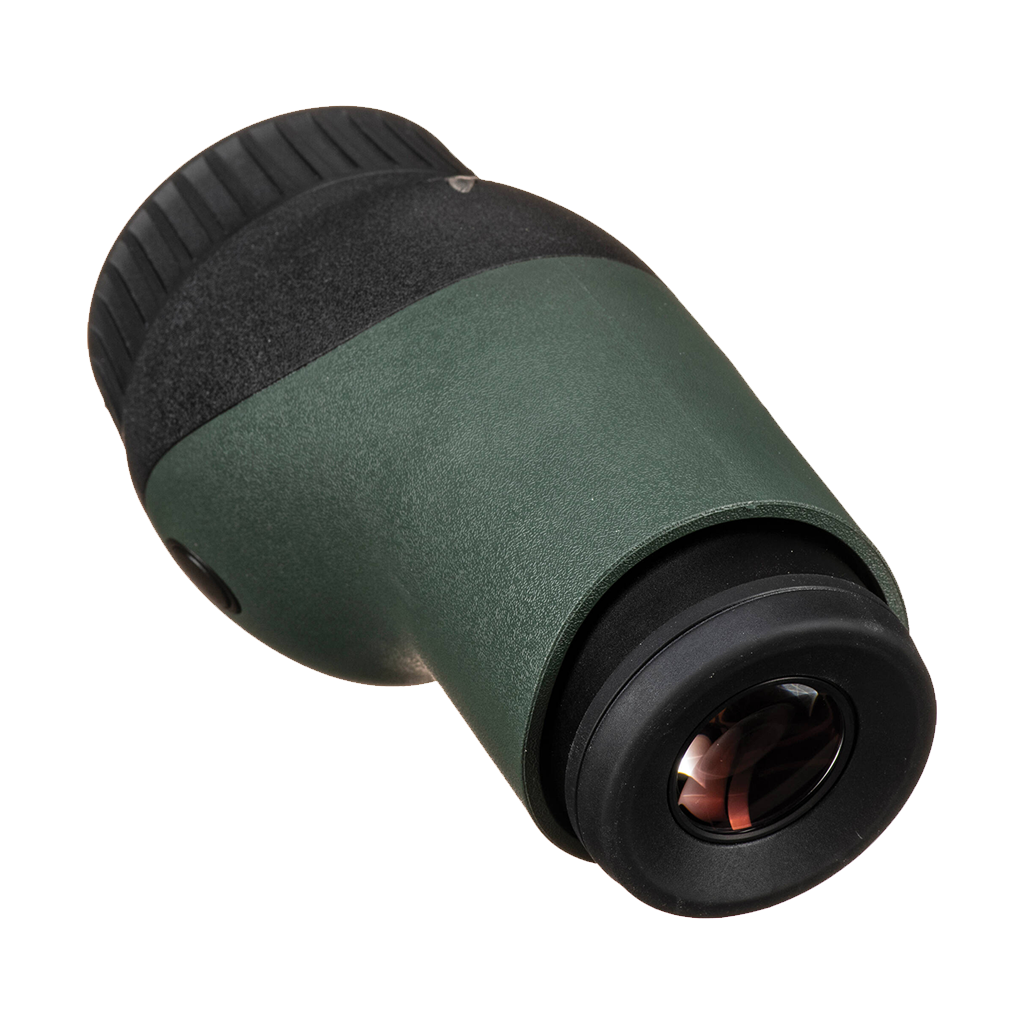

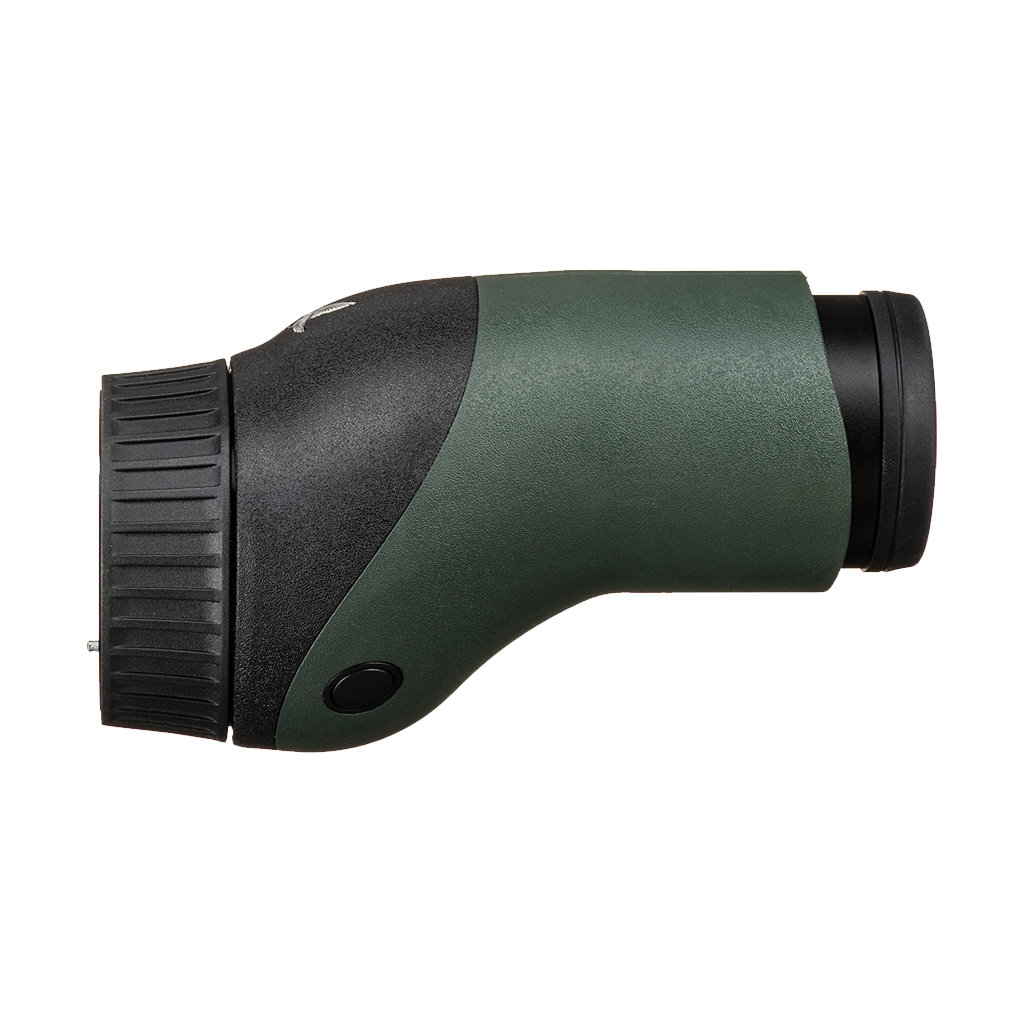

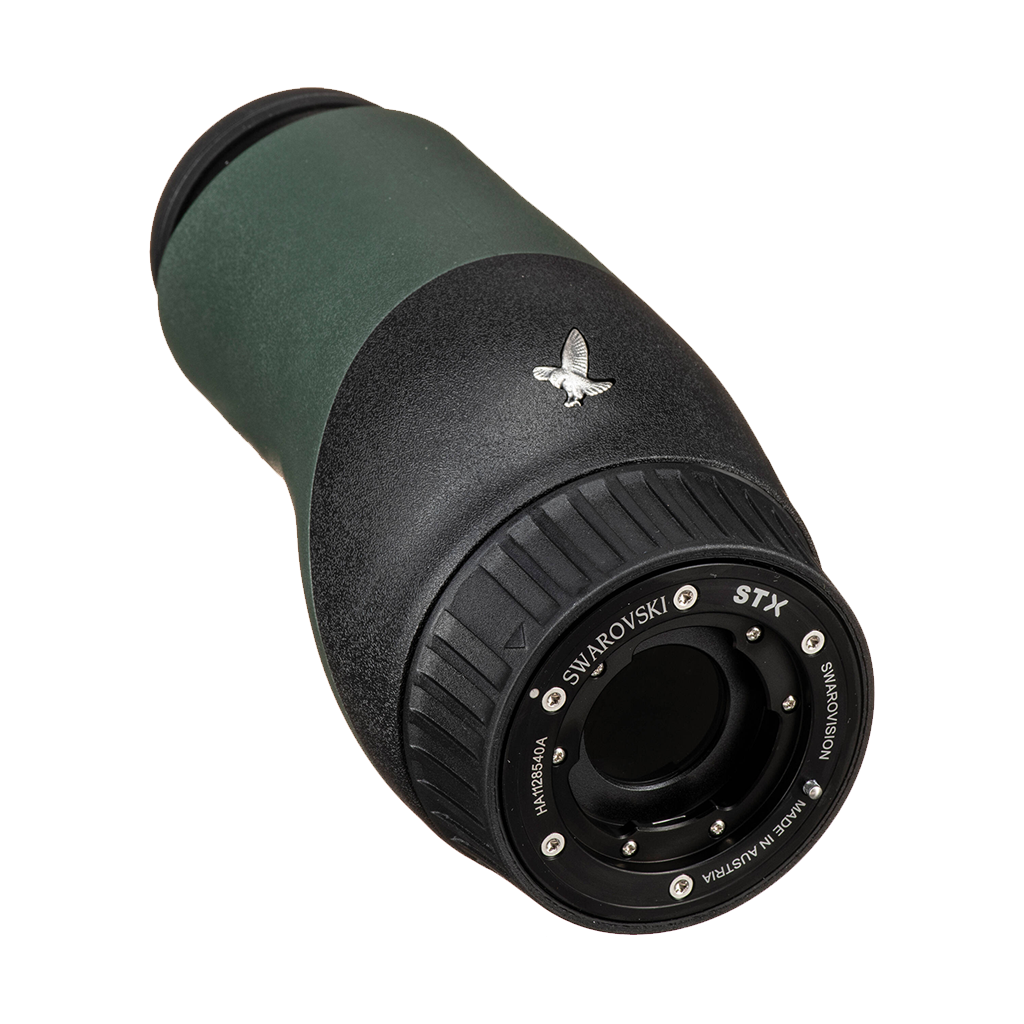

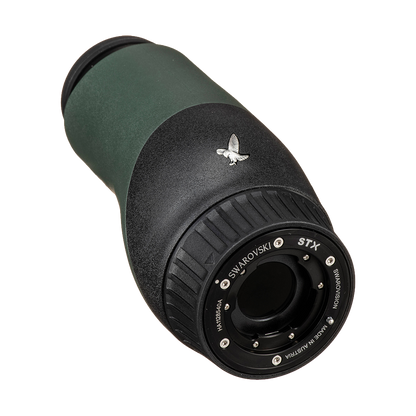

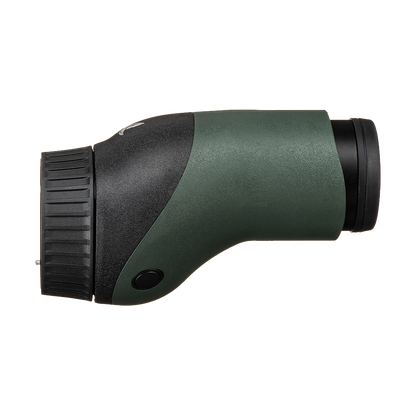

Swarovski STX Spotting Scope Modular Zoom Eyepiece (Straight Viewing)

R 51,695.00
R 51,695.00 R 51,695.00
Tax included. Shipping calculated at checkout.

STXEP

Out of stock

Sorry, it's out of stock.

But we can let you know when it's back in.

SHORT DESCRIPTION

  • Straight Viewing
  • ompatible with STX Spotting Scope
  • SWARODUR/SWAROTOP High-Contrast Coatings
  • SWAROCLEAN Nonstick Coating
  • Fog and Waterproof Construction
  • 20mm Eye Relief
  • Twist-In Eyecups

    The Swarovski STX Spotting Scope Modular Zoom Eyepiece (Straight Viewing) is a wide-angle eyepiece specifically designed to be used with the Swarovski STX spotting scope series. This eyepiece is compatible with the STX-65, STX-85, and STX-95 objective assemblies. Mounted with either the STX-65 or STX-85 objective assembly, this zoom eyepiece has a magnification range of 25-60x; when mounted on the STX-95 model, the magnification range is 30-70x.

    The Swarovski STX Spotting Scope Modular Zoom Eyepiece (Straight Viewing) is well known for its ergonomic handling and user-friendly functionality. It is easy to attach/detach the eyepiece from the objective assembly bayonet mount, making disassembly easy.

    This eyepiece is engineered with a straight viewing angle, with the zoom dial on the objective assembly. This enables one-handed adjustments to the field of view and zoom.

    Optical Performance

    The Swarovski STX Spotting Scope Modular Zoom Eyepiece (Straight Viewing) offers a 25-60x zoom range on the STX-65 and STX-85, then with the STX-95 you have a 30-70x zoom range with an apparent angle of view of 71-57° on all STX models.
    On the STX-65 and STX-85 the angle of view is at 2.37-1.3°, while with the STX-85 your angle of view is 1.98-1.09°.
    On the ocular surface, Swarovski has added their SWAROCLEAN nonstick coating. You will also find phase-corrected roof prisms.

    Use and Handling

    The Swarovski STX Spotting Scope Modular Zoom Eyepiece (Straight Viewing) features an extra-long 20mm eye relief. With a click-stop twist-in and removable eyecup.
    One-handed operation is possible via side-by-side zoom and focus dials, which are both grooved.

    • Swarovski STX Spotting Scope Modular Zoom Eyepiece (Straight Viewing)
    • Swarovski Objective Lens Cover
    • Swarovski Tethered Eyepiece Cover

    Magnification
    With STX-65, STX-85 Scopes: 25 to 60x
    With STX-95 Scopes: 30 to 70x
    Angle of View
    With 65 mm, 85 mm Scopes: 2.4 to 1.3° (Actual)
    With 95 mm Scopes: 2 to 1.1° (Actual)
    71 to 57° (Apparent)
    Field of View
    With STX-65, STX-85 Scopes: 37.8 to 20.7 m @ 1000 m
    With STX-95 Scopes: 31.7 to 17.4 m @ 1000 m
    Minimum Focus Distance
    With 65 Scopes: 2.1 m
    With 85 Scopes: 3.6 m
    With 95 Scopes: 4.8 m
    Exit Pupil Diameter
    With STX-65 Scopes: 2.6 to 1.1 mm
    With STX-85 Scopes: 3.4 to 1.4 mm
    With STX-95 Scopes: 3.2 to 1.4 mm
    Eye Relief
    20.0 mm
    Diopter Correction
    +5.0
    Environmental Resistance
    Water-Resistant (Unrated)
