Tilta Nucleus-M Wireless Lens Control System
Choose PayGate at checkout for MobiCred Payments.
- 305 meter Wireless Range
- Two Lens Drive Motors
- Motors Feature Integrated Receivers
- 0.8 MOD Drive Gears
- Focus, Iris, Zoom Hand Unit
- Motors Daisy-Chain for Power
- Right Handgrip with Focus Control
- Left Handgrip with Iris and Zoom Control
- Hard-Shell Waterproof Case Included
Orms Bellville
Orms Cape Town
Tilta Nucleus-M Wireless Lens Control System
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- 305 meter Wireless Range
- Two Lens Drive Motors
- Motors Feature Integrated Receivers
- 0.8 MOD Drive Gears
- Focus, Iris, Zoom Hand Unit
- Motors Daisy-Chain for Power
- Right Handgrip with Focus Control
- Left Handgrip with Iris and Zoom Control
- Hard-Shell Waterproof Case Included
Choose PayGate at checkout for MobiCred Payments.
- 305 meter Wireless Range
- Two Lens Drive Motors
- Motors Feature Integrated Receivers
- 0.8 MOD Drive Gears
- Focus, Iris, Zoom Hand Unit
- Motors Daisy-Chain for Power
- Right Handgrip with Focus Control
- Left Handgrip with Iris and Zoom Control
- Hard-Shell Waterproof Case Included
A brilliant and easy way to have full control of your lens system with the latest Tilta Nucleus–M: Wireless Lens Control System is specifically designed for filmmakers with 0.8 mod; 35 tooth; 32 pitch gear attached – fitting perfect around those cinema lenses. Enjoy the all new highly customisable 3-channel wireless lens control that allows you to change your focus; iris and zoom between the two wireless hand grips or the FIZ hand unit with a wireless range of 304 meters and with a Tiltamax Firmware Update you can extend it to 402 meters!
With the included hand grips; it can also be attached to the rosette mounts for handheld video recording or photo shot operation and can also be attached to top bar-based gimbals with the optional Nucleus-M Hand Grip Universal Gimbal Ring Adapters for smooth control, making it the perfect lens control system for production need.
The motors of the Tilta Nucleus – M: Wireless Lens Control System have direct communication to the hand unit and hand grips. To have full and quick control access, simply set both motors of the hand unit/hand grips to the exact same. The motors allow automatic and manual calibration for the lens. If you using lenses that does not have hard end stops at close up focus then manual calibration comes into play. These motors are specifically designed to clamp onto 19mm or 15mm rods with the included rod bushings which is quite easy to attach and detach the motors without the need of having to remove any accessory from your setup.
To power up the motors of the lens control, it only requires one port on your camera rig to be active which is the P-tap power cable that simply plugs into the motors which can then daisy chain the other motors for a better workflow. Additionally, the hand grip and hand unit each uses two 18650 3000mAh, 3.7V Li-ion batteries which has to be purchased seperately. Once they are full charged – you can have absolute fun up to two days with the hand grips and 10 hours with the hand unit.
A brilliant and easy way to have full control of your lens system with the latest Tilta Nucleus–M: Wireless Lens Control System is specifically designed for filmmakers with 0.8 mod, 35 tooth, 32 pitch gear attached – fitting perfect around those cinema lenses. Enjoy the all new highly customisable 3-channel wireless lens control that allows you to change your focus, iris and zoom between the two wireless hand grips or the FIZ hand unit with a wireless range of 304 meters and with a Tiltamax Firmware Update you can extend it to 402 meters!
- The FIZ hand unit can control three channels (focus, zoom, and iris), as well as override the handgrips.
- The motors can calibrate on lenses with or without hard stops, such as a photo lens with follow focus gears.
- The motors feature cine standard 0.8 MOD 32 pitch drive gears. Each motor includes a 19mm rod clamp and a 15 to 19mm adapter bushing, allowing you to mount the motors onto either a 15mm or 19mm rod which is perfect for cinema lenses.
- The motors power from a P-Tap connector, and then pass power by daisy-chaining via the 7-pin connectors with the included cables.
- The FIZ hand controller and each handgrip uses two 18650 3000mAh, 3.7V Li-ion rechargeable batteries to power up.
- The batteries in the FIZ hand controller are designed to last for more than 10 hours, and up to two days in each.
- The system features three ranges: low, medium, and high and also supports up to 15 channels to select from, and the controllers pair with each motor via the motor ID.

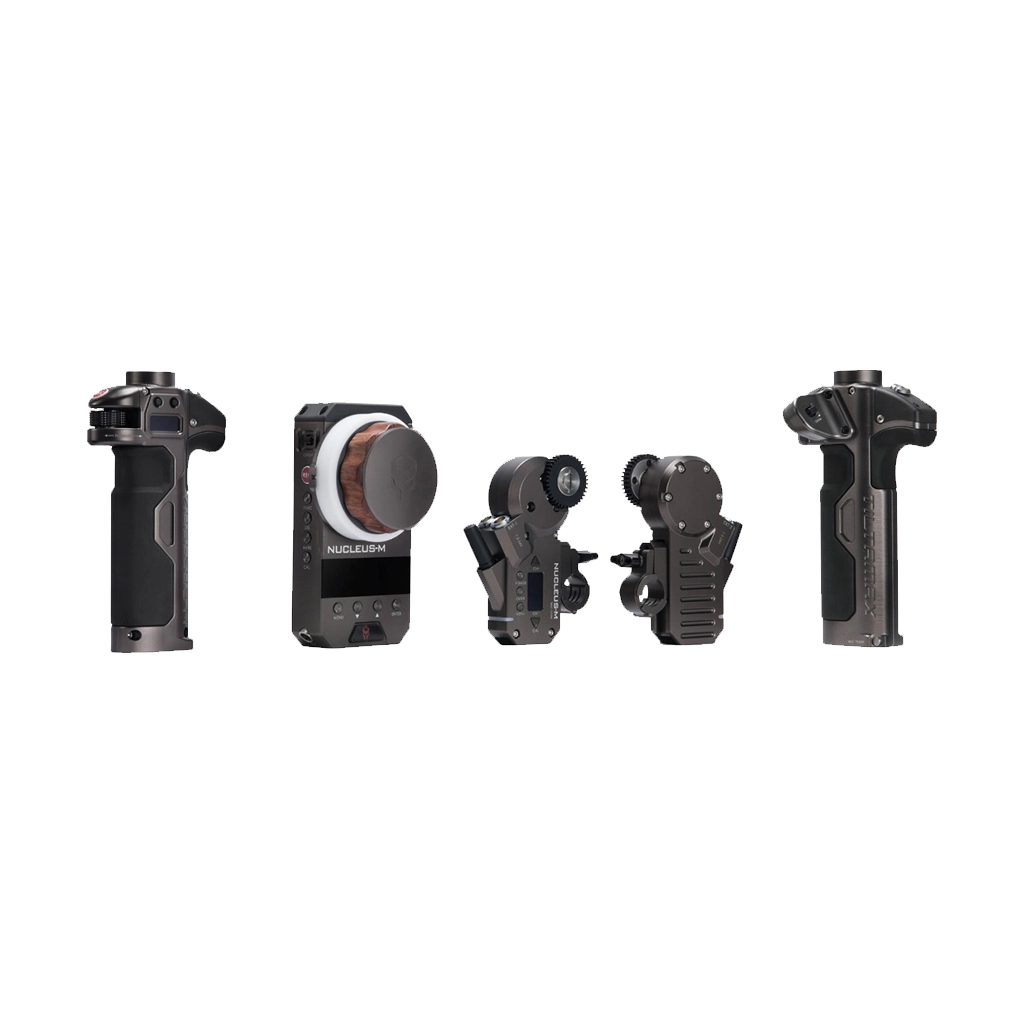

- Tilta Nucleus-M Wireless Lens Control System
- Wireless FIZ Hand Unit
- 2 x Wireless Motors
- 2 x 19mm Motor Rod Clamps
- 2 x 19 to 15mm Bushings
- Wireless Left Handle (Focus)
- Wireless Right Handle (Iris, Zoom)
- 4 x Follow Focus Disks
- 7-Pin to D-Tap Motor Power Cable (29")
- 7-Pin to 7-Pin Straight Motor Cable (11.7")
- 7-Pin to 7-Pin Straight Motor Cable (7")
- 2 x Handle to ARRI Rosette Adapter
- 2 x Handle to Gimbal Bar Adapter (25 to 30mm Compatibility)
- Four-Slot 18650 Battery Charger
Wireless Range | 1000' / 304 m |
Material of Construction | Aluminum alloy, stainless steel, ABS plastic, rubber, Brazilian Rosewood |
Batteries | Required Hand Controller: 2 x 18650 Handgrip: 2 x 18650 in each Note: Battery must have a raised anode (positive) end, not a flat end |
Power | Batteries 3.7 VDC, 3000 mAh Battery Charger 100 to 240 VAC, 50/60 Hz, 0.15 A 5 VDC, 2 A |
Dimensions | Motor 4.50 x 3.25 x 1.38" / 11.43 x 8.26 x 3.49 cm Battery Diameter: 0.6875" / 1.7463 cm Length: 2.5625" / 6.5088 cm |
Weight | Motor 0.42 lb / 0.19 kg 0.50 lb / 0.22 kg (with 15mm rail adapter) 0.49 lb / 0.22 kg (with 19mm rail adapter) FIZ Hand Unit 0.97 lb / 0.44 kg (with focus disk, no batteries) 1.16 lb / 0.53 kg (with focus disk and batteries) Handgrips Right Grip: 0.58 lb / 0.26 kg (no batteries or adapters) Left Grip: 0.53 lb / 0.24 kg (no batteries or adapters) Rosette Rosette Male to Handle Grip Adapter: 0.07 kg 25 mm/30 mm Gimbal to Handle Grip Adapter: 0.04 kg |
