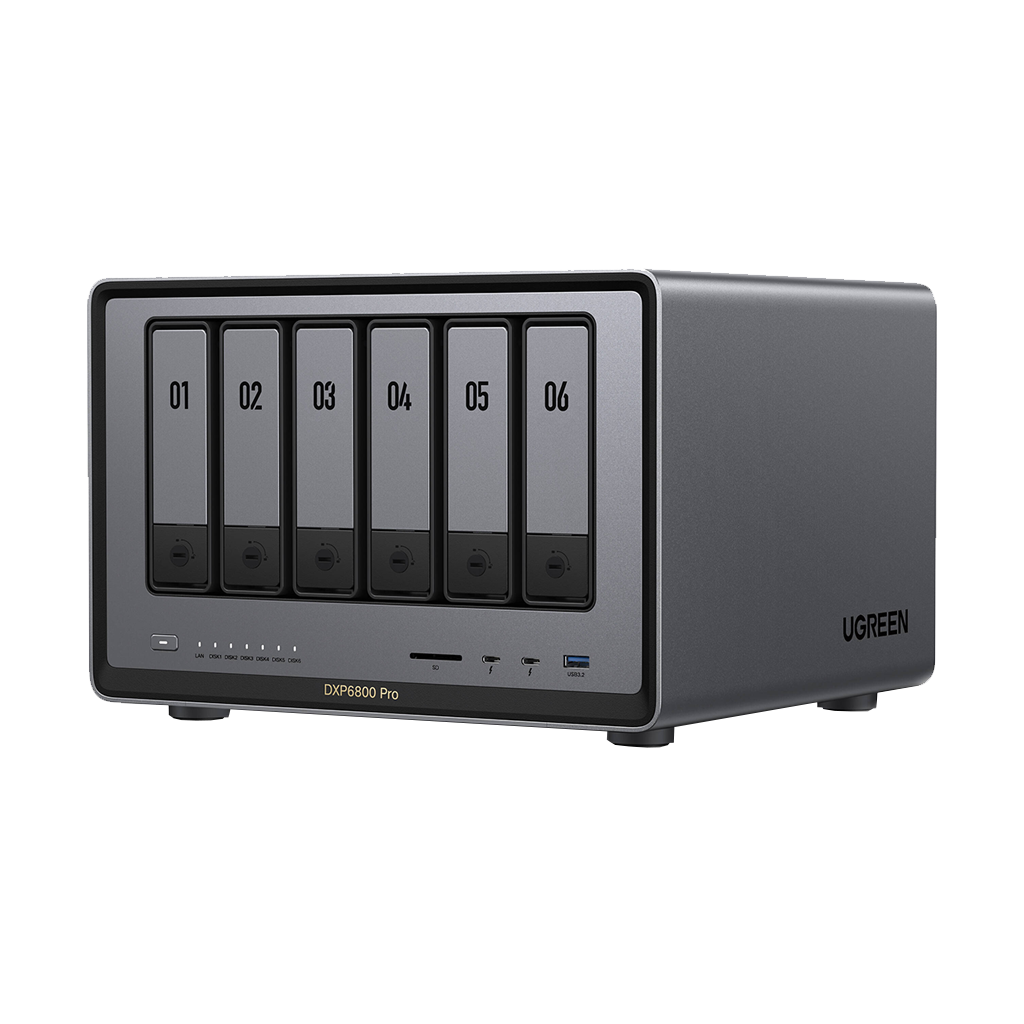

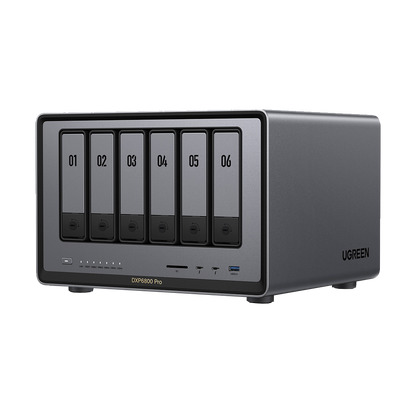

The UGREEN NASync DXP6800 Pro 6-Bay NAS Enclosure enables you to store and manage large volumes of data with seamless multi-person collaboration. Using the six bays as well as the two M.2 slots, you are provided with a total of up to 140TB of storage. The dual 10 GbE ports allow for high-speed file transfers, ideal for data upload/download, backup, and synchronisation.
Built into the UGREEN NASync DXP6800 Pro 6-Bay NAS Enclosure, you have 8GB of DDR5 RAM that can be expanded to up to 64GB. This enclosure is powered by a 12th Gen Intel Core i5-1235U 10-Core Processor. You will also find an HDMI port, supporting 8K.
You will find professional data security and a single all-inclusive app, while there is ample storage provided for users, small businesses, and studios.
Maximum Storage Capacity
The UGREEN NASync DXP6800 Pro 6-Bay NAS Enclosure features six drive bays for either 2.5" or 3.5" drives, each bay supports up to 22TB for a total of up to 132TB in the bays.
Further, you will find two M.2 slots for additional storage that support up to 4TB in each slot. With these included, you can go up to 140TB of total storage.
Supported RAID Modes
The DXP6800 Pro supports RAID 0, 1, 5, 6, and 10 modes. If you prefer to use the drives separately, there is also a JBOD option.
12th Gen Intel Core i5 Performance
Built into the UGREEN NASync DXP6800 Pro 6-Bay NAS Enclosure, you have 8GB of DDR5 RAM that can be expanded to up to 64GB. This enclosure is powered by a 12th Gen Intel Core i5-1235U 10-Core Processor.
The processor delivers both performance and power efficiency.

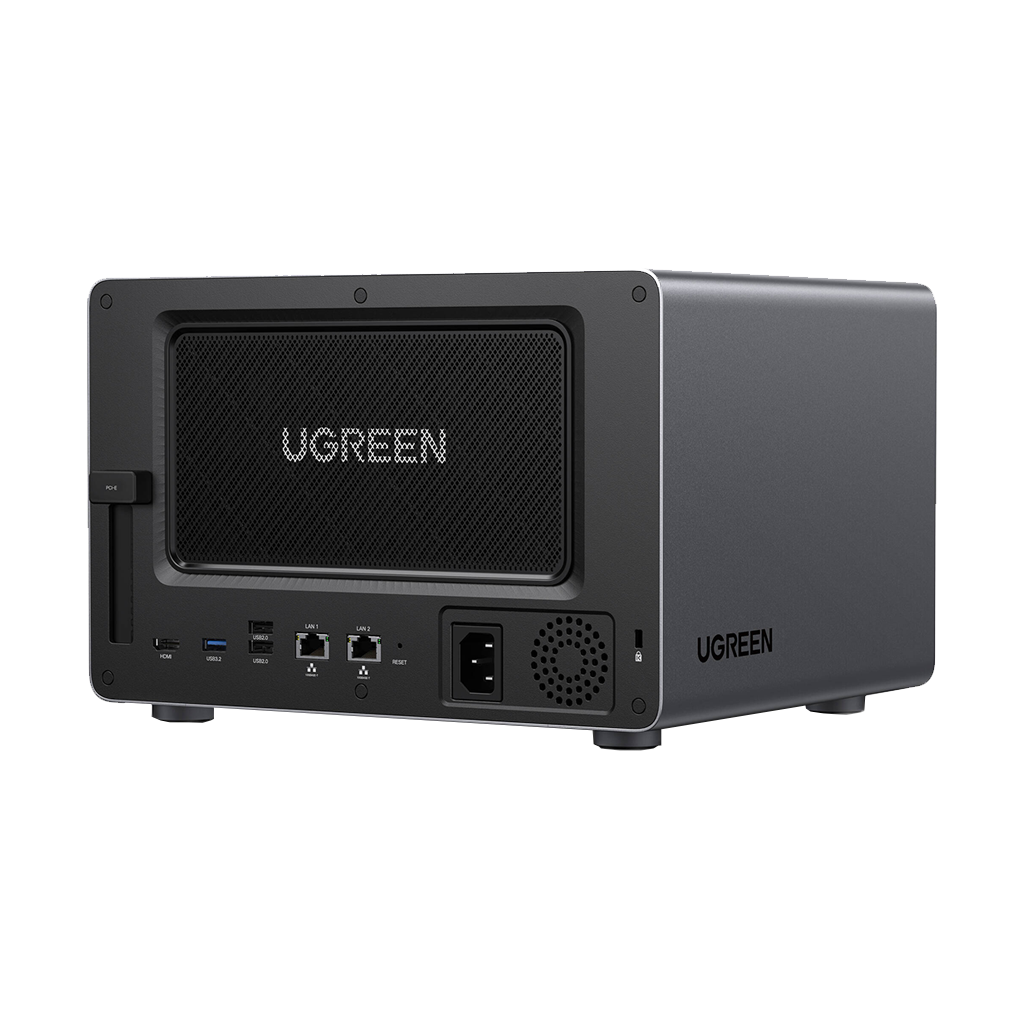

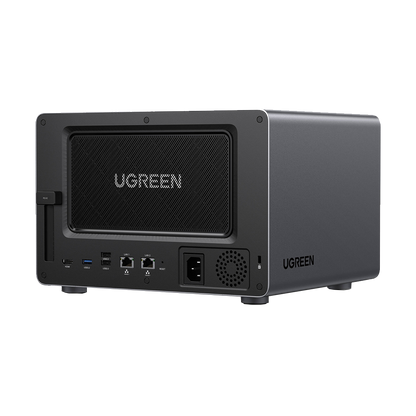

Connectivity
- 1x SD 4.0 Card Reader
- 1x PCIe x4
- 2x 10 GbE
- 1x HDMI (8K supported)
- 2x USB-C (Thunderbolt 4)
- 2x USB-A 3.2 Gen 2 (10 Gb/s)
- 2x USB-A 2.0 (480 MB/s)
- UGREEN NASync DXP6800 Pro 6-Bay NAS Enclosure
- 2x SSD Silicone Pads
- 2x Hard Drive Tray Keys
- Screws & Screwdriver
- 2x Ethernet Cable (CAT 7)
- Power Adapter (DC 12V/5A)
| CPU | |
| Processor | |
| Memory | |
| RAM Configuration / Capacity |
| RAID |
| Number of Bays | |
| Maximum Capacity | |
| Inputs/Outputs | |
| Media Card Slots | |
| PCI Expansion |
| Link Aggregation and Failover Support | |
| iSCSI Support |
| Installed Operating System | |
| OS Compatibility | |
| Mobile App Compatible |
| Encryption | |
| Security Features | |
| VPN Connections |
| Certifications | |
| Cooling |
