Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo Kit

Regular price R 19,895.00
Sale price R 19,895.00 Regular price R 19,895.00
Tax included. Shipping calculated at checkout.

TAJZCRANE-4-COM

In stock

Choose PayGate at checkout for MobiCred Payments.

SHORT DESCRIPTION

  • 6kg Load Capacity
  • Extended Arm for Full-Frame Lenses
  • Dual-Layer Quick Release Plates
  • Sling Grip, Wrist Rest
  • 360° Pan, 207° Tilt, 70° Roll Rotation
  • Bluetooth 5.0 Shutter Control
  • Built-In 3200 Lux Fill Light
  • Creative Operation Modes, 12-Hr Runtime
  • 1.22" Touchscreen, Balance Indicators
  • 2600mAh Batteries, PD Fast Charge
Payment methods

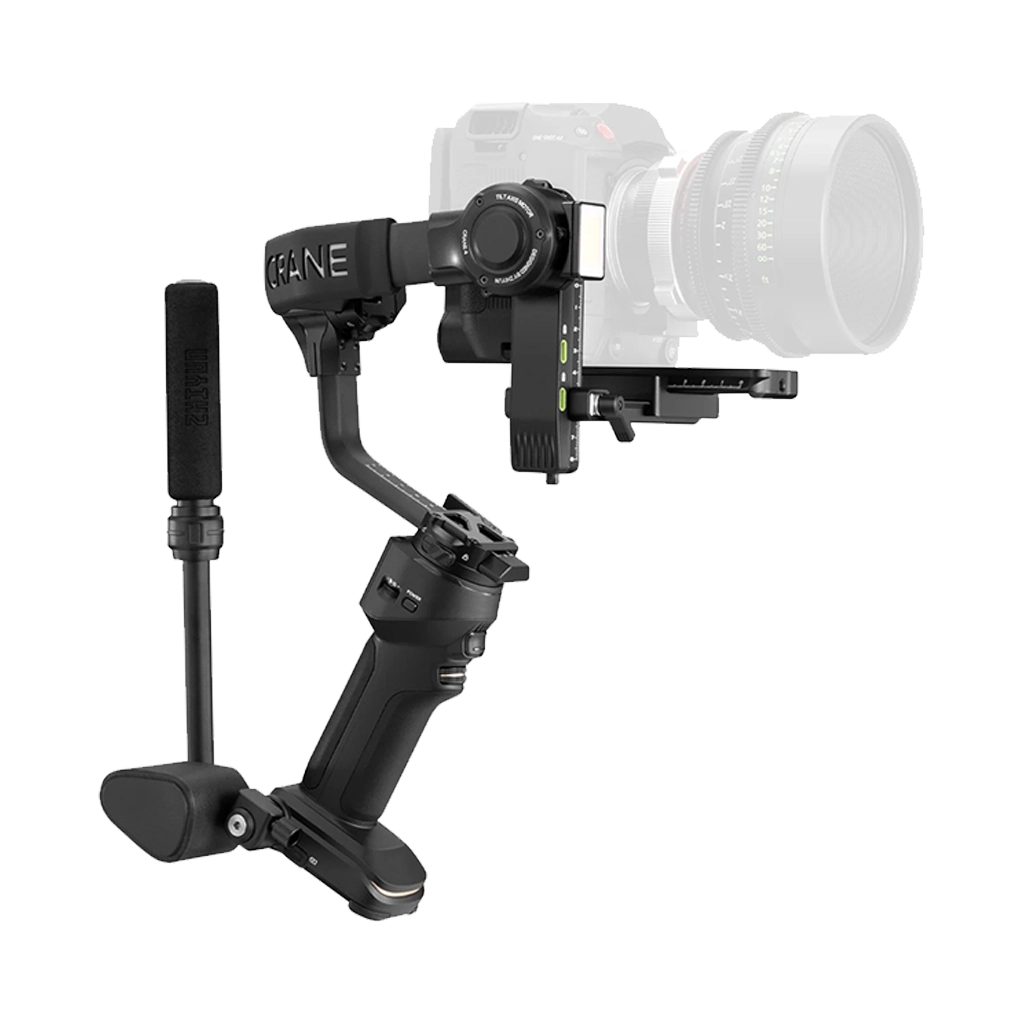

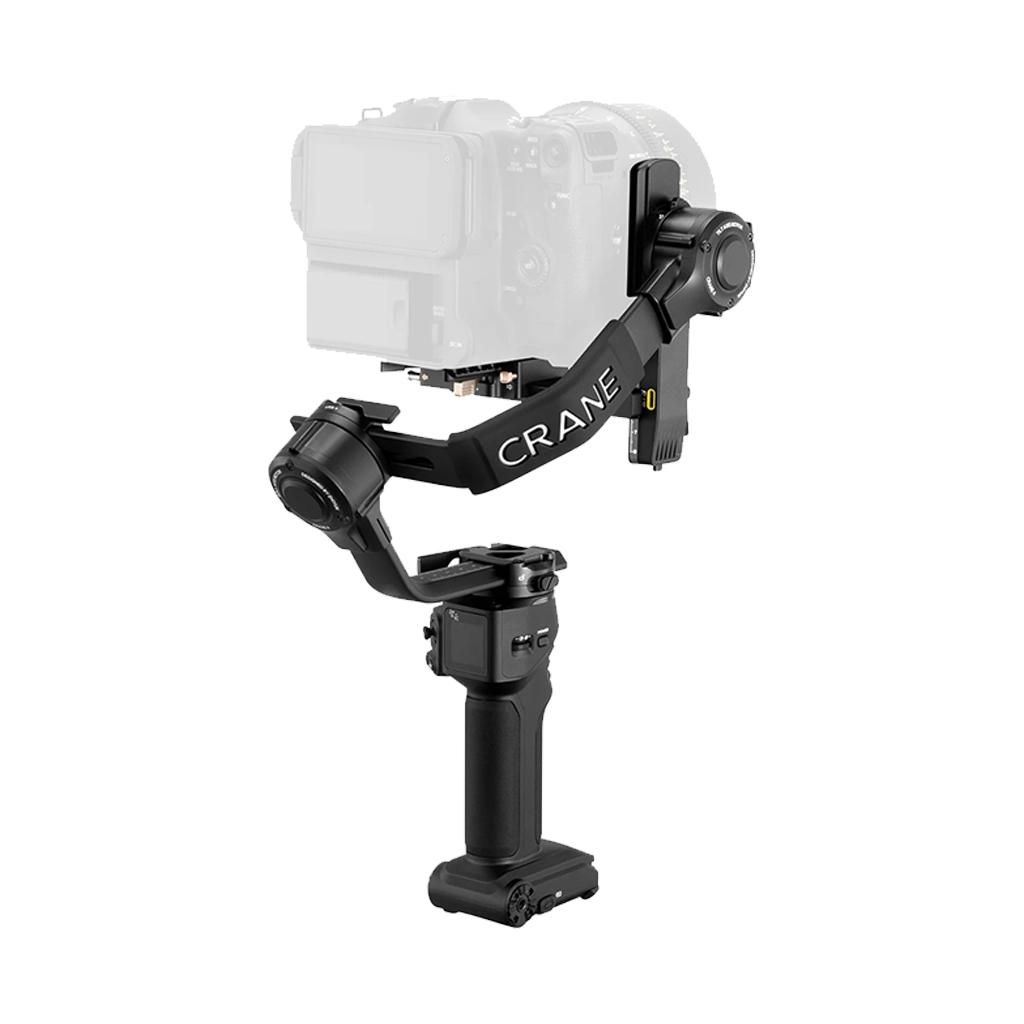

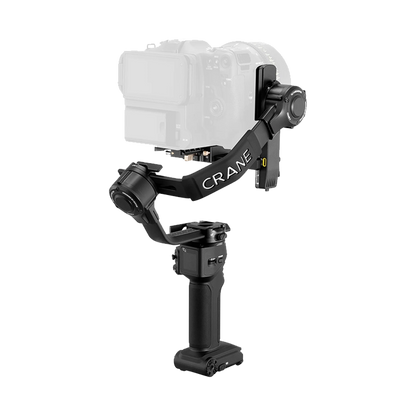

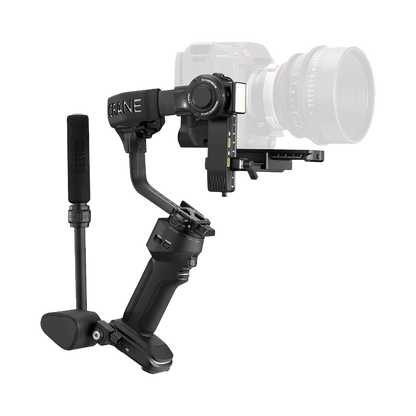

    Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo Kit

    R 19,895.00

    The Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo Kit is lightweight, stable, and capable of handling heavy payloads of up to 6kg. For enhanced grip and handling, you will find a wrist rest and handle.

    The Zhiyun CRANE4 3-Axis Handheld Gimbal Stabilizer offers onboard controls to control the 360° pan, 207° tilt, and 70° roll rotation. To aid in precise calibration, you will find indicator lights on each motor Dual-layer quick-release plates facilitate both landscape and portrait-oriented shooting with ease.

    Settings are easily controlled via the 1.22" touchscreen and Bluetooth-powered wireless shutter control. Furthermore, on the body, you will find a fill light with a 3200 lux output and adjustable colour temperature.

    Lightweight Design, Extended Arm Length

    With the Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo Kit you will find an extended arm and stronger motors which expand the gimbals and lens compatibility.
    The gimbal weighs just 1.67kg but has a 6kg load capacity capable of supporting cameras like the Canon EOS 5D Mark IV, Blackmagic Pocket Cinema Camera 6K Pro, Nikon Z8, Panasonic LUMIX S1H, and Sony a7S III, all with full-frame lenses attached.

    Sling Grip, Upgraded Wrist Rest

    The Zhiyun CRANE4 1/4"-20 mounting threads with rosettes on either side of the gimbal base allow you to attach the included slid grip. Rotate and adjust to hold the CRANE 4 in sling mode or two-handed mode.
    To reduce wrist strain and the most ergonomic position, the wrist rest can be attached to the unused rosette.

    Dual-Layer Quick Release, Lens Support

    Mount your camera of choice on the camera quick-release plate or upper quick-release plate for efficient integration and balancing with the dual-layer plates on the CRANE 4. The lower quick-release plate slides in the landscape orientation baseplate and offers a mounting point for the included lens support when using heftier full-frame lenses. The upper quick-release slides easily into the portrait orientation baseplate.

    Bluetooth 5.0 Shutter Control

    You will find camera cables included, but Bluetooth 5.0 is also available for wireless shutter control. With compatible cameras, the shutter can be controlled and toggle recording via the onboard controls and touchscreen.

    Powerful, Bright Fill Light

    The Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo further features a built-in fill light to easily light up subjects thanks to the 3200 lux brightness, with a CRI rating of 95+ you have accurate colour reproduction. Adjust the colour temperature of the light from 2700 to 5500K with the onboard control wheel.
    The fill light also comes with a fill light diffuser with which the brightness of the light can be softened as needed.

    1.22" Color Touchscreen, Onboard Controls

    With the touchscreen and controls you are able to toggle between modes like Pan Follow Mode, Lock Mode, POV Mode, Follow Mode, Go Mode, Vortex Mode, and Portrait Mode.
    Panorama, Timelapse, and Motionlapse are some of the other shooting features available. You can also check the balance status of each axis in real-time, and Auto-Calibrate after the rig is fully balanced.
    Set the motor torque, smoothness, follow speed and joystick speed of the gimbal. Customize the function of the trigger button and front dial to toggle settings or modes of your choice.

    ZY Play App

    It is also possible to remotely control the gimbal from your iOS or Android device with the ZY Play App. Features of the app include virtual joystick control, photo and video control, motion sensor control, timelapse, panorama, and firmware upgrades. The gimbal's embedded Bluetooth technology facilitates the app connection.

    All-Day Production

    The Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer features four built-in 18650 batteries with a 2600mAh capacity. This battery offers a total runtime of up to 12 hours. The USB-C charging port supports PD fast charging to get you back up and running in just under two hours. The Crane4 can also be used while charging if needed..

    • Zhiyun CRANE 4 3-Axis Handheld Gimbal Stabilizer Combo Kit
    • Mini Tripod
    • Lower Quick Release Plate
    • Upper Quick Release Plate
    • Camera Quick Release Plate
    • Lens Support with Screw
    • Sling Grip
    • Wrist Rest
    • USB-C to Sony Multi Control Cable
    • USB-C to Mini-USB Canon Control Cable
    • USB-C to Micro-USB Canon Control Cable
    • USB-C to USB-C Panasonic Control Cable
    • USB-C Charging Cable
    • Fill Light Diffuser
    • 3 x 1/4"-20 Screw
    • 3/8"-16 Screw
    • Allen Key
    • Carrying Case

    Gimbal
    Load Capacity
    6 kg
    Number of Axes
    3-Axis (Pitch (Tilt), Roll, Yaw (Pan))
    Rotation Range
    Controllable Range
    Yaw (Pan): 360° Unlimited
    Roll: 70° (-35 to 35°)
    Pitch (Tilt): 207° (-71 to 136°)
    Mechanical Range
    Yaw (Pan): 360°
    Roll: 322° (-251 to 71°)
    Pitch (Tilt): 214° (-72 to 142°)
    Compatibility
    Camera Control
    On Compatible Models
    Camera Mounting Screw
    3 x 1/4"-20 Male
    Connectivity
    Inputs/Outputs
    1 x USB-C (Power / Firmware Updates)
    1 x USB-C (Control / Video)
    2 x USB-C (Control)
    Wireless Frequency
    2.4 GHz
    Wireless Protocol
    Bluetooth 5.0
    Mobile App Compatible
    Yes: Android & iOS
    App Name: ZY Play
    Functionality: Adjust Settings, Firmware Update, Remote Control, Setup
    Battery
    Battery Type
    4 x 18650
    Battery Capacity
    2600 mAh
    Battery Runtime
    12 Hours
    Battery Charging Time
    1.5 Hours
    Power
    Operating Voltage
    11.0 to 16.8 VDC
    Operating Current
    200 to 14500 mA
    Environmental
    Operating Temperature
    -10 to 25°C
    General
    Display Type
    Fixed Touchscreen LCD
    Mounting
    4 x 1/4"-20 Female
    Dimensions
    340 x 280 x 70 mm
    Weight
    1.67 kg (without Tripod)
