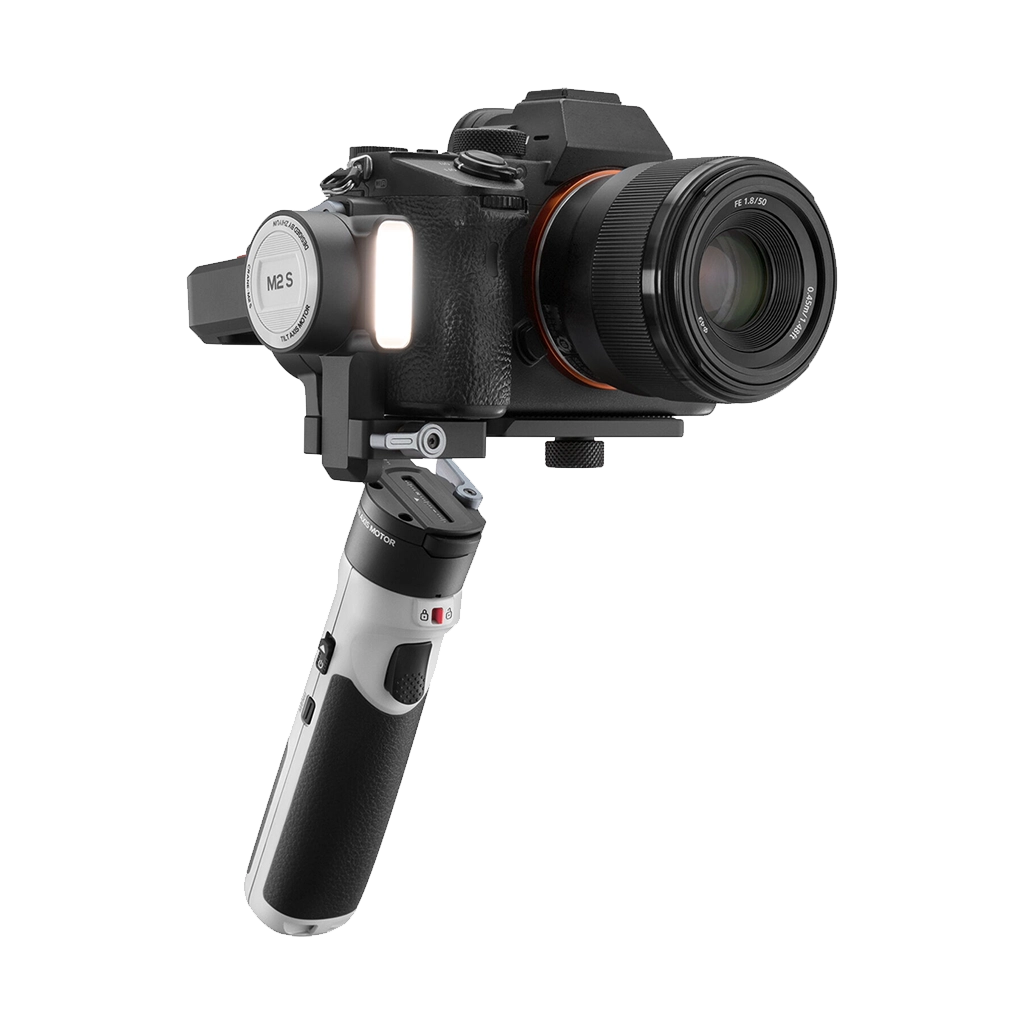

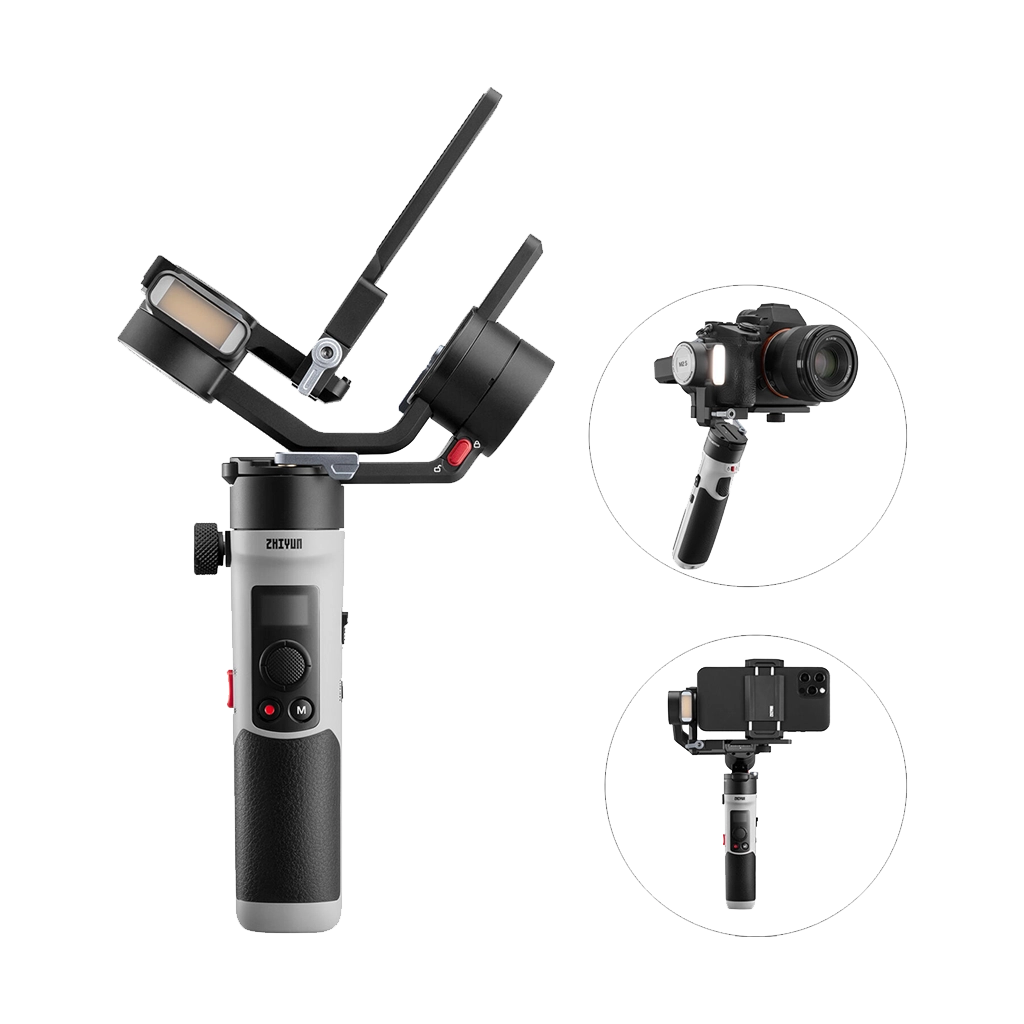

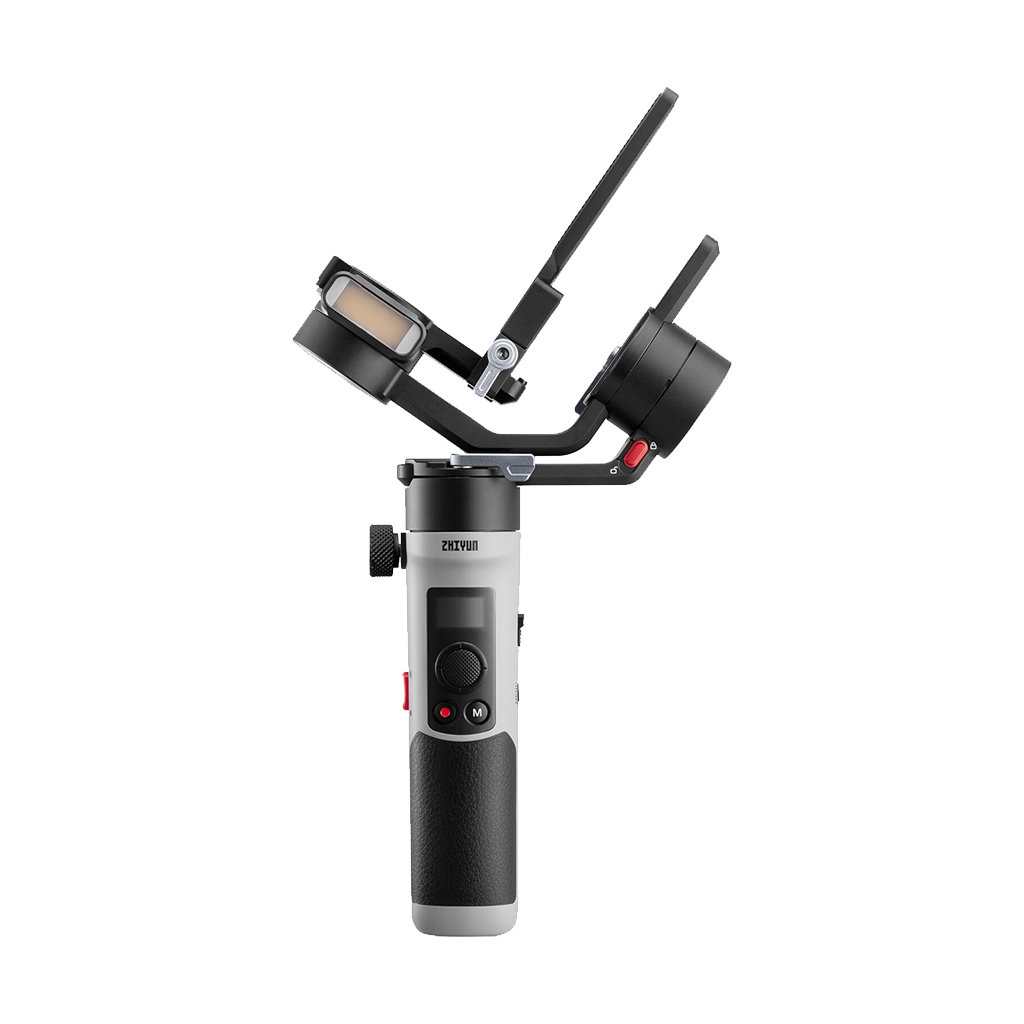

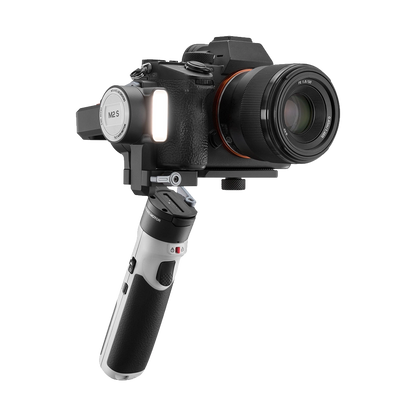

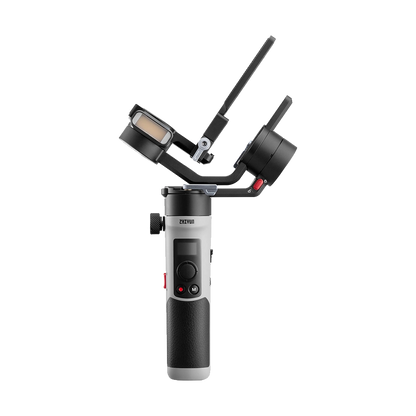

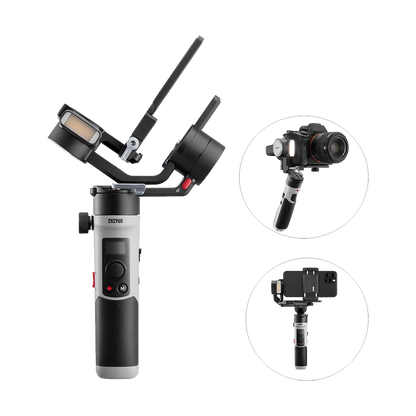

Zhiyun-Tech CRANE-M2 S 3-Axis Handheld Gimbal Stabilizer
TAJZCRANE-M2S
Couldn't load pickup availability
SHORT DESCRIPTION
SHORT DESCRIPTION
The Zhiyun-Tech CRANE-M2 S 3-Axis Handheld Gimbal Stabilizer is packed with all the great features of the predecessor. Additionally, it features a longer runtime, more functionality, a higher maximum load capacity, PD fast charging, an smaller grip, Bluetooth 5 supported, a built-in LED light, as well as a redesigned quick-release plate.
The Zhiyun-Tech CRANE-M2S offers six modes of operation, including POV and Vortex modes. In these modes 360‚° pan, 320‚° tilt and 320‚° roll rotation. Capable of a runtime of up to 10.5 hours on a single charge using a built-in battery.
Over a wired connection, the gimbal is able to power a supported camera and control its zoom, shutter, and video starts/stop functions. The gimbal movements can also be controlled using the free download ZY Play mobile app for iOS and Android. This provides remote control over many functions including time-lapse, panorama, and slow-motion capture.
Furthermore, a totally redesigned quick-release plate allows you to secure and release a camera at the push of a button. You will also find a built infill light beside the camera plate with a CRI of 90+, 1000 Lumens, as well as five brightness levels. There are also four interchangeable filters included enabling you to change the colour temperature.
Note: You will require an additional mounting accessory for attaching action cameras.
Key Features
- Compact, more lightweight design for compact cameras, smartphones, and action cams up to 1kg (an action cam mount is sold separately)
- 360° pan, 320° tilt, and 320° roll rotation
- Built-in LED light with filter kit
- 10.5-hour runtime on a built-in battery
- Built-in Wi-Fi and Bluetooth 5
- PD fast charging
- Wired camera control, power
- ZY Play iOS/Android app
- Special app features such as time-lapse, panorama, and slow-motion capture
- OLED display
- One-button quick release camera mounting system
- Scale marks and memory locks for balancing
- Mini tripod and other accessories included
Six Modes of Operation
PF Mode
The camera pans you to turn the gimbal left and right. This feature is useful for all hyper-lapse capture and traveller footage.
F Mode
In F Mode the camera will follow the gimbal's movements.
L Mode
Using L Mode you are able to lock the direction of the gimbal, ensuring you do not miss a shot in any situation.
POV Mode
The Zhiyun-Tech CRANE M2S 3-Axis Handheld Gimbal allows for 360° synchronous movement on all three axes.
In POV Mode the camera will be locked in one position regardless of the amount of movement on the gimbal itself, this allows for true POV shots where the camera will not level automatically.
Vortex Mode
Vortex Mode enables you to create cinematic 360° barrel shots in all dimensions.
Go Mode
With the Zhiyun-Tech CRANE M2 S 3-Axis Handheld Gimbal, you are able to create fast-moving and dramatic shots with fast pan and tilt motions.
- Zhiyun-Tech CRANE-M2 S 3-Axis Handheld Gimbal
- Stabilizer
- Quick Release Plate
- Mini Tripod
- 4 x Light Filter
- Micro-USB to USB Type-C Cable
- USB Type-C to Type-C Cable
- USB Type-C to Type-A Cable
Gimbal
| Number of Axes | 3-Axis (Pitch, Roll, Yaw) |
| Rotation Range | Yaw (Pan): 360° Pitch (Tilt): 320° Roll: 320° |
| Load Capacity | 998 g |
Connectivity
| Inputs/Outputs | 1 x USB Type-C (Power) Input 1 x USB Type-C (Power / Control) Output |
| Wireless Frequency | 2.4 GHz |
| Wireless Protocol | Bluetooth 5.0, Wi-Fi (Unspecified Type) |
Battery
| Battery Type | 1 x Built-In |
| Capacity (mAh) | 1150 mAh |
| Battery Runtime | 10.5 Hours |
| Battery Charging Time | 1.5 Hours |
Power
| Operating Voltage | 9.6 to 12.6 VDC |
| Operating Current | 135 to 4000 mA |
Environmental
| Operating Temperature | -10 to 45°C |
General
| Dimensions | 240 x 150 x 68 mm |
| Weight | 549 g |
