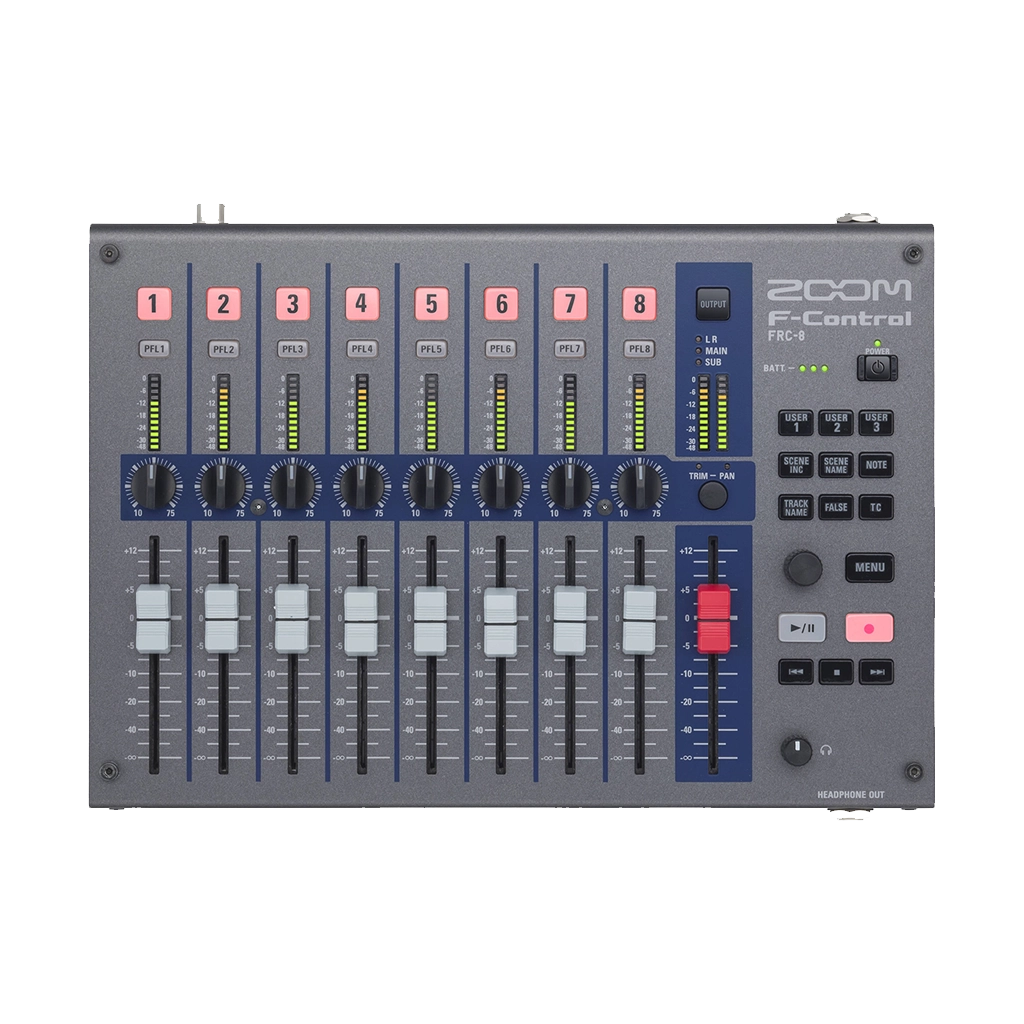

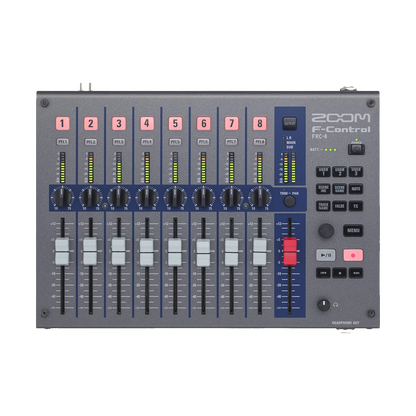

Zoom F-Control for F8 and F4 Multitrack Field Recorders
Choose PayGate at checkout for MobiCred Payments.
- For Location-Sound Recordists
- 9 Faders (8 Channel + 1 Master)
- 1/4" Headphone Jack
- USB Connection and Keyboard Input
- Trim, Pan, Track-Arming Controls
- 12-Segment LED Meters
- Track Scene Edit Buttons
- Battery or DC Power
- USB Bus Power for F4 Only
- Includes Batteries, USB and Audio Cables
Orms Bellville
Orms Cape Town
Zoom F-Control for F8 and F4 Multitrack Field Recorders
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- For Location-Sound Recordists
- 9 Faders (8 Channel + 1 Master)
- 1/4" Headphone Jack
- USB Connection and Keyboard Input
- Trim, Pan, Track-Arming Controls
- 12-Segment LED Meters
- Track Scene Edit Buttons
- Battery or DC Power
- USB Bus Power for F4 Only
- Includes Batteries, USB and Audio Cables
Choose PayGate at checkout for MobiCred Payments.
- For Location-Sound Recordists
- 9 Faders (8 Channel + 1 Master)
- 1/4" Headphone Jack
- USB Connection and Keyboard Input
- Trim, Pan, Track-Arming Controls
- 12-Segment LED Meters
- Track Scene Edit Buttons
- Battery or DC Power
- USB Bus Power for F4 Only
- Includes Batteries, USB and Audio Cables
Have complete control with the hands-on F-Control from Zoom over your recording experience by maximising sound and mixing for more creativity by simply connecting it to your Zoom F8, F8n or F4 Multitrack Field Recorders with a single USB cable. It allows you to go out anywhere by simply powering it up with four AA batteries that last up to 9 hours of operation or via the 4-pin HIROSE connector with an external battery pack and also features a metal chassis construction for the toughest productions.
- 9 faders (eight + Master), each 60mm
- 1/4" Headphone jack
- USB port for external keyboard connection
- Hands-on input/output control for trim, pan,
and track arming - 12-segment LED meters for monitoring channel
and output levels - Dedicated time code buttons
- Track Scene edit buttons: Shortcut commands
to Track Name, Scene Increment, Scene Name,
Notes, and False Take screens - Power options: 4 x AA batteries, 4-pin HIROSE
connector with external battery pack, and USB
bus power via the F4 (not available with the F8) - Durable metal chassis
- Compatible with Zoom F8, F8n, and F4 MultiTrack
Field Recorders
- Zoom F-Control for F8 and F4 Multitrack Field Recorders
- 1.5 m Stereo Cable
- 1.5 m USB Cable
- 4 x AA Batteries
Zoom FRC-8 Specs
Controls | Faders: 9 x 2.4" / 60.0 mm Trim/Pan Knobs: 8 Active Track: 8 buttons Pre-Fade Listen: 8 User Buttons: 3 Dedicated Function Buttons: Scene Inc, Scene Name, Note, Track Name, False Take, and Time Code (TC) Transport Controls: Play/Pause, Rec, REW, Stop, FF Headphone Knob: Volume control Output Button: Toggles L/R, Main, and Sub Menu: Button and endless encoder |
Display & Indicators | Channels: 8 x 12-segment LED display Main Output: Stereo 12-segment LED display |

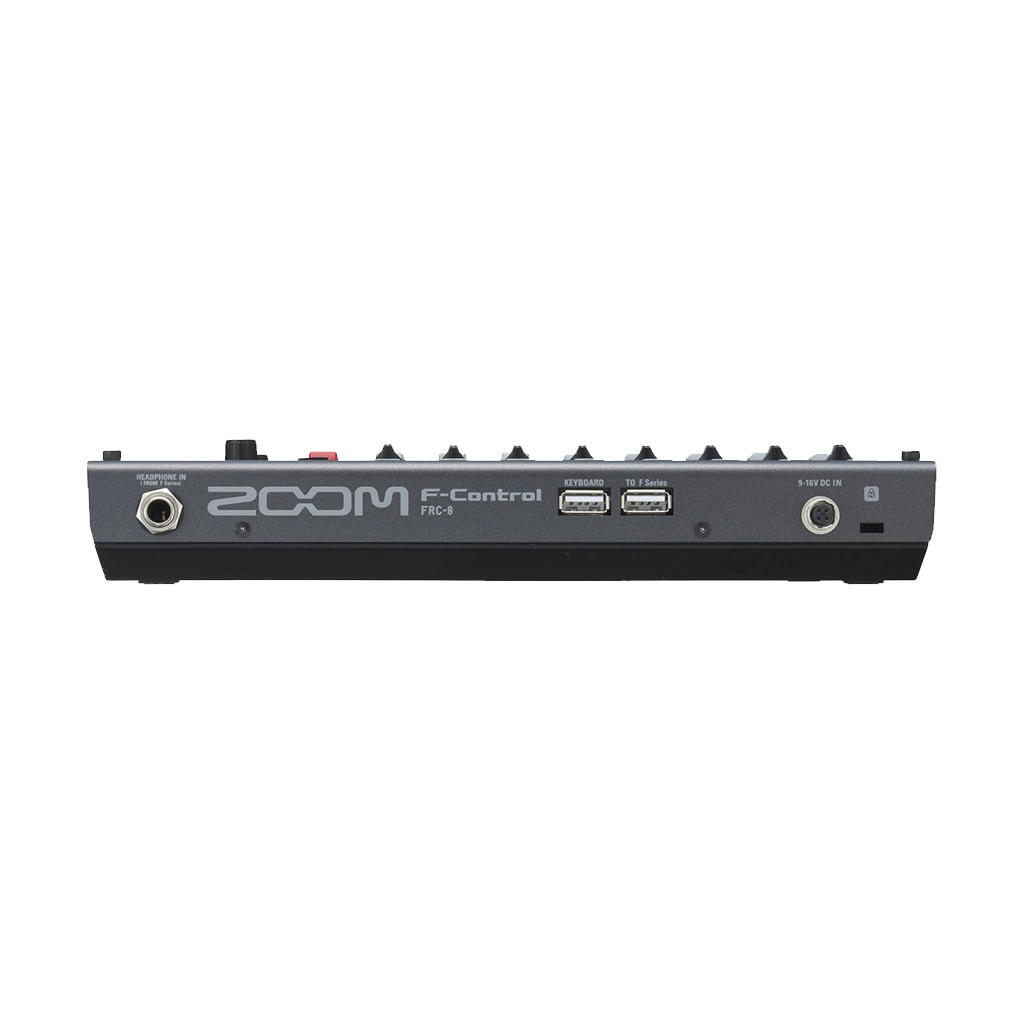

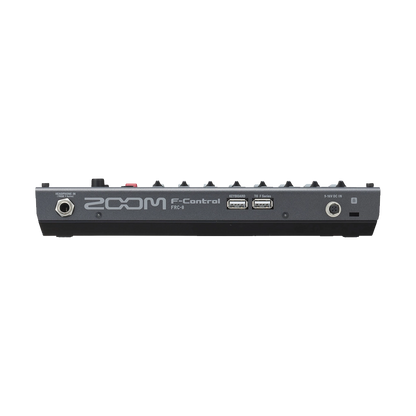

Connectors | To F Series: USB Type-A Keyboard: USB Type-A Headphone In: 1/4" / 6.35 mm unbalanced stereo phone Headphone Out: 1/4" / 6.35 mm unbalanced stereo phone 9-16 VDC IN: HIROSE HR10A-7R-4S 4-pin connector (1 pin: −, 4 pin: +) |
Power Requirements | 4 x AA size (LR6) batteries External Power Supply: 9-16 VDC |
Power Consumption | 2.5 W |
Battery Operation Time | When using 8 channels at once, LED Brightness = 60, without keyboard Alkaline Batteries: 8.5 hours or more NiMH (2450 mAh): 10 hours or more Lithium Batteries: 18 hours or more |
Dimensions (W x D x H) | 9.6 x 7.1 x 1.8" / 243.8 x 180.6 x 45.7 mm |
Weight | 1.0 kg (without batteries) |
