XYH-5 X/Y microphone capsule

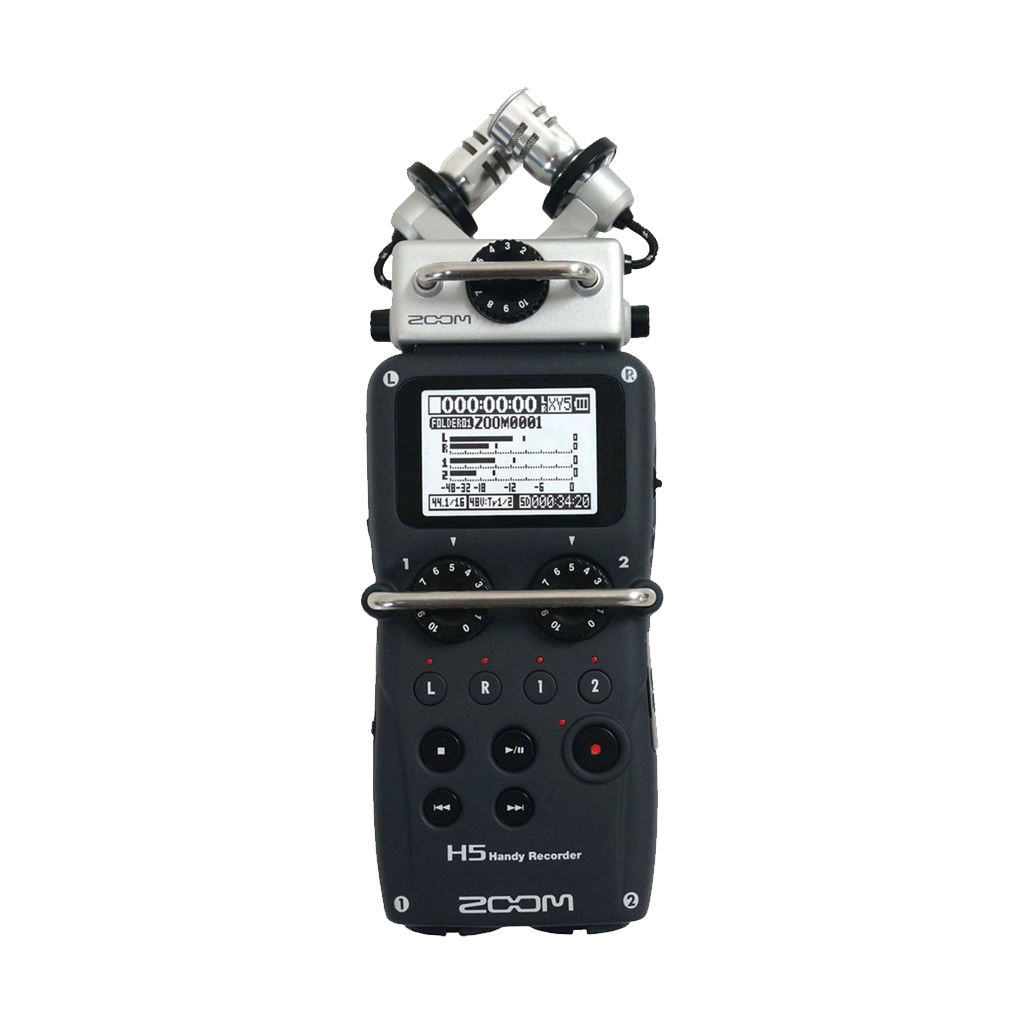

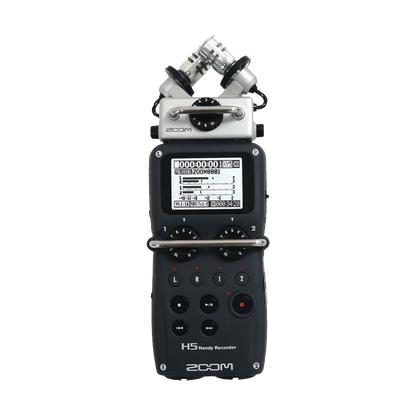

The XYH-5 X/Y microphone capsule provides two matched unidirectional condenser microphones set at a 90 degree angle. These mics are housed within an advanced rubberised shockmount for a maximum SPL of 140 dB SPL, making the microphone ideal for capturing loud sounds such as rock concerts.

Dual combo XLR/TRS inputs

The Zoom H5 features dual combo XLR/TRS inputs that can handle both mic- and line-level signals to allow you to connect external microphones, mixers, portable music players, effects processors, electronic keyboards, and even electric guitars equipped with active electronics. Each input has a dedicated gain control knob, which is located beneath a protective bar to prevent accidental movement during handling. The supplied XYH-5 X/Y capsule also provides a secondary input for connecting stereo mic- or line-level signal via a " mini phone jack. The H5 supports a +4 dB (professional) input level and utilizes the same preamps as the Zoom H6, ensuring great-sounding recordings in all environments.

Variety of output options

A Line Out with adjustable volume allows you to send a stereo audio output from the Zoom H5, to the mic input of a video camera, or other device, without the need for an attenuator cable. In addition, there's a separate headphone output with a dedicated volume control. You can use both outputs simultaneously to route audio to your DSLR while monitoring over headphones. There's also a built-in speaker for fast access playback, and a USB port which allows the H5 to be used as an audio interface for your computer, tablet or iPad.

Features at a glance

• Uses a system of interchangeable input capsules that can be swapped out as easily as the lens of a camera
• Includes detachable X/Y capsule (XYH-5) with extended signal capacity and shockmounted mics for reduced handling noise
• Compatible with all Zoom input capsules
• Four-track simultaneous recording
• Large backlit LCD display
• Records directly to SD and SDHC cards up to 32GB
• Up to 24-bit/96kHz audio in BWF-compliant WAV or a variety of MP3 formats
• Two mic/line inputs with XLR/TRS combo connectors, each with selectable phantom power and -20dB pad
• Analog-style gain controls for each input
• Protective "roll-bar" type covers prevent accidental movement of gain controls
• Plug-in power (2.5 volts)
• Built-in effects, including low-cut filtering, compression, and limiting
• Chromatic tuner and metronome
• Auto-record, Pre-record, and Backup-record functions mean that you'll never miss that perfect take
• MS decoding
• Multitrack to stereo internal mixdown
• Normalize, Divide, and Trim editing
• Voice memo and up to 99 marks per recording
• A/B loop playback
• Variable playback speed and variable pitch without affecting playback speed
• Multichannel and stereo USB audio interface for PC/Mac/iPad with loop back function
• Mountable to DSLR or camcorder with optional HS-01 Hot Shoe Mount adapter
• Uses two standard AA alkaline or NiMH rechargeable batteries
• Over 15 hours of operation with alkaline batteries

• Zoom H5 Handy Recorder
• XYH-5 Microphone Capsule
• Plastic Case
• 2 GB SD Card
• Foam Windscreen
• USB Cable
• Steinberg WaveLab LE Software (Download)
• Steinberg Cubase LE Software (Download)
