SmallRig L-Series/NP-F Battery Adapter Plate with LP-E6NH Dummy Battery Kit (Advanced Edition)
Choose PayGate at checkout for MobiCred Payments.
- L-Series Battery Plate
- 2.1mm DC to LP-E6NH Dummy Battery Cable
- 12 and 7.4 VDC Barrel Outputs
- 36W USB-C Input/Output Port
- Built-In Circuit Protection
- LED Status Indicators
- Mounts on Cage with 1/4"-20 Screw
Orms Bellville
Orms Cape Town
Orms Somerset West
Remote Warehouse (Available in 2 - 4 Business Days)
SmallRig L-Series/NP-F Battery Adapter Plate with LP-E6NH Dummy Battery Kit (Advanced Edition)
Orms Bellville
Ground Floor, Tygervalley Chambers 2, 27 Willie Van Schoor Avenue
Bellville
Bellville
Western Cape
7530
South Africa
Orms Cape Town
Shop 5, Roeland Square, Roeland Street
Gardens
Cape Town
Western Cape
8001
South Africa
Orms Somerset West
Shop 25, Waterstone Village Shopping Centre
Somerset West
Cape Town
Western Cape
7130
South Africa
Remote Warehouse (Available in 2 - 4 Business Days)
Upper Canterbury Street
Gardens
Cape Town
Western Cape
8001
South Africa
Choose options
Choose PayGate at checkout for MobiCred Payments.
- L-Series Battery Plate
- 2.1mm DC to LP-E6NH Dummy Battery Cable
- 12 and 7.4 VDC Barrel Outputs
- 36W USB-C Input/Output Port
- Built-In Circuit Protection
- LED Status Indicators
- Mounts on Cage with 1/4"-20 Screw
Choose PayGate at checkout for MobiCred Payments.
- L-Series Battery Plate
- 2.1mm DC to LP-E6NH Dummy Battery Cable
- 12 and 7.4 VDC Barrel Outputs
- 36W USB-C Input/Output Port
- Built-In Circuit Protection
- LED Status Indicators
- Mounts on Cage with 1/4"-20 Screw

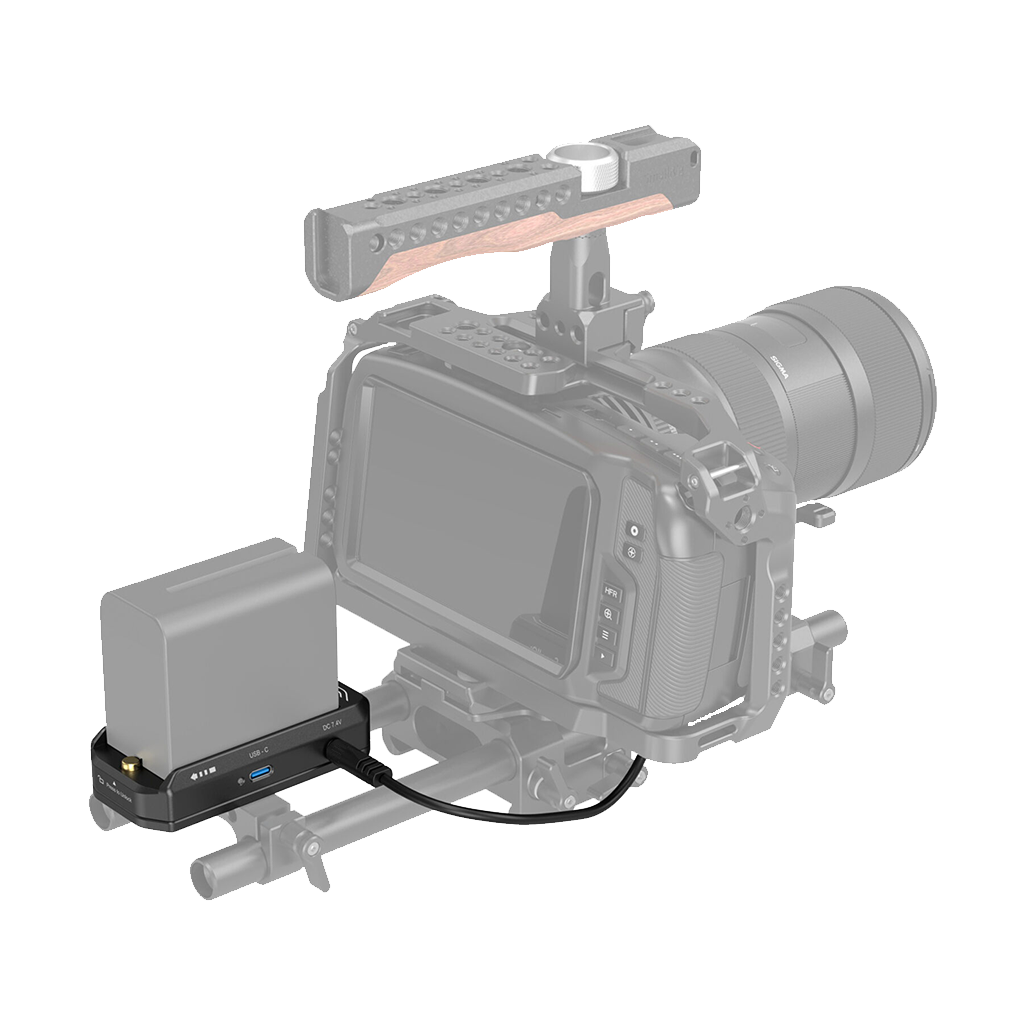

The SmallRig L-Series/NP-F Battery Adapter Plate with LP-E6NH Dummy Battery Kit (Advanced Edition) allows you to mount your L-series battery to your camera cage to power your compatible camera accepting the Canon LP-E6NH camera battery. Included in this kit, you will find L-series battery plate and a 2.1mm DC barrel to LP-E6NH dummy battery.

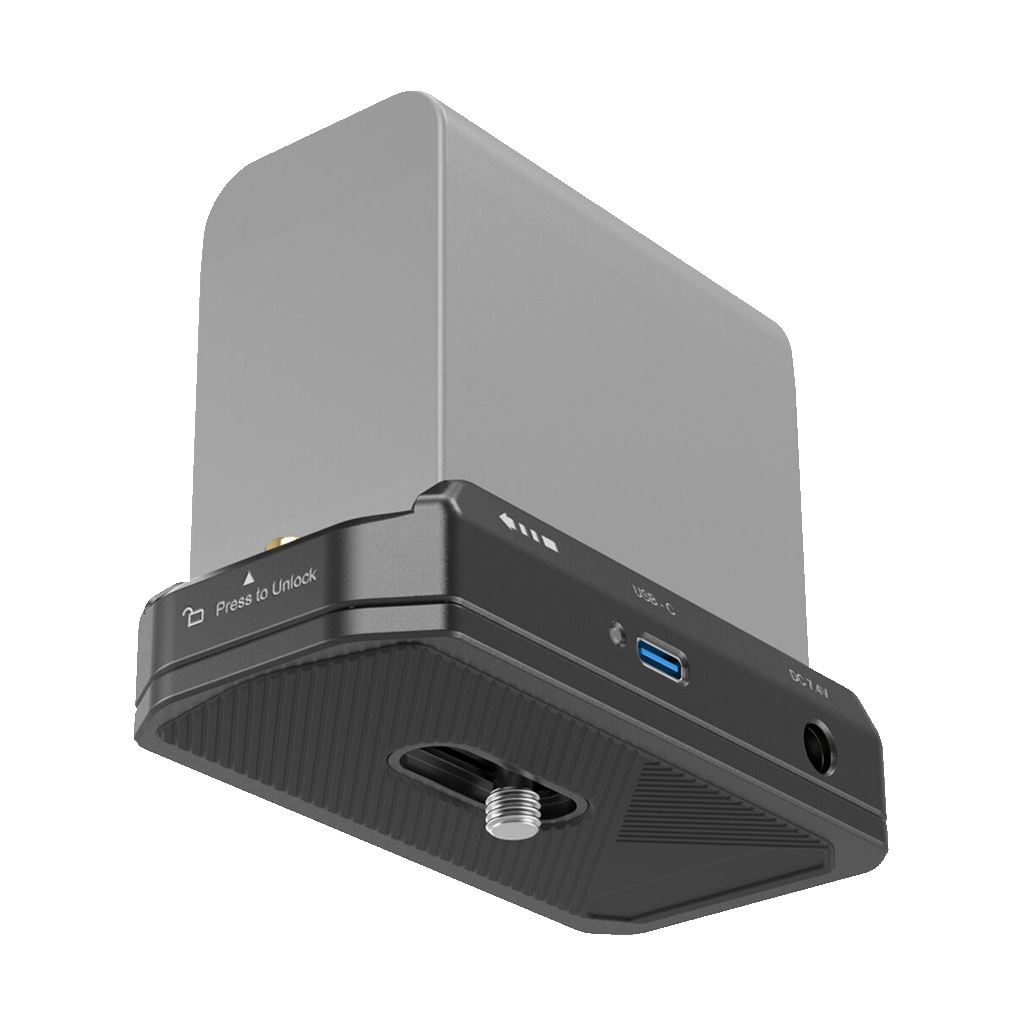

The battery plate coming with the SmallRig L-Series/NP-F Battery Adapter Plate with LP-E6NH Dummy Battery Kit (Advanced Edition) accepts a separately available high-capacity Sony L-series/NP-F type battery to provide up to 12V power to your camera. The plate mounts to the cage using the built-in 1/4"-20 thumbscrew. On the side of the plate, you will find a power button and battery status LED indicator.

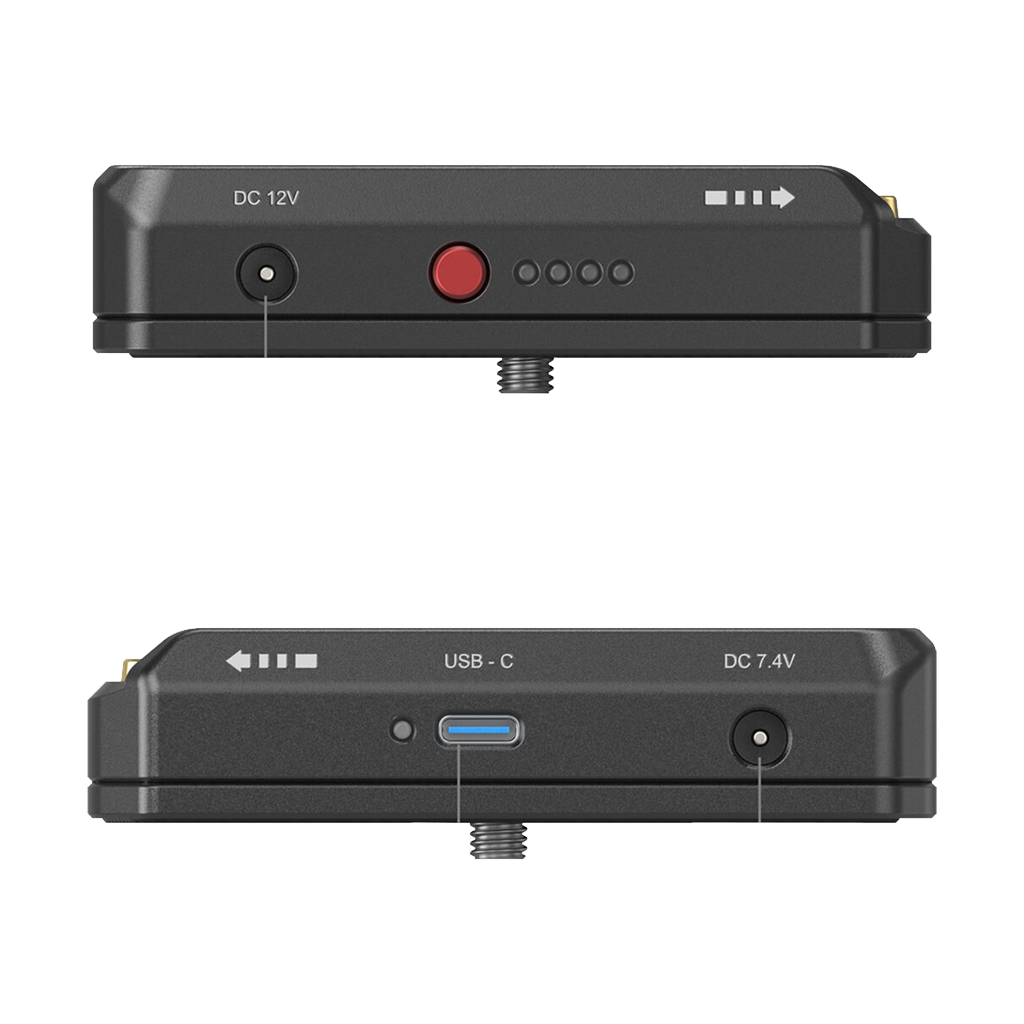

The 36W input/output USB-C port can power a camera or accessory, and it can also be used to charge the mounted battery. You will also find a 12 and 7.4V battery output that is capable of powering the camera or accessory using the included dummy battery or a separately available cable or adapter.
Compatibility
NP-F Battery Adapter Mount Plate
- Sony NP-F/L-series battery
LP-E6NH Dummy Battery Power Cable
Cameras and accessories powered using an LP-E6NH battery, including but not limited to:
- Canon EOS 5D Mark II/III/IV | 6D/6D Mark II | 7D/7D Mark II | 60D/60Da | 70D | 80D | 90D | XC10 | XC15 | 5DS/5DSR | R | R5/R5C | R6/R6 Mark II | R7
- Blackmagic Pocket Cinema Camera 4K/6K/6K Pro
Quick Features
- Compatible with NP-F type/L-series batteries, paired with DC to LP-E6NH dummy battery power cable, providing external power supply for Canon EOS R5/R5C, Blackmagic Pocket Cinema Camera 4K/6K/6K Pro, and various mirrorless cameras
- Aluminum and gold-plated electrical contacts make it more durable and conductive
- Allows to access two devices with 7.4 and 12 VDC dual output Maximum DC and USB-C output: 36W
- The USB-C interface supports bidirectional input and output with 36W power
- Features automatic wake-up and sleep modes to avoid damage to the camera
- Comes with USB-C mode and power indicators for easy viewing of charging and state of charge
- Each output port features short circuit and high current protection to ensure safety during use

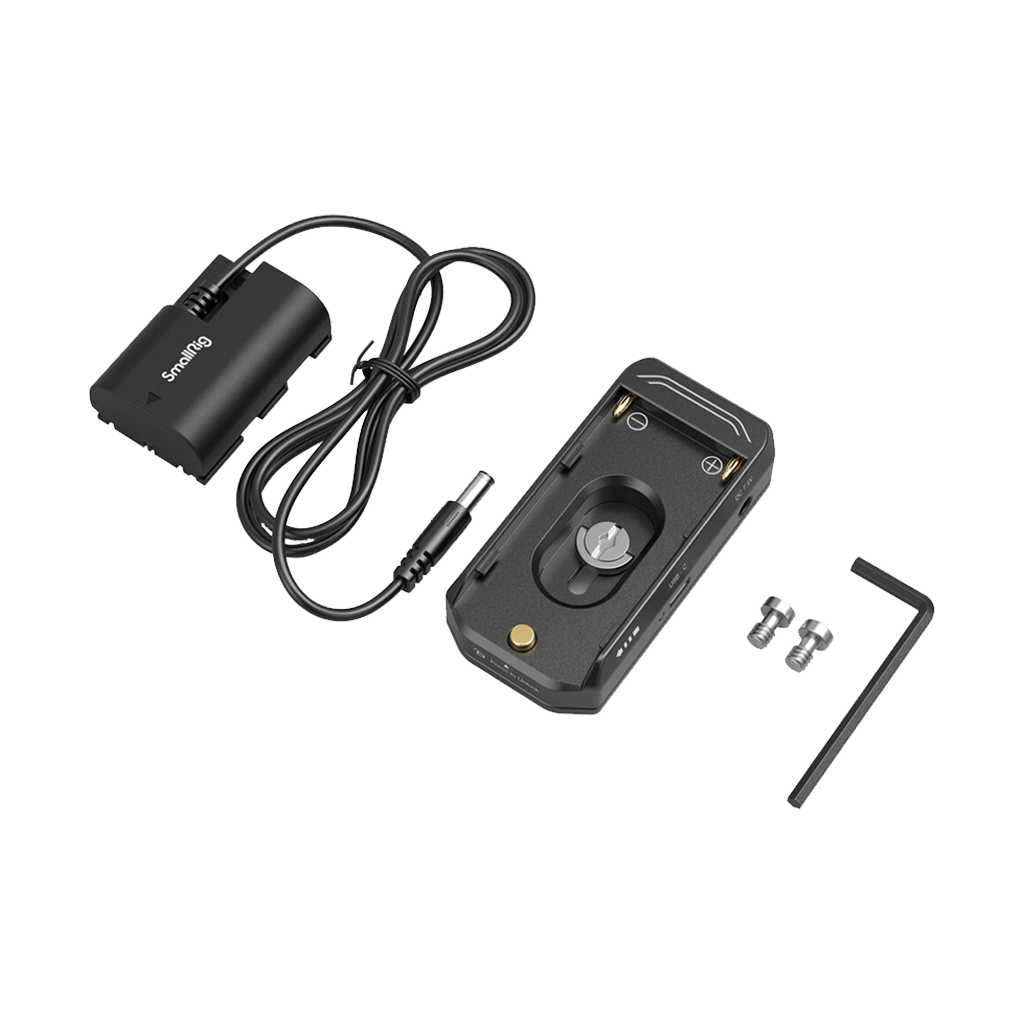

SmallRig L-Series/NP-F Battery Adapter Plate with LP-E6NH Dummy Battery Kit (Advanced Edition)
- SmallRig L-Series/NP-F Battery Adapter Plate (Advanced Edition)
- SmallRig 2.1mm DC to LP-E6NH Dummy Battery Cable
| Compatibility | |
| Plate Front / Battery Mount | |
| Plate Rear Mount | |
| Number of Battery Bays | |
| Accessory Mounting | |
| Indicator | |
| Inputs/Outputs | |
| Adapter / Cable | |
| Plate Material | |
| Dimensions | |
| Weight |
